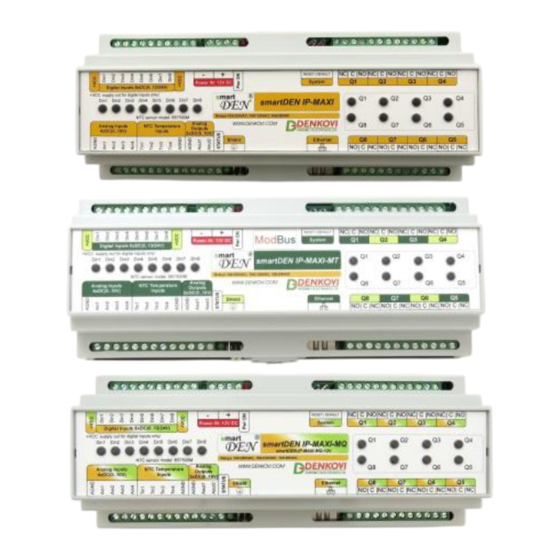

smartDEN IP-Maxi-XX User Manual
30 Oct 2023
smartDEN IP-Maxi-XX
Web-enabled Ethernet-based I/O Relay Modules
User Manual
Date: 30 Oct 2023
Device
Short Name
Integration Protocol
Firmware version
v1.27 / Jan 2022
smartDEN IP-Maxi
SNMPv2
v1.27 / Feb 2023
smartDEN IP-Maxi-MT
Modbus TCP
v1.26 / Jul 2021
smartDEN IP-Maxi-MQ
MQTT V3.1.1
- 1 -
