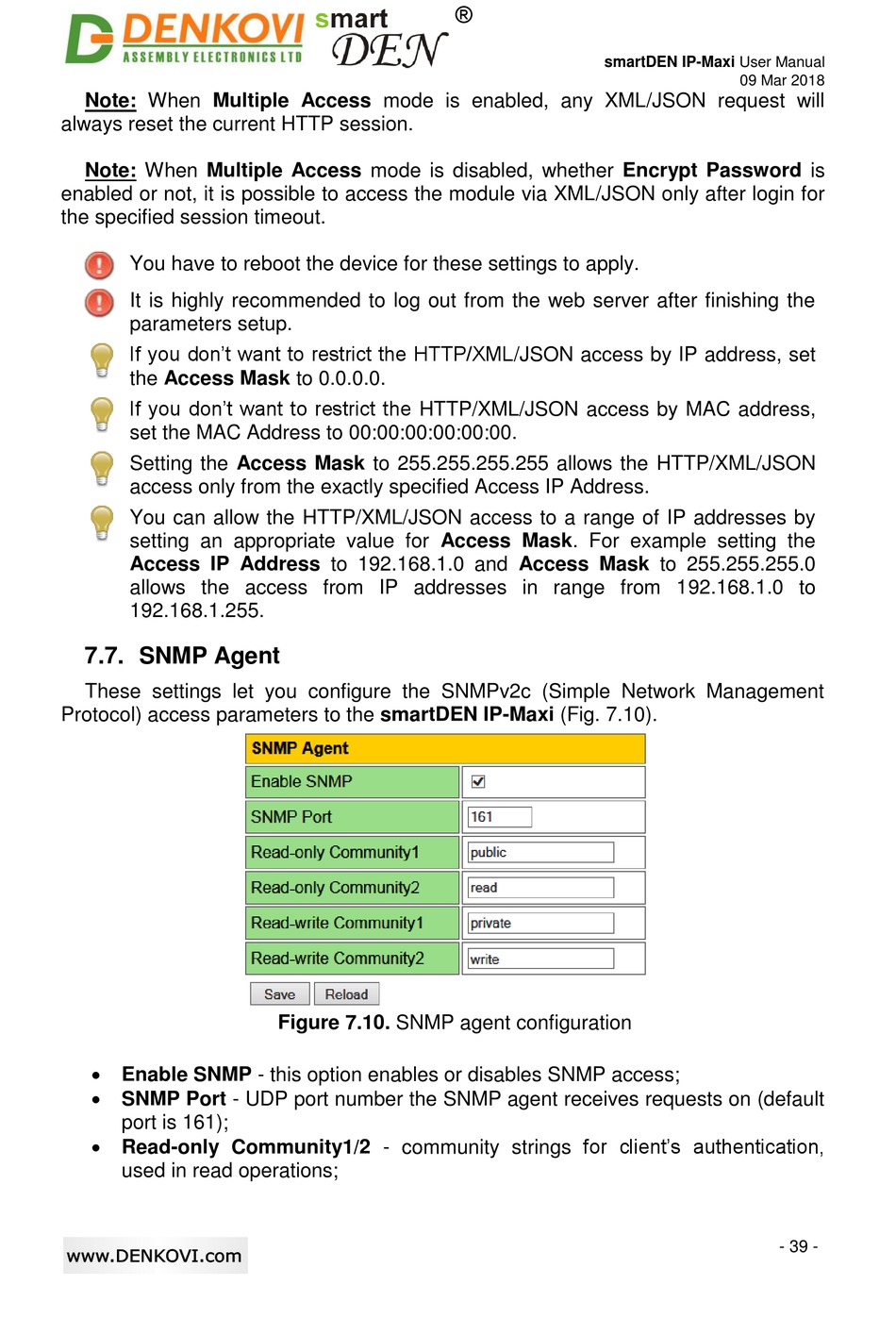

Denkovi smartDEN IP-Maxi User Manual page 39

Note: When Multiple Access mode is enabled, any XML/JSON request will
always reset the current HTTP session.
Note: When Multiple Access mode is disabled, whether Encrypt Password is
enabled or not, it is possible to access the module via XML/JSON only after login for
the specified session timeout.
You have to reboot the device for these settings to apply.
It is highly recommended to log out from the web server after finishing the
parameters setup.
If you don‟t want to restrict the HTTP/XML/JSON access by IP address, set
the Access Mask to 0.0.0.0.
If you don‟t want to restrict the HTTP/XML/JSON access by MAC address,
set the MAC Address to 00:00:00:00:00:00.
Setting the Access Mask to 255.255.255.255 allows the HTTP/XML/JSON
access only from the exactly specified Access IP Address.
You can allow the HTTP/XML/JSON access to a range of IP addresses by
setting an appropriate value for Access Mask. For example setting the
Access IP Address to 192.168.1.0 and Access Mask to 255.255.255.0
allows the access from IP addresses in range from 192.168.1.0 to
192.168.1.255.
7.7. SNMP Agent
These settings let you configure the SNMPv2c (Simple Network Management
Protocol) access parameters to the smartDEN IP-Maxi (Fig. 7.10).
 Enable SNMP - this option enables or disables SNMP access;
 SNMP Port - UDP port number the SNMP agent receives requests on (default
port is 161);
 Read-only Community1/2 - community strings for client‟s authentication,
used in read operations;
Figure 7.10. SNMP agent configuration
®
