7.13. Monitoring & Control
This page is used to monitor the states of the Digital and Analog Inputs as well as
to switch On/Off the Relays and set the values of Analog Outputs (Fig. 7.26).
A relay can be switched On/Off from the Monitoring & Control page only if it‟s
Working Mode="Multiple".
7.14. Week Schedule
This page configures the Week Schedule table for switching Relays On/Off at
specific times. You can add up to 30 items to the list. The top table of this page
allows you to define a new item, while the bottom table shows the already defined list
(Fig. 7.27).

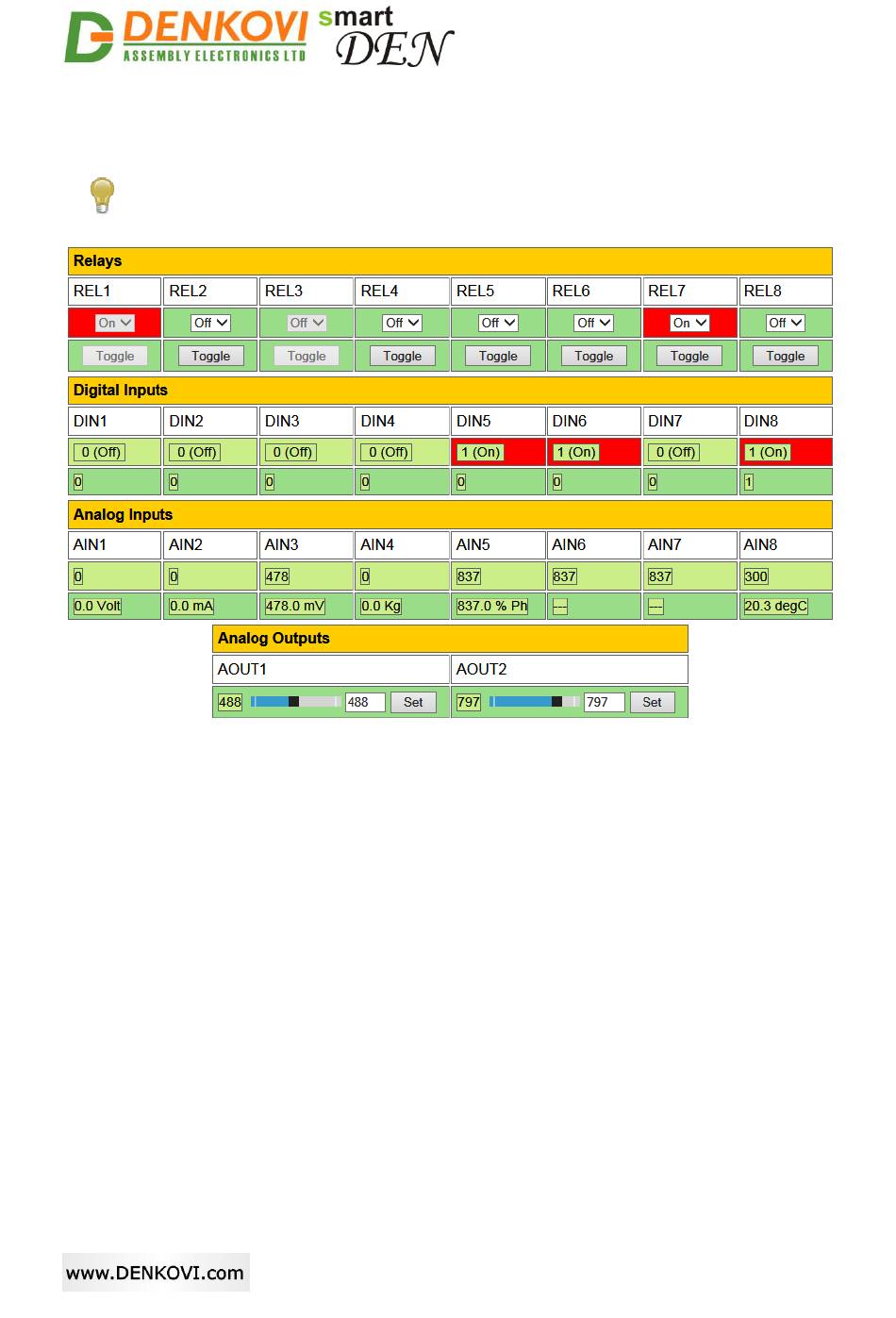

Figure 7.26. Monitoring & Control page
®
