 Relays - select a group of Relays that should be switched;
 State - define the state (On/Off) for the selected group of relays;
 Hour - time the group of relays will be switched at;
 WeekDays - select the days the defined switching should take place;
 Start Date (dd/mm/yyyy) - the start date for the Week Schedule.
Once you have defined a new item, click Add. This item will be added as a new
row in a Week Schedule table.
This feature allows you to turn specific Relays On/Off upon certain date and
time or weekday without the need of LAN connection between the computer
and the module.
A Relay can be included in Week Schedule only if it‟s Working
Mode="Multiple".
To delete an item, select it in Existing Items table and click the Delete
Selected button.
To set a new start date, click Update Start Date button.
The module has back-up supply source for the RTC in order to keep the
current date/time for several days during power off.
7.15. Logout
®

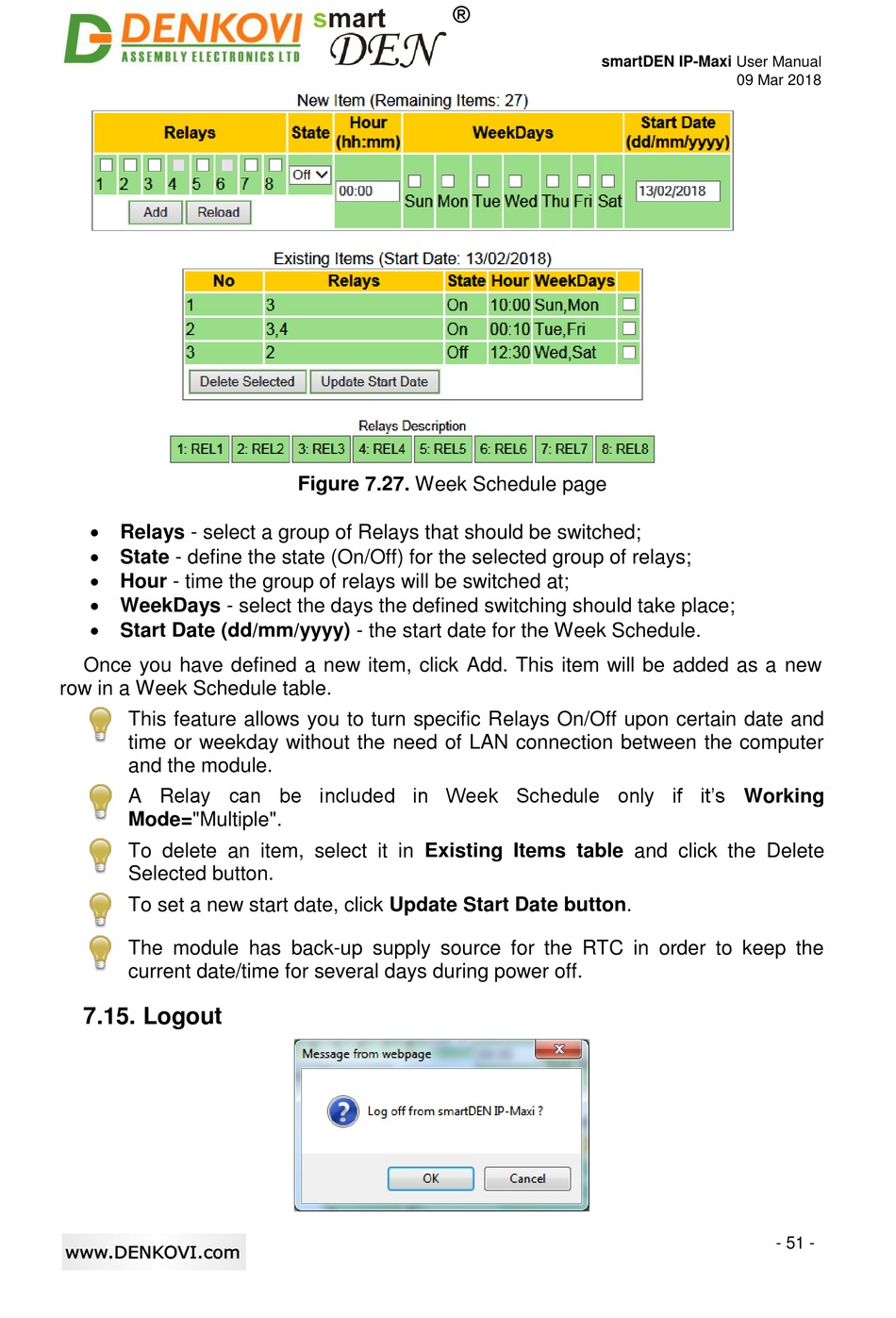

Figure 7.27. Week Schedule page
