Install Lock

6. Install the DL lock onto the door by aligning the two
posts on the front of the interface cylinder with the two
corresponding holes in the back of the DL lock. Lift the
tailpiece slightly to ensure the tailpiece enters the slot of
the interface cylinder.

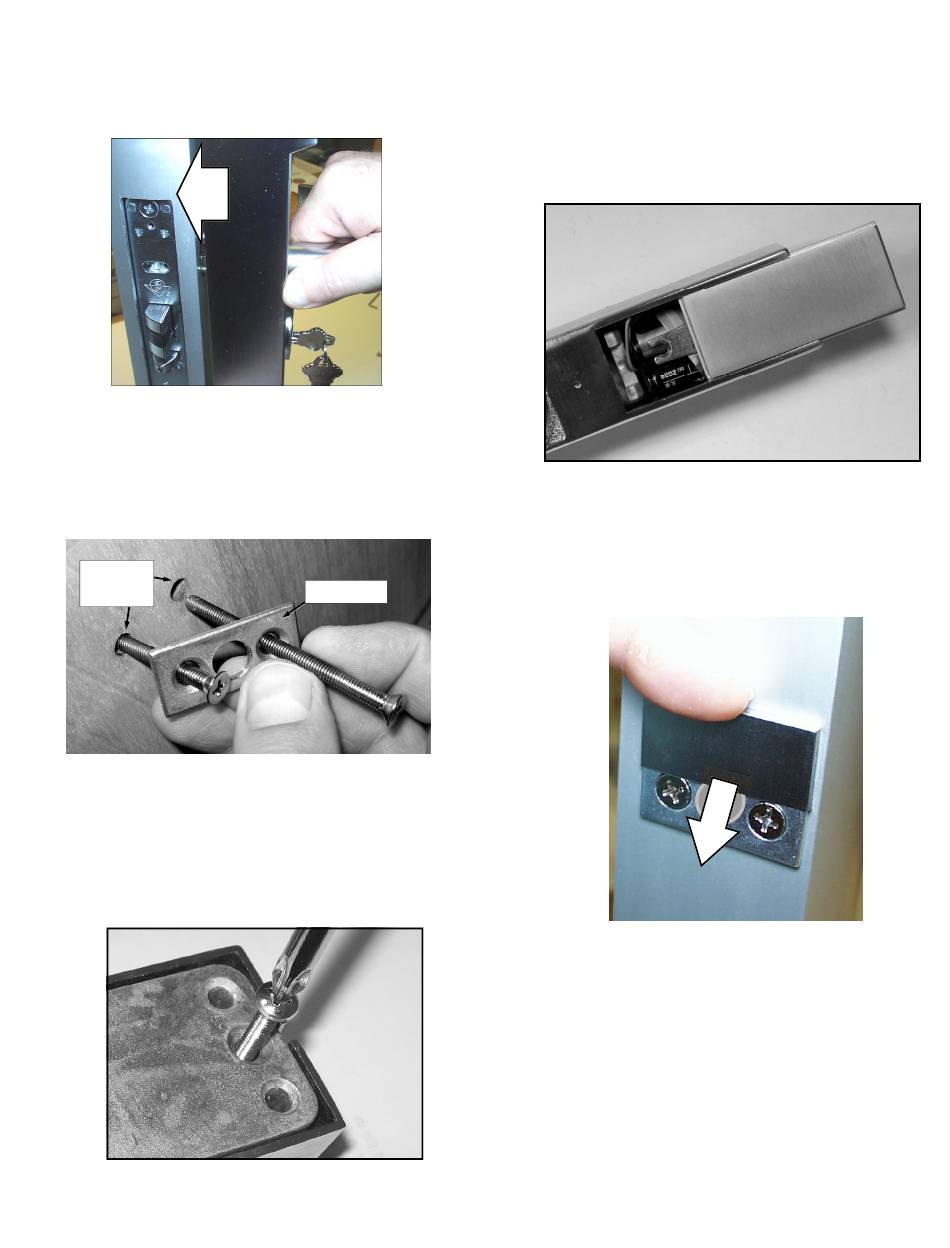

Fig. 6: Install lock onto the door
6a. Secure the DL lock to the door with four through-door
mounting screws and two door plates. Place a door plate
on top of a pair of mounting holes and loosely secure lock
from the inside of the door.
screws before final tightening. Do not over-tighten.
Door
Thru-Holes
Fig. 6a: Secure lock to door -- loosely at first

Connect Batteries

7. Loosen the #8-32 Phillips pan head screw located on
the rear side of the base plate at the bottom of the lock
(see Fig. 7). Turn counter-clockwise until the battery
cover slides off the housing.
screw.
Fig. 7: The Phillips screw on the rear side locks or un-
locks the battery cover. Do not remove screw.
6
Snug all four mounting
Door Plate
Do NOT remove the
7a. Plug in the battery connector and insert the battery pack
into the battery compartment. Neatly push all wiring
inside the compartment and on the side of the battery
pack. Holding battery in place, slide cover back on.
Secure the battery cover by tightening the #8-32 Phillips
pan head screw located on the rear side of the base
plate (access this screw from the 7/16" thru-hole drilled
in the door). Do not over tighten the screw.
Fig. 7a: Install the battery pack: Push all wires inside the battery
compartment and slide plate back on.
7b. Cover door plates with decorative plate covers by
sliding them from top to bottom on door plates.
Fig. 7b: Slide down to install decorative plate covers
FOR NEW INSTALLATIONS: Refer to the program-
ming manual (WI2258 or WI2264) for specific instruc-
tions for "First Time Startup" and "Change Factory
Master Code" before connecting the battery.
The lock must be powered up as instructed (and have
its factory Master Code changed) or erratic lock behav-
ior can result.
Test operation: See next page.
