Install Lock - Alarm Lock Networx DL1325NW Mounting Installation Instructions

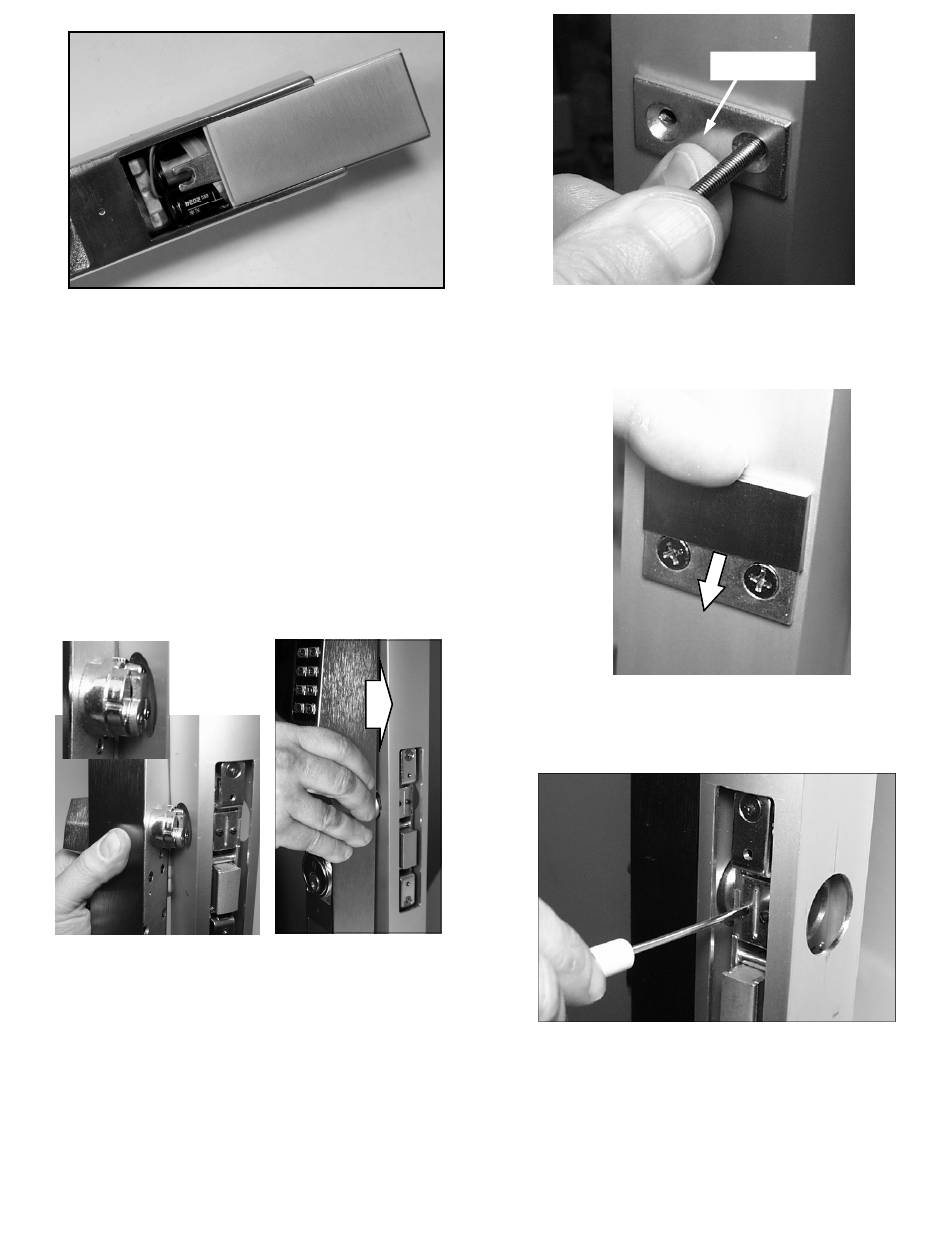

Fig. 4a: Install the battery pack: Push all wires inside the battery
compartment and slide plate back on.
FOR NEW INSTALLATIONS: Refer to the program-
ming manual (WI2258 or WI2264) for specific instruc-
tions for "First Time Startup" and "Change Factory
Master Code" before connecting the battery.
The lock must be powered up as instructed (and have
its factory Master Code changed) or erratic lock be-
havior can result.

INSTALL LOCK

5. Install the DL lock onto the door by aligning the four
tapped mounting holes in the back of the DL lock with the
four "through-bolting" holes that were drilled in the door in
step two.
Fig. 5: Install the DL lock onto the door
5a. Secure the DL lock to the door with four through-
door mounting screws and two door plates. Place a door
plate on top of a pair of mounting holes and loosely se-
cure lock from the inside of the door. Snug all four
mounting screws before final tightening. Do not over-
tighten.
Fig. 5a: Secure lock to door -- loosely at first
5b. Cover door plates with decorative plate covers by
sliding them from top to bottom on door plates.
Fig. 5b: Slide down to install decorative plate covers
5c. Secure interface cylinder to lock by tightening the
set screw.
Fig. 5c: Secure interface cylinder to lock
Important! If the interface cylinder is not parallel to
the door after tightening the set screw, then you must
verify that the original Adams Rite
nally installed correctly (installed square to the door).
Failure to ensure the interface cylinder is installed cor-
rectly could cause lock binding or improper operation of
the lock mechanism.
Door plate
®
lock body was origi-
5
