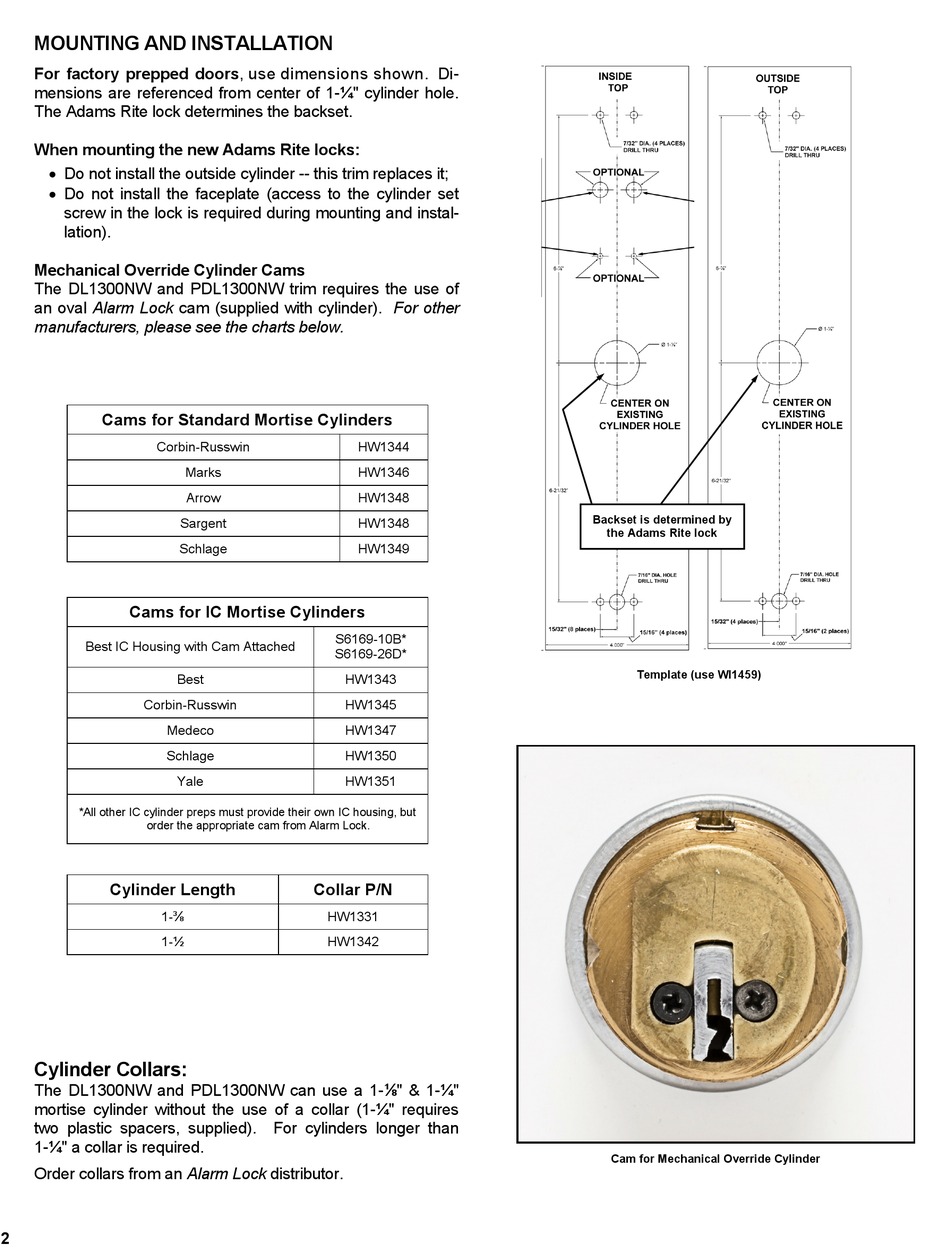

MOUNTING AND INSTALLATION

For factory prepped doors, use dimensions shown. Di-
mensions are referenced from center of 1-¼" cylinder hole.
The Adams Rite lock determines the backset.
When mounting the new Adams Rite locks:
 Do not install the outside cylinder -- this trim replaces it;
 Do not install the faceplate (access to the cylinder set
screw in the lock is required during mounting and instal-
lation).
Mechanical Override Cylinder Cams
The DL1300NW and PDL1300NW trim requires the use of
an oval Alarm Lock cam (supplied with cylinder). For other
manufacturers, please see the charts below.
Cams for Standard Mortise Cylinders
Corbin-Russwin
Schlage
Cams for IC Mortise Cylinders
Best IC Housing with Cam Attached
Best
Corbin-Russwin
Medeco
Schlage
Yale
*All other IC cylinder preps must provide their own IC housing, but
order the appropriate cam from Alarm Lock.
Cylinder Length
1-⅜
1-½
Cylinder Collars:
The DL1300NW and PDL1300NW can use a 1-⅛" & 1-¼"
mortise cylinder without the use of a collar (1-¼" requires
two plastic spacers, supplied). For cylinders longer than
1-¼" a collar is required.
Order collars from an Alarm Lock distributor.
2
HW1344
Marks HW1346
Arrow HW1348
Sargent HW1348
HW1349
S6169-10B*
S6169-26D*
HW1343
HW1345
HW1347
HW1350
HW1351
Collar P/N
HW1331
HW1342
Backset is determined by
the Adams Rite lock
Template (use WI1459)
Cam for Mechanical Override Cylinder
