Alarm Lock DL1300NW Mounting And Installation Instructions Manual page 5

5c. The interface cylinder must be centered and posi-
tioned flush with (or slightly below) the surface of the door
(see Fig. 5c).

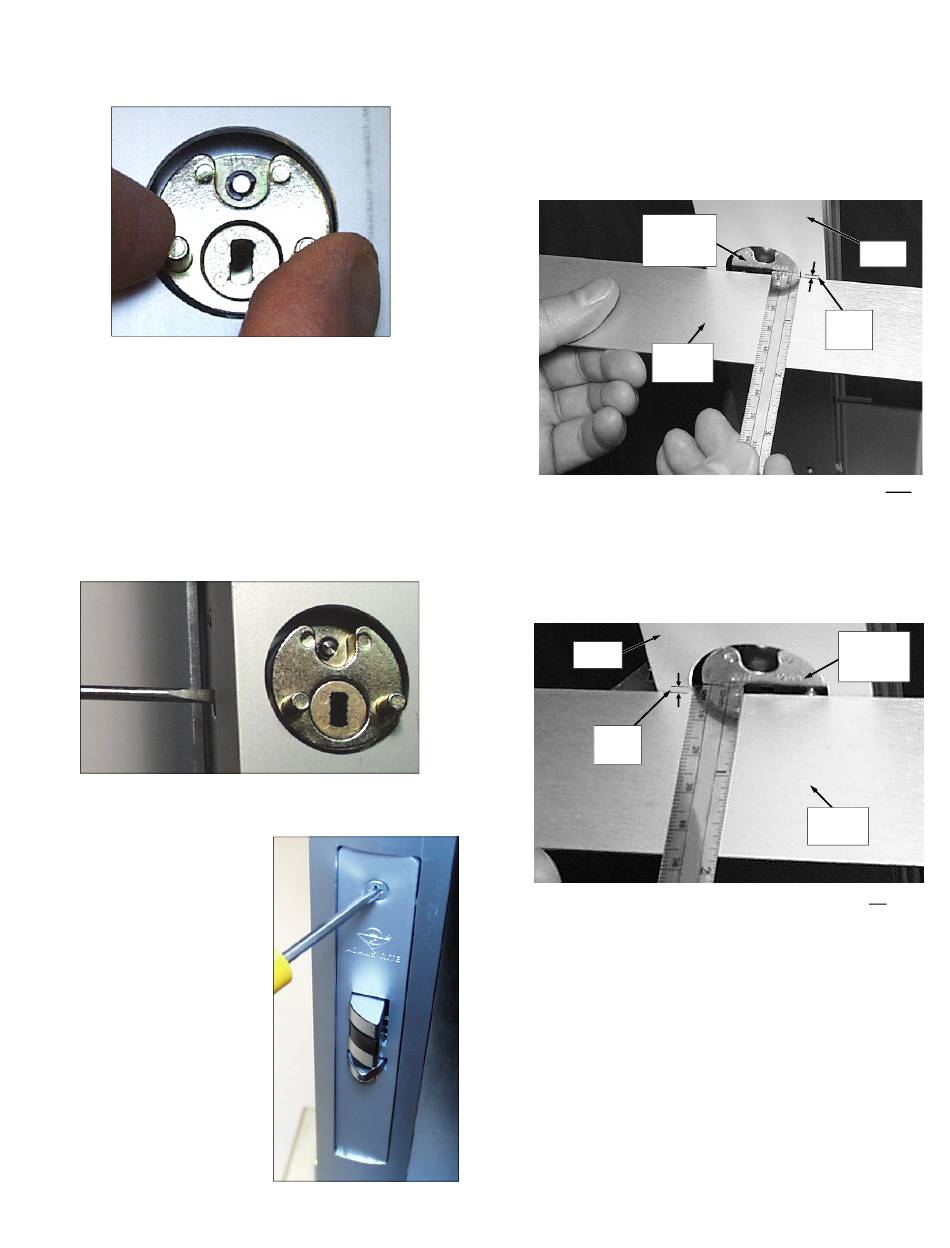

Fig. 5c: Position the interface cylinder
5d. With the interface cylinder HELD SECURELY in its
correct position, tighten the set screw, securing the
interface cylinder to the lock (see Fig. 5d).
Important! If the interface cylinder is not parallel to
the door after tightening the set screw, then you must
verify that the original Adams Rite
nally installed correctly (installed square to the door).
Failure to ensure the interface cylinder is installed cor-
rectly could cause lock binding or improper operation of
the lock mechanism.
Fig. 5d: Tighten the interface cylinder set screw
5e. Install the latch face plate.
®
lock body was origi-
Fig. 5e: Install the latch face plate
5f. Verify the face of the interface cylinder (" HW1824" )
is positioned parallel to the surface of the door.
With a straight edge flush against the surface of the
door as shown in the image below, place a small ruler
on the right face of the interface cylinder to measure
the distance between the face of the interface cylinder
and the surface of the door (the right "gap"). See Fig.
5f below.
Interface
Cylinder
(HW1824)
Straight
Edge
Fig. 5f: Measure right "gap": Place a small ruler against the right
side of the interface cylinder.
5g. Measure the left "gap" with the ruler on the left face of
the interface cylinder, as shown in Fig 5g, below:
Door
Left
"Gap"
Fig. 5g: Measure left "gap": Place a small ruler against the left side of
the interface cylinder.
The difference between the right and the left "gap" dis-
tances must not exceed 1/32".
If face of the lock body is not parallel to the surface of
the door and the difference between the left and right
"gap" measurements exceeds 1/32", adjust the posi-
tion of the Adams Rite
interface cylinder is parallel with the face of the door.
Door
Right
"Gap"
Interface
Cylinder
(HW1824)
Straight
Edge
®
lock body until the face of the
5
