Installation and Cabling

■General Instructions on Installation

○Applicable valve series
The EX180 series SI unit can be mounted on the following valve manifolds.
•Manifolds
SJ2000, SJ3000, S0700 series
*: Refer to the catalogues and operation manuals for details on the solenoid valves and manifolds.
•How to mount the manifold

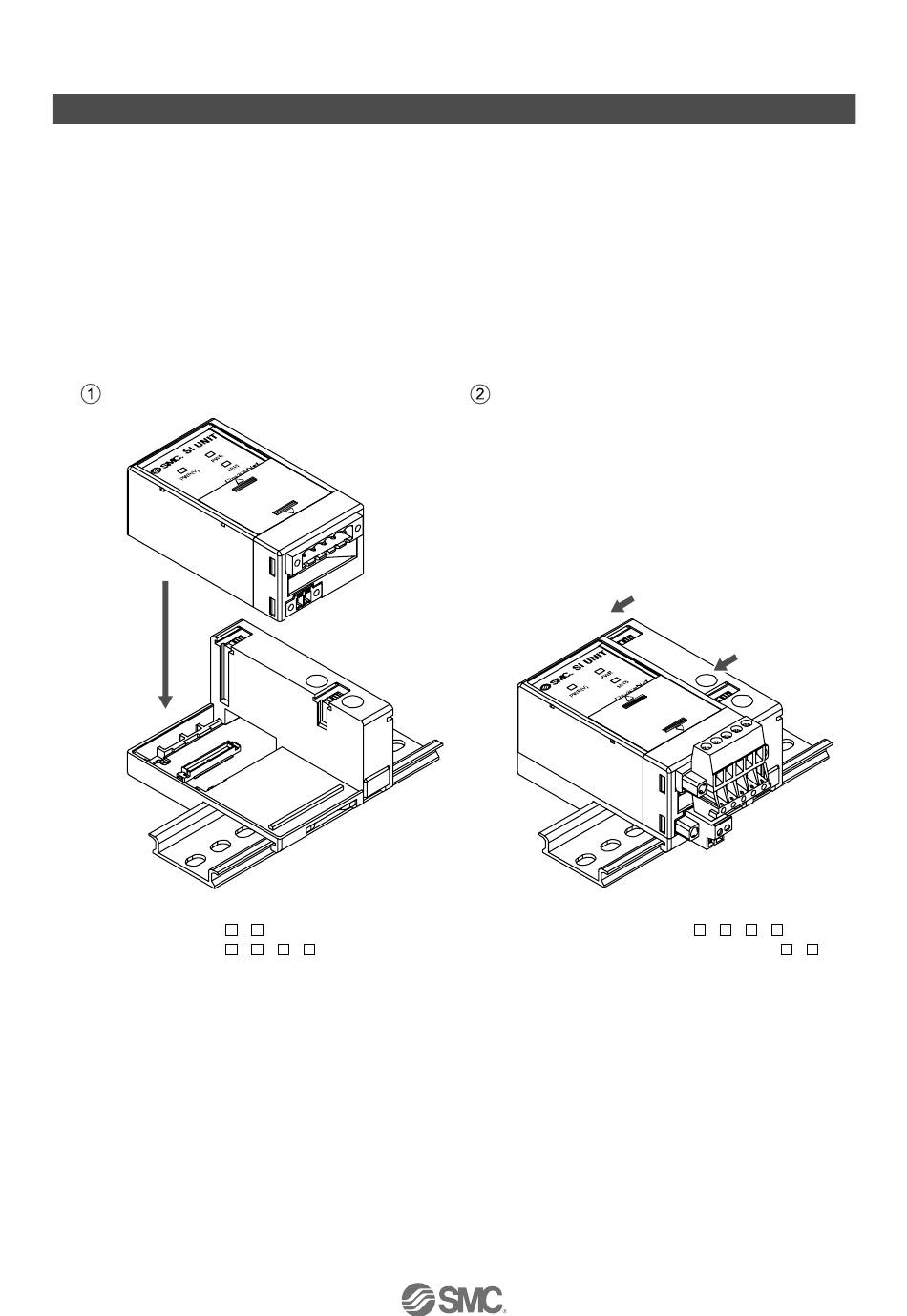

1. Mount the SI unit to the manifold so that the mounting guide of the SI unit case mates with the manifold
groove.
2. Secure the SI unit using the two sliding locks.
●Caution
The EX180-SDN1 /2
The EX180-SDN3 /4 /5 /6
can not mount on the valve manifold for the EX180-SDN3 /4 /5 /6 .
also can not mount on the valve manifold for the EX180-SDN1 /2 .
