Operating the Logger

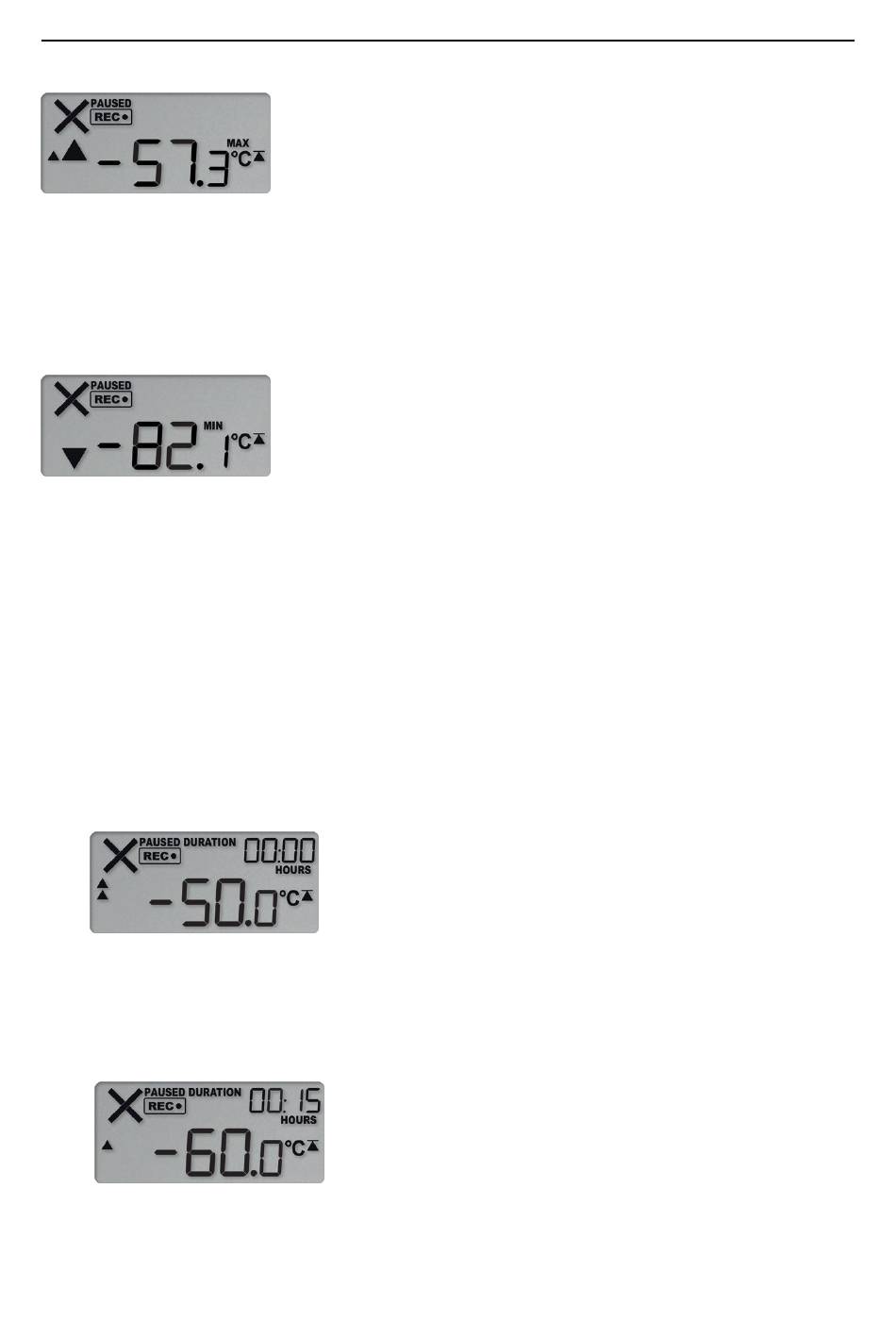

The clock disappears, and the
recorded. If this temperature was above or below one of the alarm thresholds, the
corresponding alarm threshold arrow is also shown. Here, the maximum was above the
threshold.
When you press
STOP
If this temperature was above or below one of the alarm thresholds, the corresponding
alarm marker is also shown. Here, the minimum was below the tertiary threshold.
If the alarm review screens are enabled, the next screens show the enabled alarm
threshold values in descending order, starting with the upper most alarm threshold. Up to
six screens will be shown, depending on how many alarms were enabled during
configuration.
1. In this example the tertiary upper alarm is enabled, indicated by the alarm threshold
marker shown in combination with the two small alarm arrows. The
symbol is shown, and the clock shows the total number of hours and minutes above
the threshold, instead of the time.
You can see how long the recorded temperature was above this threshold. Here, the -
50.0 °C threshold was not exceeded.
2. The secondary upper alarm is shown next, indicated by the alarm threshold marker
shown in combination with a single small alarm arrow.
The temperature went above the secondary upper alarm of -60.0 °C for 15 minutes,
but this did not trigger an alarm.
