Operating the Logger
UTREL-16 User Guide
27
If 6 alarms are configured and the alarm review screens are enabled (which is the
maximum), 8 screens will appear.

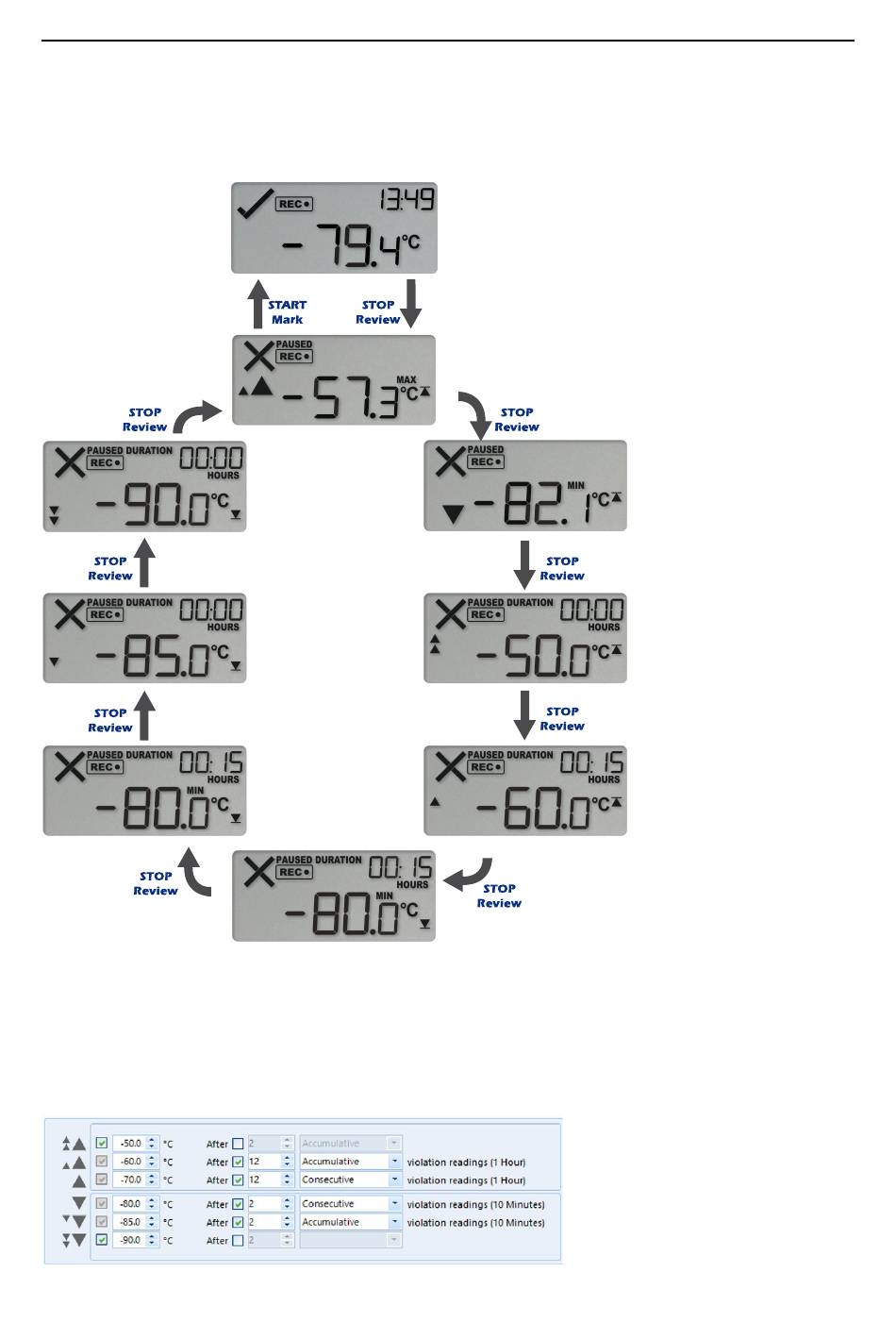

Figure 6: Review cycle with all alarms enabled
You can terminate the review at any time by pressing
, or by waiting 30 seconds
START
/Mark
without pressing any button.
In the example following alarm settings are used:
®
Figure 7: Alarm configuration settings in LogTag
Analyzer
On first press of the
button the
Maximum Reading
screen appears.
STOP
/Review
