3.3 Precautions
RG-AP680(CD) can be mounted on a wall and a pole (diameter: 50mm to 140mm, thickness: ≥2.5mm). Otherwise, the
AP could fall down and cause injuries. The installation site can vary due to on-the-spot surveys conducted by technical
personnel.
Please make full preparations as described in Chapter 2 and observe the following precautions before installing the AP.

Before connecting the power supply, make sure the external power supply matches the power module inside the AP.

Before connecting the power cord, make sure the power switch is in the OFF position.

When connecting a wire to a binding post, make sure their colors are the same.

Make sure the power supply is properly connected.

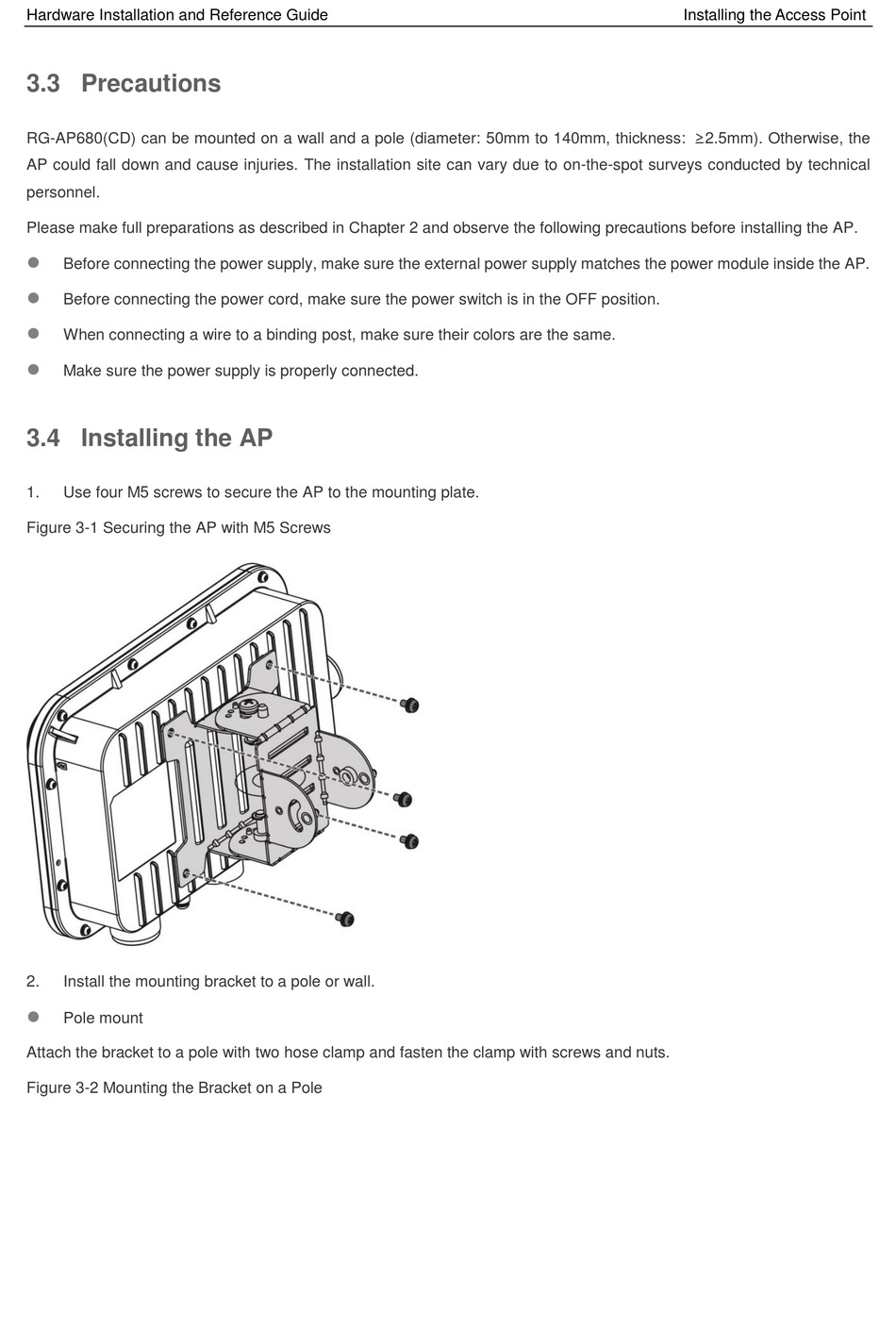

3.4 Installing the AP

1. Use four M5 screws to secure the AP to the mounting plate.
Figure 3-1 Securing the AP with M5 Screws
2. Install the mounting bracket to a pole or wall.

Pole mount
Attach the bracket to a pole with two hose clamp and fasten the clamp with screws and nuts.
Figure 3-2 Mounting the Bracket on a Pole
