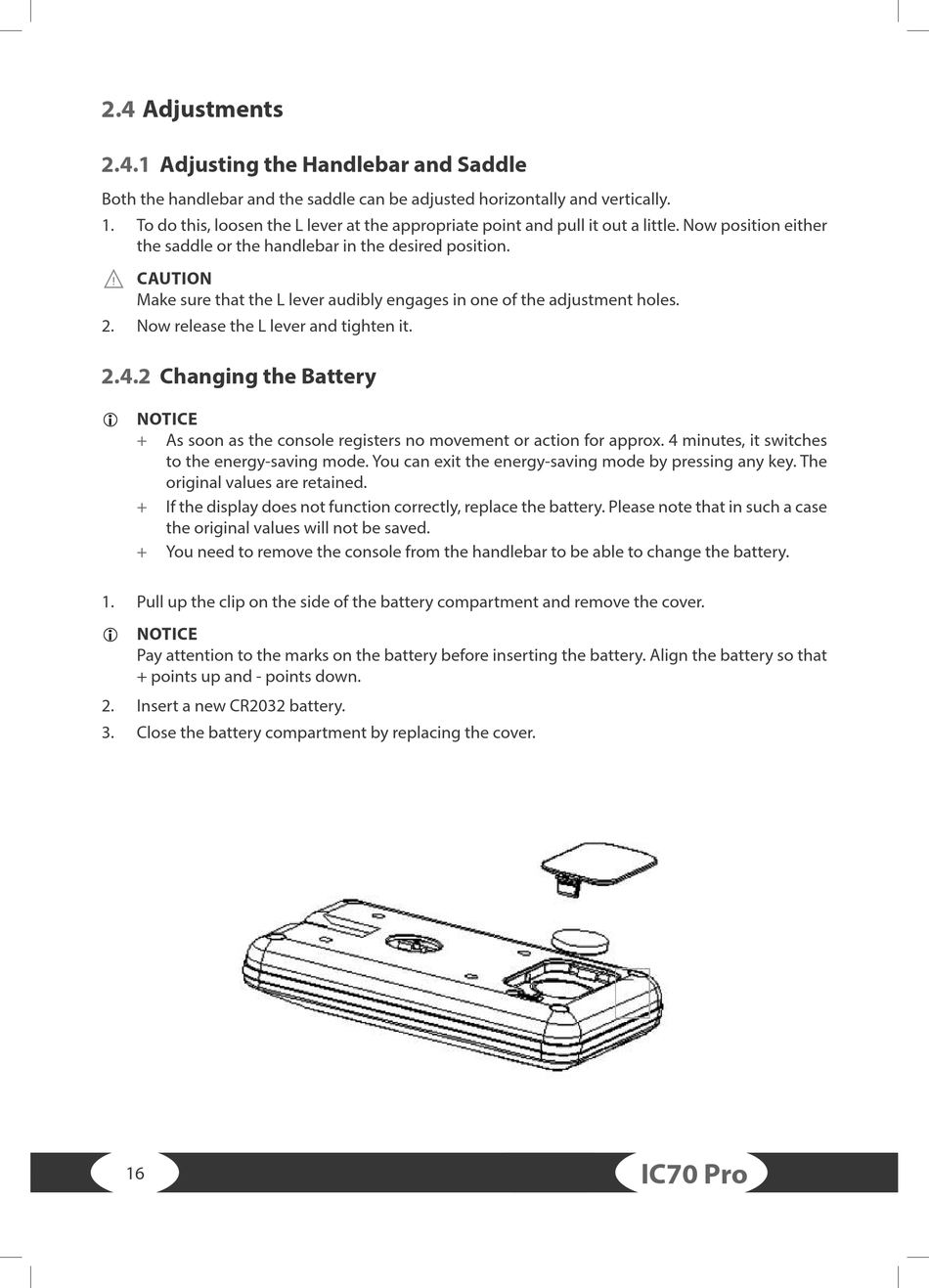

Adjustments; Adjusting The Handlebar And Saddle; Changing The Battery - Taurus IC70 Pro Assembly And Operating Instructions Manual

2.4

Adjustments

2.4.1

Adjusting the Handlebar and Saddle

Both the handlebar and the saddle can be adjusted horizontally and vertically.
1. To do this, loosen the L lever at the appropriate point and pull it out a little. Now position either
the saddle or the handlebar in the desired position.
⚠ CAUTION
Make sure that the L lever audibly engages in one of the adjustment holes.
2. Now release the L lever and tighten it.
2.4.2

Changing the Battery

NOTICE
L
+ As soon as the console registers no movement or action for approx. 4 minutes, it switches
to the energy-saving mode. You can exit the energy-saving mode by pressing any key. The
original values are retained.
+ If the display does not function correctly, replace the battery. Please note that in such a case
the original values will not be saved.
+ You need to remove the console from the handlebar to be able to change the battery.
1. Pull up the clip on the side of the battery compartment and remove the cover.
NOTICE
L
Pay attention to the marks on the battery before inserting the battery. Align the battery so that
+ points up and - points down.
2. Insert a new CR2032 battery.
3. Close the battery compartment by replacing the cover.
16
IC70 Pro
