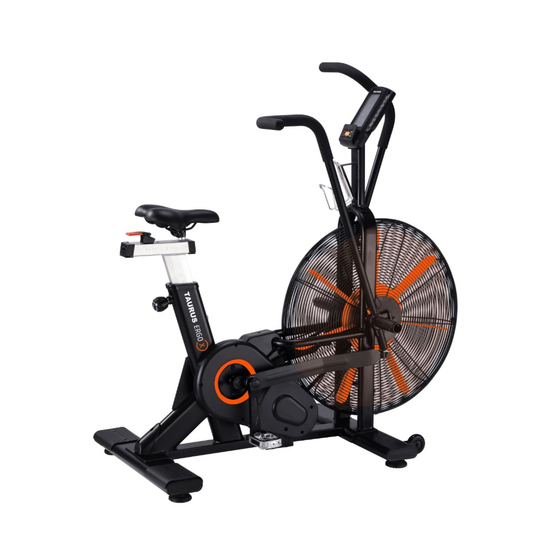

- Page 1 Assembly and Operating Instructions max. 150 kg ~ 45 Min. 54 kg L 140 | W 61 | H 126 CVEB2606.01.05 SKU: CVEB2606 Taurus Ergo-X Classic Air Bike...
- Page 2 Ergo-X...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly OPERATING INSTRUCTIONS Console Display Button Functions First Steps Sleep Mode Programmes 3.5.1 Quick Start Programme 3.5.2 Interval 10/20 and Interval 20/10 3.5.3 Interval Custom 3.5.4 Target Time, Target Distance and Target Calories 3.5.5 Target HR Changing the Units... - Page 4 ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing WARRANTY CONTACT Ergo-X...
- Page 5 Taurus is a well-known and experienced brand for equipping professional rooms for fi tness studios and business customers. The focus of Taurus fi tness equipment is on what matters most in sports: maximum performance! Therefore, the devices are developed in close consultation with athletes and sports scientists.
- Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and fi rst use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
-
Page 7: General Information
GENERAL INFORMATION Technical Data LCD display of: Training time in min Speed in km/h or ml/h Distance in km or ml Calories in kcal Heart rate (when using a chest strap) Watt Programmes in total: Quick Start programme: Interval programmes: 3 (one of them user-defi ned) Target programmes: Heart rate controlled programme:... -
Page 8: Personal Safety
Personal Safety ⚠ DANGER Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly aff ected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 9: Set-Up Place
Set-Up Place ⚠ WARNING Do not place the equipment in main corridors or escape routes. ⚠ CAUTION Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. The training room should be well ventilated during training and not be exposed to any draughts. -
Page 10: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suff ocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries. -
Page 11: Scope Of Delivery
Scope of Delivery The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. In the event of complaints, the contractual partner must be contacted directly. ⚠... -
Page 12: Assembly
Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fi t properly. Tighten the screws using the tool only when you are instructed to do so. - Page 13 Step 3: Assembly of the handlebars and the console ATTENTION Before assembling the handelbars apply some of the anaerobic adhesive on the handlebar (see Figure). Mount the left handlebar (18) to the main frame (16) with the spring washer (92). Anaerobic Adhesive Mount the left handlebar (18) to the drive assembly (11) with one bolt (78), one fl at washer (5),...
- Page 14 Step 4: Assembly of the pedals NOTICE The pedals (1L & 1R) are marked with an “L“ and an “R“ for left and right. The right crank arm is in sitting position on the right side. Attach the left pedal (1L) to the left crank arm by turning the pedal (1L) counterclockwise...
-
Page 15: Operating Instructions
OPERATING INSTRUCTIONS NOTICE Familiarise yourself with all the functions and setting options of the device before starting training. Have the proper use of this product explained to you by a specialist. Console Display Display Description Display of the rotations per minute Display range: 0–199 Display of the current speed in km/h or ml/h SPEED... -
Page 16: Button Functions
Display of Watt WATT Display range: 0–1999 ⚠ WARNING Your training equipment is not a medical device. The heart rate measurement of this equipment may be inaccurate. Various factors can aff ect the accuracy of the heart rate measurement. The heart rate PULSE measurement serves only as a training aid. -
Page 17: First Steps
First Steps After starting the console, a signal sounds and the display fully lights up (Fig. 1). Then the display shows the wheel diameter (Fig. 2) and enters setting mode for setting the age (Fig 3). To set the age, press the ▼ or ▲ button and press ENTER to confi rm. The console enters the main menu and the following elements will fl ash for 1 second each in the sequence of: INTERVAL10/20 →... -
Page 18: Programmes
Programmes A total of 8 programmes are available: Quick Start programme: Interval programmes: 3 (one of them user-defi ned) Target programmes: 4 (one of them heart rate controlled) 3.5.1 Quick Start Programme ⚠ WARNING Your training equipment is not a medical device. The heart rate measurement of this equipment may be inaccurate. -
Page 19: Interval 10/20 And Interval 20/10
3.5.2 Interval 10/20 and Interval 20/10 Two pre-set interval programmes are available. These programmes are devided into 8 cycles. You can choose between 10/20 or 20/10 (WORK/REST). ⚠ WARNING Your training equipment is not a medical device. The heart rate measurement of this equipment may be inaccurate. -
Page 20: Interval Custom
A signal sounds for 1 second and the values for TOTAL TIME, TIME, DISTANCE, CALORIES, WATTS, SPEED, RPM and PULSE will be shown for 30 seconds. NOTICE The display of the values for WATTS, SPEED, RPM switches every 5 seconds between AVG and MAX. - Page 21 The values for TOTAL TIME, TIME, DISTANCE, CALORIES are counted up. Also the values for WATTS, SPEED, RPM and PULSE are shown (Fig. 13–15). Fig. 13 Fig. 14 Fig. 15 NOTICE If no pulse signal is received, PULSE shows P. If the console receives no signal (RPM or input) for 30 seconds, a short signal sounds and the console enters sleep mode.
-
Page 22: Target Time, Target Distance And Target Calories
3.5.4 Target Time, Target Distance and Target Calories To enter one of the target programmes, press the respective button. The icon of the chosen programme is shown in the display, a signal sounds for 1 second and the value to be set fl ashes (Fig. -
Page 23: Target Hr
3.5.5 Target HR ⚠ WARNING Your training equipment is not a medical device. The heart rate measurement of this equipment may be inaccurate. Various factors can aff ect the accuracy of the heart rate measurement. The heart rate measurement serves only as a training aid. ... -
Page 24: Changing The Units
A signal sounds for 1 second and the values for TOTAL TIME, TIME, DISTANCE, CALORIES, WATTS, SPEED, RPM and PULSE will be shown for 30 seconds. NOTICE The display of the values for WATTS, SPEED, RPM switches every 5 seconds between AVG and MAX. -
Page 25: Storage And Transport
STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ATTENTION Make sure that the equipment is protected from moisture, dust and dirt in the selected storage location. -
Page 26: Troubleshooting, Care And Maintenance
TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. ⚠ CAUTION Damaged or worn components may aff ect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner. -
Page 27: Maintenance And Inspection Calendar
Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specifi ed intervals: Part Weekly Monthly Display console Plastic covers Screws and cable connections... -
Page 28: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more effi cient and pleasant, we recommend that you add suiting accessories to your fi tness equipment. For exercise bikes this could for example be a fl oor mat, which makes your fi tness equipment stand more securely and also protects the fl oor from sweat or silicone spray to keep moving parts in good shape. -
Page 29: Ordering Spare Parts
It's located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate fi eld. Serial number: Brand / Category: Taurus / Upright Bike Model Name: Ergo-X Classic Air Bike SKU: CVEB2606... -
Page 30: Parts List
Parts List Name Specifi cation Qty. PEDAL JD-304V (9/16") END CAP3 120*40*35 BOLT 1 M10*30 REAR STABILIZER WELDING FLAT WASHER FRONT COVER 160*128*3 BOLT 1 GB/845-85 ST4.8X19 BOLT 2 M8*40 SHAPE KNOB φ50*91 (M16*35) VERTICAL SEAT POST WELDING Drive assembly WELDING SEAT POST WELDING... - Page 31 LEFT CRANK 170*15 LONG FIXING TUBE φ25*φ20.2*41.2 BEARING 6004ZZ RIGHT CRANK 170*15 Outer spring Crank drive assembly 80*65 COVER 56*23.6*24.6 COVER 58*36.3*22.7 SCREW 1 GB/T 845-1985 ST4.2*19 SCREW 2 GB/T 845-1985 ST4.2*19 SCREW 3 GB/845-85 ST4.8X19 BELT COVER 1 478*270*60 BELT COVER 2 469*241*23 AXIS...
- Page 32 BOLT 1 GB/845-85 M4*12 Handle 79*32*32.6 GB/T 889.1-2000 M16 H=12 Flywheel inner casing φ16*φ12.2*53.1 B0TTLE HOLDER φ6 SCREW 3 GB/T 5780-2000 M5*10 The left wheel cover φ690*55 Right wheel cover φ690*55 Fan baffl e φ170*10 Handle rotary copper sleeve φ12*20 BOLT 3 M10*45 GB/T 889.1-2000 M10...
-
Page 33: Exploded Drawing
Exploded Drawing... -
Page 34: Warranty
WARRANTY Training equipment from Taurus® is subject to strict quality control. However, if a fi tness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. - Page 35 Warranty Service Within the warranty period, equipment which develops faults as a result of material or manufacturing defects, will be repaired or replaced at our discretion. Ownership of equipment or parts of equipment which have been replaced is transferred to us. The warranty period is not extended nor does a new warranty period begin following repair or replacement under the warranty.
-
Page 36: Contact
CONTACT TECHNIK TEKNIK OG SERVICE TECHNIQUE & SERVICE �� �� �� +49 4621 4210-900 80 90 16 50 +33 (0) 189 530984 +49 4621 4210-945 +49 4621 42 10 933 �� +49 4621 4210-698 �� �� info@fi tshop.dk info@fi tshop.fr ��... - Page 37 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA The Sport-Tiedje Group is Europe’s largest http://www.powerhouse-fitness.co.uk/ specialist for home fi tness equipment with www.powerhouse-fi tness.co.uk/blog/ currently 70 stores and one of the world’s most renowned online mail order companies for fi tness equipment. https://www.facebook.com/powerhousefi tness.co.uk Powerhouse Fitness is part of the Sport-Tiedje Group.
- Page 38 Notes Ergo-X...
- Page 40 Taurus Ergo-X Classic Air Bike...
