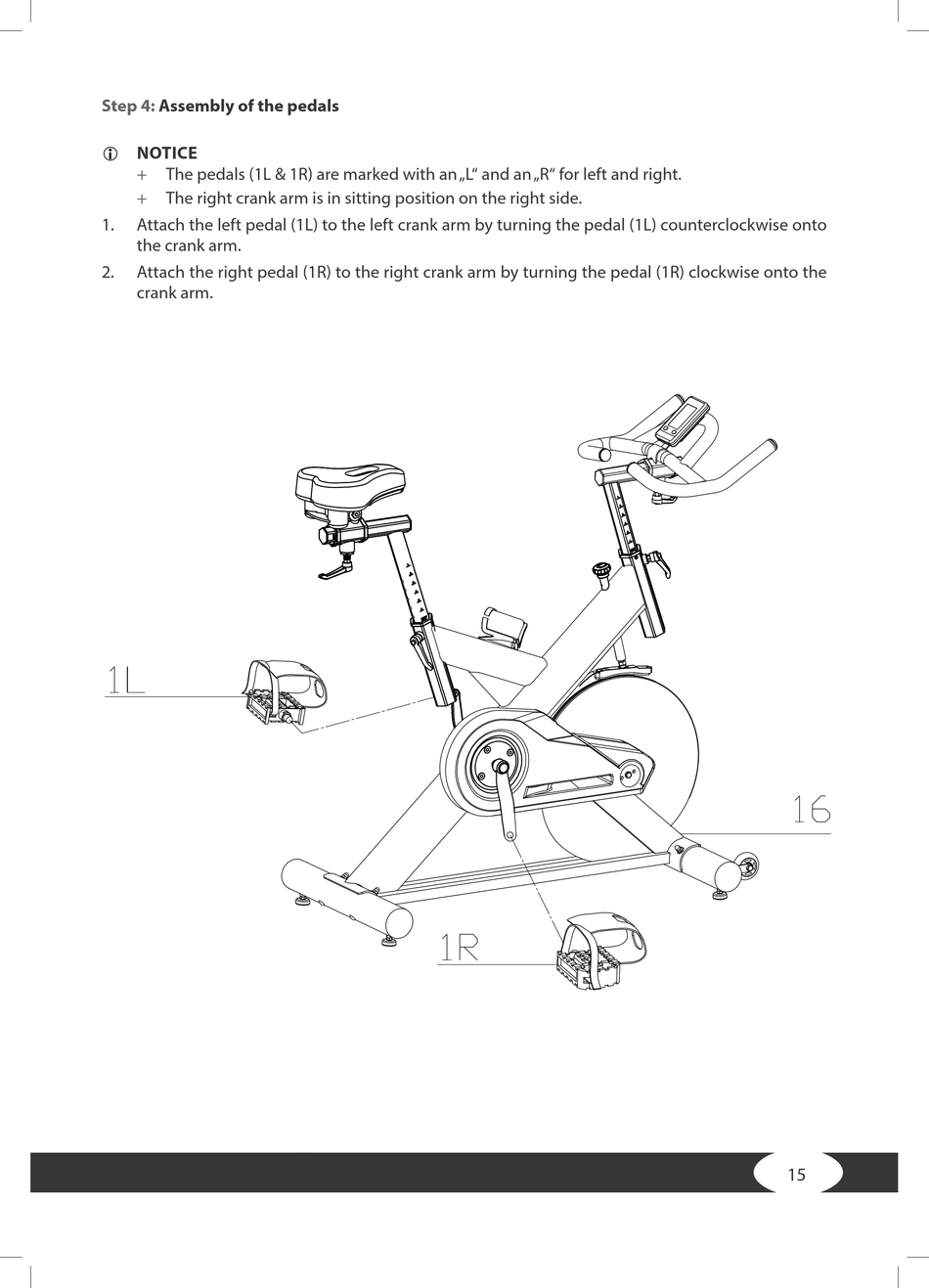

Step 4: Assembly of the pedals
NOTICE
L
+ The pedals (1L & 1R) are marked with an „L" and an „R" for left and right.
+ The right crank arm is in sitting position on the right side.
1. Attach the left pedal (1L) to the left crank arm by turning the pedal (1L) counterclockwise onto
the crank arm.
2. Attach the right pedal (1R) to the right crank arm by turning the pedal (1R) clockwise onto the
crank arm.
