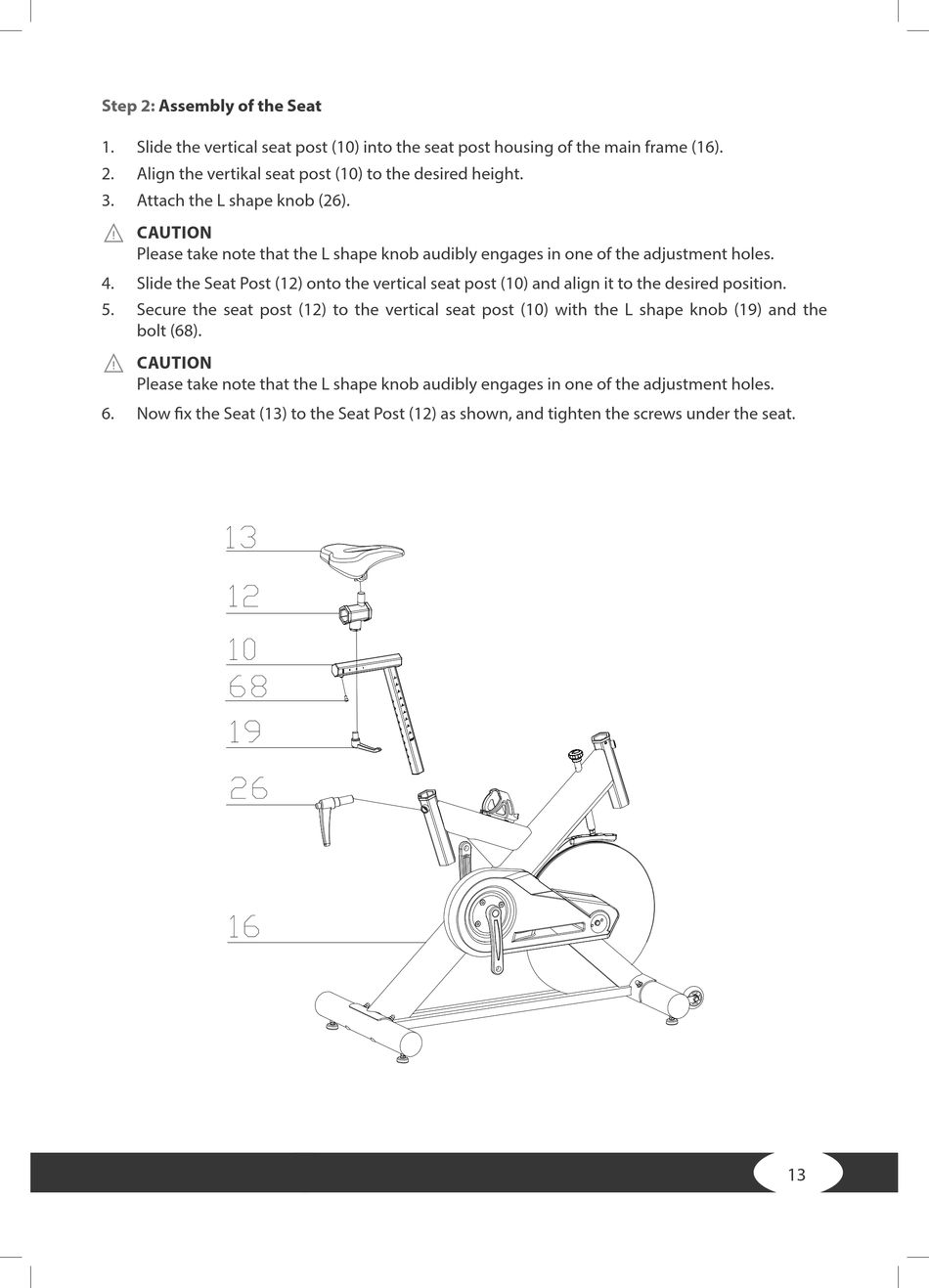

Step 2: Assembly of the Seat
1. Slide the vertical seat post (10) into the seat post housing of the main frame (16).
2. Align the vertikal seat post (10) to the desired height.
3. Attach the L shape knob (26).
⚠ CAUTION
Please take note that the L shape knob audibly engages in one of the adjustment holes.
4. Slide the Seat Post (12) onto the vertical seat post (10) and align it to the desired position.
5. Secure the seat post (12) to the vertical seat post (10) with the L shape knob (19) and the
bolt (68).
⚠ CAUTION
Please take note that the L shape knob audibly engages in one of the adjustment holes.
6. Now fix the Seat (13) to the Seat Post (12) as shown, and tighten the screws under the seat.
