Assembly

Before assembly, take a close look at the individual assembly steps shown and carry out the assembly
in the order given.
NOTICE
L
First loosely screw all parts together and check that they fit properly. Tighten the screws using
the tool only when you are instructed to do so.

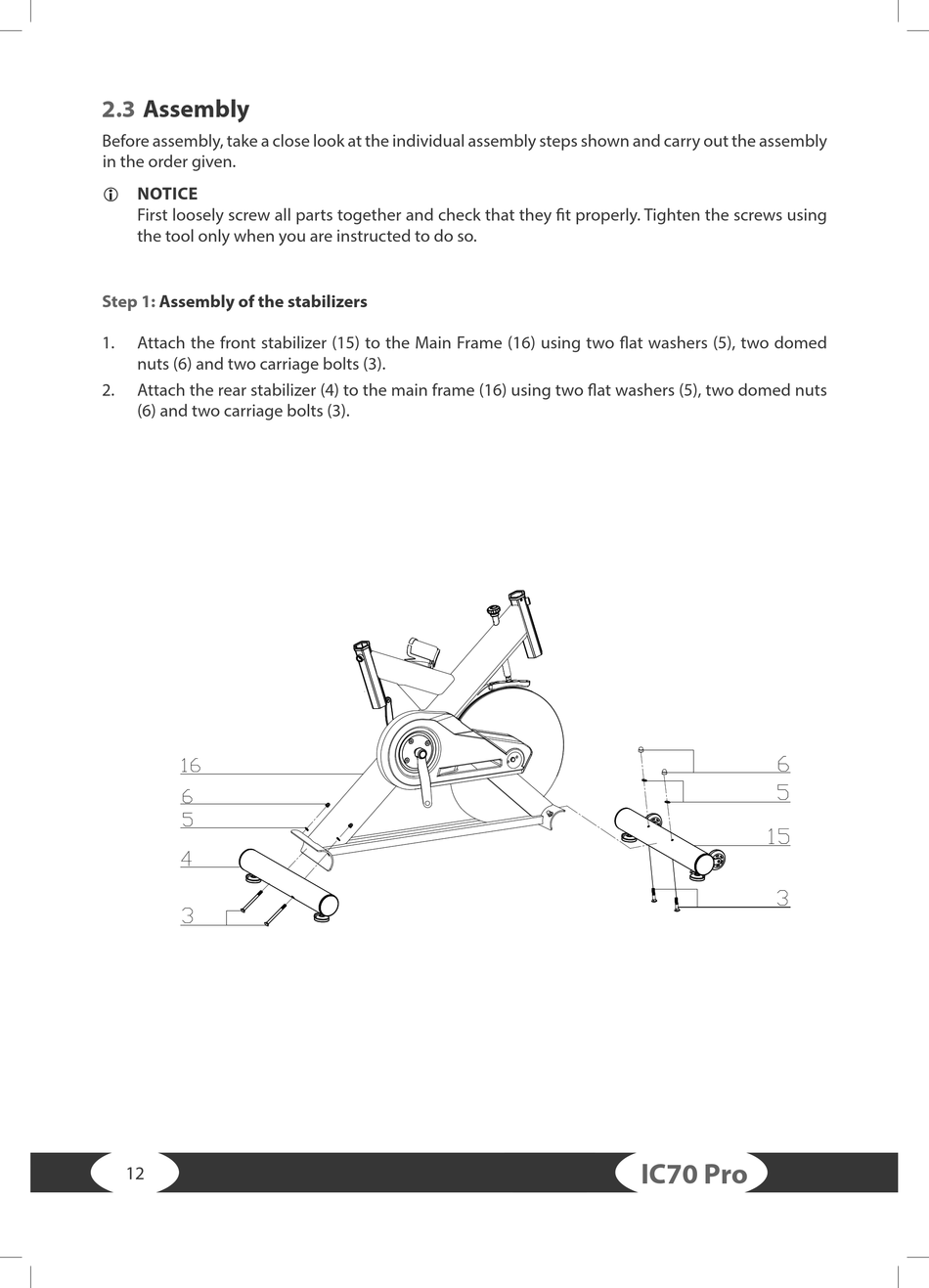

Step 1: Assembly of the stabilizers
1. Attach the front stabilizer (15) to the Main Frame (16) using two flat washers (5), two domed
nuts (6) and two carriage bolts (3).
2. Attach the rear stabilizer (4) to the main frame (16) using two flat washers (5), two domed nuts
(6) and two carriage bolts (3).
