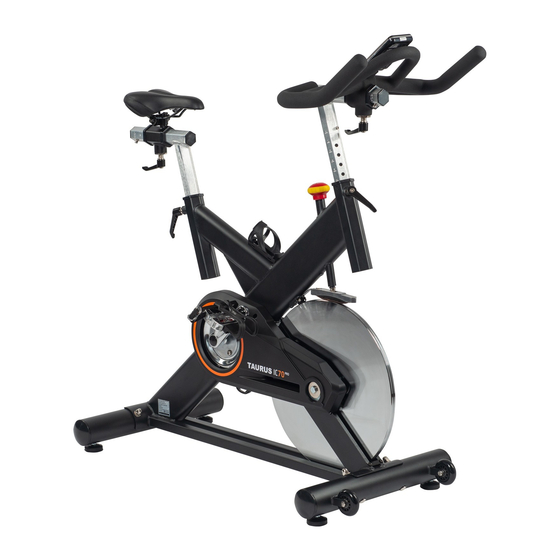

- Page 1 Assembly and operating instructions TFIC70PRO.02.02 Indoor Cycle IC70 Pro TF-IC70PRO-2...
- Page 2 IC70 Pro...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly Adjustments 2.4.1 Adjusting the Handlebar and Saddle 2.4.2 Changing the Battery 2.4.3 Adjusting the Tension 2.4.4 Using the Emergency Brake Function OPERATING INSTRUCTIONS Console Display Button Functions Programmes 3.3.1 Quick Start Programme... - Page 4 ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing WARRANTY CONTACT IC70 Pro...
- Page 5 With Taurus® fitness equipment, the focus is on what sport is all about: maximum performance! Therefore, the equipment is developed in close consultation with athletes and sports scientists.
- Page 6 This notice indicates potentially hazardous situations which, if not avoided, will result in death or serious injuries! NOTICE This notice indicates further useful information. Retain these instructions in a safe place for future reference, maintenance or when ordering replacement parts. IC70 Pro...
-
Page 7: General Information
GENERAL INFORMATION Technical Data LCD - Display of training time training route calorie consumption heart rate Braking system: Felt Brake Flywheel: 20 kg Dimensions and weight Article weight (gross, incl. packaging): 63 kg Article weight (net, without packaging): 56.5 kg Packaging dimensions (LxWxH): 106 cm x 21.5 cm x 96 cm Set-up dimensions (LxWxH): 124 cm x 53 cm x 123 cm Maximum user weight: 130 kg... -
Page 8: Personal Safety
Make sure that nobody is within the range of motion of the equipment during training so as not to endanger you or other persons. ࣑ ATTENTION Do not insert any objects of any kind into the openings of the device. IC70 Pro... -
Page 9: Set-Up Place
Set-Up Place ⚠ WARNING Do not place the equipment in main corridors or escape routes. CAUTION ⚠ Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. Make sure that you leave at least 30 cm on each side of the equipment and at least 15 cm in front of and behind the equipment as a training zone. -
Page 10: Assembly
To prevent damage to the equipment and the floor, assemble the equipment on a mat or packaging board. NOTICE In order to make the assembly as simple as possible, some screws and nuts to be used can already be pre-assembled. Ideally, assemble the equipment at its later set-up place. IC70 Pro... -
Page 11: Scope Of Delivery
Scope of Delivery The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. In the event of complaints, the contractual partner must be contacted directly. ⚠... -
Page 12: Assembly
Attach the front stabilizer (15) to the Main Frame (16) using two flat washers (5), two domed nuts (6) and two carriage bolts (3). Attach the rear stabilizer (4) to the main frame (16) using two flat washers (5), two domed nuts (6) and two carriage bolts (3). IC70 Pro... - Page 13 Step 2: Assembly of the Seat Slide the vertical seat post (10) into the seat post housing of the main frame (16). Align the vertikal seat post (10) to the desired height. Attach the L shape knob (26). ⚠ CAUTION Please take note that the L shape knob audibly engages in one of the adjustment holes.
- Page 14 Please take note that the L shape knob audibly engages in one of the adjustment holes. NOTICE Before performing the next step, insert the supplied battery into the console. To insert or replace a battery, follow the instructions in Section 2.4.2. Fix the computer (80) to the handlebar (18) with four bolts (81). IC70 Pro...
- Page 15 Step 4: Assembly of the pedals NOTICE The pedals (1L & 1R) are marked with an „L“ and an „R“ for left and right. The right crank arm is in sitting position on the right side. Attach the left pedal (1L) to the left crank arm by turning the pedal (1L) counterclockwise onto the crank arm.
-
Page 16: Adjustments
NOTICE Pay attention to the marks on the battery before inserting the battery. Align the battery so that + points up and - points down. Insert a new CR2032 battery. Close the battery compartment by replacing the cover. IC70 Pro... - Page 17 IMPORTANT NOTICE Switch on the sensor located at the position shown before using your indoor cycle for the first time. It is not necessary to turn off the sensor after each training session. However, if you do not use the indoor cycle for a longer period of time, we recommend switching off the sensor.
-
Page 18: Adjusting The Tension
The same knob that allows you to adjust the resistance of the indoor cycle also doubles as the emergency brake. To use the emergency brake firmly press down on the emergency brake & tension control knob (30). IC70 Pro... -
Page 19: Operating Instructions
OPERATING INSTRUCTIONS NOTICE Familiarise yourself with all the functions and setting options of the device before starting training. Have the proper use of this product explained to you by a specialist. Console Display TIME Display of the training time Display range 0:00 - 99:59 SPEED Display of the current speed Display range 0.0 - 240 km/h or ml/h... -
Page 20: Button Functions
If you set multiple values for parameters, the corresponding values will be counted down during the workout. Potentially unspecified values are counted up. The programme stops as soon as one of the set values reaches 0 and an acoustic signal is heard. IC70 Pro... -
Page 21: Storage And Transport
STORAGE AND TRANSPORT General Instructions ࣑ ATTENTION Make sure that the equipment is protected from moisture, dust and dirt in the selected storage location. The storage location should be dry and well ventilated and have a constant ambient temperature between 5°C and 45°C. WARNING ⚠... -
Page 22: Troubleshooting, Care And Maintenance
...) Wrong position of chest Use a suitable chest strap (see No pulse display RECOMMENDED ACCESSORIES). strap Reposition chest strap and/or Chest strap defective or moisten electrodes battery empty Changing batteries Pulse display defective IC70 Pro... -
Page 23: Lubricating The Felt Brake
Lubricating the Felt Brake ࣑ ATTENTION To prevent damage to the device, take care to keep the felt brake moist with lubricant at regular intervals. The information in the maintenance and inspection calendar is for reference only. Note that the felt brake must be lubricated more often when the device is used more frequently. To lubricate the felt brake, apply lubricant (one to two drops of silicone oil or some silicone spray) to the flywheel and rotate the flywheel for two turns. -
Page 24: Recommended Accessories
Of course, you can also contact our customer service: by telephone, e-mail, in one of our branches or via our social media channels. We will be happy to advise you! chest strap floor mat chest strap contact gel silicone spray towels IC70 Pro... - Page 25 The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate field. Serial number: Brand / Category: Taurus / Indoor Cycle Model Name: IC70 Pro Article Number: TF-IC70PRO-2...
- Page 26 117*85*90 FIXING NUT 27*6(M20*1) GB/T 889.1-2000 M8 BOLT 1 GB/T77-2007 M6*6 L SHAPE KNOB (M16*1.5)X20mm BOLT 1 GB/T 70.2-2000 M8*16 FIXING NUT 1 M12X1.25 H=8MM CRANK END CAP φ28*6.5 KNOB φ60*113 GB/T 41-2000 Twist The Fixings φ20*34 IC70 Pro...
- Page 27 LEFT CRANK 170*15 CRANK COVER φ56*28 BEARING 6004ZZ RIGHT CRANK 170*15 Screw rod Φ13.5*185 WASHER 2 φ20*φ14*2.0 PLASTIC SLEEVE 1 38*38*1.5 BOLT 10 M10*21 SCREW 2 GB/T 15856.1-2002 ST4.2X19 SCREW 3 GB/T 15856.1-2002 ST4.2X19 SCREW 3 GB/845-85 ST4.8X19 OUTER CHAIN COVER 575*260*45 BEARING 6203ZZ...
- Page 28 32*12 （M16x1.5) BOLT 10 GB/845-85 M6*16 SCREW10 GB/845-85 ST4.8X13 COMPUTER TE-2000-3 SCREW 4 GB/T 5780-2000 M5*10 SENSOR SR-202 BLUETOOTH LANCHER L=150 Plastic plug φ14*14 EVA paddle 50*20*4 EVA paddle 95*16*9 DOMED NUT GB/T 802-1988 M10 SILICON OIL φ28*122 IC70 Pro...
- Page 29 Exploded Drawing...
- Page 30 IC70 Pro...
- Page 31 WARRANTY Training equipment from Taurus® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline.
- Page 32 For that reason, we also want to resolve your queries quickly and in a straightforward manner. Thus, please always keep your customer number and the serial number of the faulty equipment handy. IC70 Pro...
- Page 33 CONTACT TECHNICAL SUPPORT TECHNICAL SUPPORT & SERVICE TECHNICAL SUPPORT & SERVICE �� �� �� +49 4621 4210-900 80 90 16 50 +33 (0) 172 770033 +49 4621 4210-945 +49 4621 4210-933 �� +49 4621 4210-698 �� �� info@fitshop.dk service-france@fitshop.fr �� technik@sport-tiedje.de ��...
- Page 34 The company employs numerous sports scientists, fitness trainers and competitive athletes. Visit us also on our social media platforms or our blog! IC70 Pro...
- Page 36 Indoor Cycle IC70 Pro...
