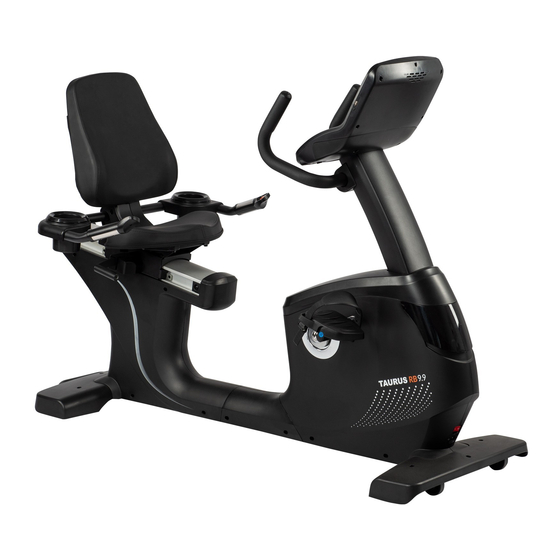

Recumbent bike

Advertisement

Quick Links

Assembly and Operating Instructions
max. 180 kg
~ 60 Min.
66 kg
L 170 | W 75 | H 122
CVEB2515.01.05
SKU: CVEB2515
Recumbent bike
RB9.9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CVEB2515 and is the answer not in the manual?

Questions and answers

Summary of Contents for Taurus CVEB2515

  • Page 1 Assembly and Operating Instructions max. 180 kg ~ 60 Min. 66 kg L 170 | W 75 | H 122 CVEB2515.01.05 SKU: CVEB2515 Recumbent bike RB9.9...
  • Page 2 RB9.9...
  • Page 3: Table Of Contents

    Content GENERAL INFORMATION Technical Data Personal Safety Electrical Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly OPERATING INSTRUCTIONS Console display Button functions Powering on the equipment Standby mode MANUAL (Manual programs) 3.5.1 Quick-Start program 3.5.2 Target programs PROGRAM (Profile programs) USER (User defined program) H.R.C.
  • Page 4 RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing WARRANTY CONTACT RB9.9...
  • Page 5 With Taurus® fitness equipment, the focus is on what sport is all about: maximum performance! Therefore, the equipment is developed in close consultation with athletes and sports scientists.
  • Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
  • Page 7: General Information

    GENERAL INFORMATION Technical Data LCD Display: Training duration in min. Speed in km/h Training distance in km Calories in kcal Heart rate (using the hand pulse sensors or a chest strap) Watts Brake system: Electro-magnetic induction brake Resistance levels: Flywheel mass: 10kg Wattage Adjustable range in the watt programme:...
  • Page 8: Personal Safety

    Personal Safety DANGER ⚠ Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year.
  • Page 9: Electrical Safety

    Electrical Safety DANGER ⚠ In order to reduce the risk of an electric shock, always unplug the equipment from the mains socket immediately after your workout, before assembly or dismantling, and before maintenance or cleaning. Do not pull on the cable. ⚠...
  • Page 10: Set-Up Place

    Set-Up Place WARNING ⚠ Do not place the equipment in main corridors or escape routes. ⚠ CAUTION The training room should be well ventilated during training and not be exposed to any draughts. Choose the place in which to set up the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment.
  • Page 11: Assembly

    ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries.
  • Page 12: Scope Of Delivery

    Scope of Delivery The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. In the event of complaints, the contractual partner must be contacted directly. CAUTION ⚠...
  • Page 13 114 & 115 51L & 51R STEP 1 7A M8*1.25*110L 4PCS 16 D16*D8.5*1.2T 8PCS 7 M8*1.25*70L 4PCS 9 D15.4*D8.2*2T 8PCS STEP 2 9 D15.4*D8.2*2T 4PCS 16 D16*D8.5*1.2T 4PCS 15 M8*1.25*15L 4PCS STEP 3 39 M5*12L 8PCS STEP 4 8 D22*D8.5*1.5T 4PCS 9 D15.4*D8.2*2T 3PCS 41 M8*1.25*50L 4PCS 15 M8*1.25*15L 3PCS...
  • Page 14: Assembly

    Acrobat Reader programme must be installed on your end device in order to open the file. The assembly can also be found as a video under the following link: https:// www.sport-tiedje.co.uk/taurus-recumbent-bike-rb9.9-tf-rb99#product- assembly. To go directly to the assembly video, you can alternatively scan the QR code. Step 1:...
  • Page 15 M8x1.25x70L M8x1.25x110L D15.4xD8.2x2T D16xD8.5x1.2T 7 16 7 16...
  • Page 16 Step 2: Mounting the front post Slide the cover (11) up along the front post (17) (see fig. 2-1). Connect the cables (64 & 65) and the cables (14 & 18) with one another (see fig. 2-2). Insert the front post (17) into the main frame holder (1). Connect the front post (17) with the main frame holder (1) with four bolts (15), four spring washers (9) and four flat washers (16).
  • Page 17 M8x1.25x15L D15.4xD8.2x2T D16xD8.5x1.2T...
  • Page 18 Step 4: Mounting the console Connect the cables (76 & 64) and the cables (76 & 14) with one another (see fig. 3-1). Place the console (76) on the front post (17). Attach the console (76) to the front post (17) with four screws (39) (see fig. 3-2). Fix the cover (40) to the console (76) with four screws (39) (see fig.
  • Page 19 M5*12L 40 39 Step-3...
  • Page 20 Step 5: Mounting the handles and backrest Insert the backrest (119) into the main frame (1) and secure with three screws (15), three washers (16), and three spring washers (9). Connect the cables (37L & 18) and the cables (37R & 18) (see fig. 4-1). Attach the handles with the hand pulse sensors (36) to the main frame (1) with two screws (41) and two curved washers (8).
  • Page 21 M8x1.25x50L D22*D8.5*1.5T M8x1.25x15L D15.4xD8.2x2T D16xD8.5x1.2T 8 41 Step-4...
  • Page 22 Step 6: Mounting the covers and pedals Mount the seat (69) on the main frame (1) with four screws (112) and four washers (16). Screw the left pedal (51L) to the left crank (48L) by turning the pedal (51L) counterclockwise. Screw the right pedal (51R) to the right crank (48R) by turning the pedal (51R) clockwise.
  • Page 23 M8x1.25x35L D16xD8.5x1.2T M5*12L ST4.2*15L Step-5...
  • Page 24: Operating Instructions

    OPERATING INSTRUCTIONS NOTICE Familiarise yourself with all the functions and setting options of the device before starting training. Have the proper use of this product explained to you by a specialist. Console display DISPLAY DESCRIPTION Display of the elapsed training time (0:00 - 99:59) TIME Set a target time with the rotary knob (0:00 - 99:00) in 1 min.
  • Page 25: Button Functions

    Button functions BUTTON DESCRIPTION Increasing the setting value or resistance level Rotary knob Decreasing the setting value or resistance level Setting confirmation BODY FAT Body fat test RECOVERY Heart rate test on your recovery condition Returns you to the previous training mode while making settings or RESET selecting an option.
  • Page 26: Powering On The Equipment

    Powering on the equipment The console starts automatically as soon as the equipment is plugged into the mains supply. Various components will light up. Choose a user profile (U1 - U4). Enter in your gender (SEX), age (AGE), height (HEIGHT) and weight (WEIGHT). You will proceed onto the main menu.
  • Page 27: Manual (Manual Programs)

    MANUAL (Manual programs) Under MANUAL you can choose between the Quick-Start program and one of the target programs. For target programs, settings for time (TIME), distance (DISTANCE), caloires (CALORIES) or heart rate (PULSE) are possible. 3.5.1 Quick-Start program In the main menu, select MANUAL and confirm your choice with a single push of the rotary knob.
  • Page 28: Program (Profile Programs)

    Training with multiple target values In the main menu select MANUAL and confirm your choice with a single push of the rotary knob. Select your target value for time, calories, distance and/or heart rate with the rotary knob and confirm your choice with a single push of the rotary knob. ⚠...
  • Page 30: User (User Defined Program)

    USER (User defined program) There are 16 segments available in user defined programs. In the main menu select USER and confirm your choice with a single push of the rotary knob. Select the resistance level of each segment and confirm each value with a single push of the rotary knob.
  • Page 31: Heart Rate Controlled Programs)

    H.R.C. (Heart rate controlled programs) WARNING ⚠ This crosstrainer is not medical equipment. The heart rate measurement of the crosstrainer can be unprecise. Different factors can influence the heart rate reading. The heart rate readings are only meant as a guide for training. There are three heart rate programs available to choose from.
  • Page 32: Watt (Watt Program)

    WATT (Watt program) In the main menu select WATT and confirm your choice with a single push of the rotary knob. Using the rotary knob, select a Watt value and confirm your setting with a single push of the rotary knob. NOTICE The pre-set value is 120.
  • Page 33: Body Fat (Body Fat Analysis)

    3.11 BODY FAT (Body fat analysis) Choose your user profile (U1-U4). To start the body fat analysis, in the main menu press the BODY FAT button and hold on to the hand pulse sensors. NOTICE Should you not properly grip the hand pulse sensors, the display will show the error code E-1. NOTICE If you wish to prematurley end the body fat analysis and return to the previous program, press the BODY FAT button again.
  • Page 34: Bluetooth And Fitness Apps

    3.12 Bluetooth and fitness apps The console of this crosstrainer is equipped with a Bluetooth receiver. In order to use training apps, you need to connect the crosstrainer and your mobile device (Tablet or smartphone) together. Turn on Bluetooth on your mobile device and choose your crosstrainer. The name of your crosstrainer can be found on a sticker on the back of the console.
  • Page 35: Storage And Transport

    STORAGE AND TRANSPORT General Instructions ࣑ ATTENTION Make sure that the equipment is protected from moisture, dust and dirt in the selected storage location. The storage location should be dry and well ventilated and have a constant ambient temperature between 5°C and 45°C. WARNING ⚠...
  • Page 36: Troubleshooting, Care And Maintenance

    TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. CAUTION ⚠ Damaged or worn components may affect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner.
  • Page 37: Error Codes And Troubleshooting

    Error codes and troubleshooting The electronics of the crosstrainer are continually running tests. In case of deviations, an error code is shown on the display and normal operation is stopped for your safety. No values were received during the body fat analysis. Make sure that, during the analysis, you hold on to the hand pulse sensors with both hands.
  • Page 38: Maintenance And Inspection Calendar

    Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Display console Plastic covers Screws and cable connections Check pedals for tightness...
  • Page 39: Recommended Accessories

    RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. This could be a floor mat, for example, which makes your fitness equipment stand more securely and also protects the floor from falling sweat, but it could also be additional handrails on some treadmills or silicone spray to keep moving parts in good shape.
  • Page 40: Ordering Spare Parts

    Date/Datum: Sport-Tiedje GmbH, Flensburger Str. 55, 24837 Schleswig MADE IN Serial nº.: shown in the following illustration. Enter the serial number in the appropriate field. Serial number: Brand / Category: Taurus / recumbent bike Model Name: RB9.9 SKU: CVEB2515 RB9.9...
  • Page 41: Parts List

    Parts List Name Supplier Parts No. Material Specification Qty. Main frame 744S0-3-1000-J1 Rear stabiliser 744S0-3-2112-J0 Adjustable round 26000-6-1095-B0 D38*M10*1.5 Q235A+plastic wheel Front stabiliser 744S0-3-2100-J0 Cover of front 734S0-6-2186-B0 600*190.2*79.4 stabiliser Allen bolt 50308-5-0040-F3 M8*1.25*40L Q235A Bolt 50108-5-0070-F4 M8*1.25*70L Bolt 50108-5-0110-F5 M8*1.25*110L Curve washer 55108-3-2215-FA...
  • Page 42 Crank axle 734S0-3-2903-00 Pulley 58008-6-1037-D0 D260*25*3T Q235A Nylon nut 55206-1-2006-FA M6*1.0*6T Q235A Bolt 50106-5-0015-C0 M6x1.0x15L Belt 58004-6-1116-00 430 PJ8 Round magnet 174R4-6-2574-00 Upper cable for quick 734S0-6-2539-00 400L button (2) Upper cable for quick 734S0-6-2542-00 400L button (1) Upper cover for 747S0-6-2517-B0 184.5*20.8*50 handpulse...
  • Page 43 Cover of bolt 734S0-6-2779-C0 D29*11.5L 51L&51R Pedal 58029-6-1105-B0 JD-36A,9/16" Round screw 54006-5-0015-D0 M6*1.0*15L Flat washer 55106-1-1310-FA D13*D6.5*1.0T Q235A Flat washer 55106-1-1310-NA D13*D6.5*1.0T Q235A Electric Magnetic 734S0-3-3102-00 D265*153*50 System 71600-6-4586-60 D6*26.5*7.7 Power supply 261D8-6-2411-00 Power socket 26100-6-2413-00 Countersunk head 51004-2-0010-F0 ST4*1.41*10L cross tapping screw Live line 734S0-6-3480-00...
  • Page 44 Bearing 58006-6-1026-01 6203-2RS GCr15 Flat washer 55110-1-5030-NA D50*D10*3T Q235A Allen bolt 50308-5-0030-C0 M8x1.25x30L Flat washer 55108-1-2830-NA D28*D8.5*3T Q235A Plastic cover 803K0-6-1082-00 D3*30L Spring 58003-6-1055-N0 D2.6*15*82L 72A# Idle fixing plate 734S0-3-1600-00 Plastic flat washer 55110-1-2404-BF D10*D24*0.4T NL66 55208-2-2006-NA M8*1.25*6T Q235A Nylon nut 55208-1-2008-FA M8*1.25*8T Q235A...
  • Page 45 Inner hex cylindrical 54006-5-0035-F3 M6*1.0*35L head screw Sleeve 744S0-6-2707-00 D9.8*D6.1*20.5L Q235A Locking base 73502-6-2219-N1 71.5*20*4T Q235A Spring 58003-6-1068-N0 D1*D8*35 Moving wheel 73502-6-3886-B0 D25*D10*11.5 Bolt 50108-5-0035-F3 M8*1.25*35L Square cap 55315-2-2040-B8 20*40*15 Handrail cover (left) 744S0-6-2290-B0 188.1*64.3*117.3 Handrail cover (right) 744S0-6-2291-B0 188.1*56.8*117.3 Adjusting protective 744S0-6-1082-B0 100*69.8*45...
  • Page 46: Exploded Drawing

    Exploded Drawing RB9.9...
  • Page 47: Warranty

    WARRANTY Training equipment from Taurus® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline.
  • Page 48 Warranty Service Within the warranty period, equipment which develops faults as a result of material or manufacturing defects, will be repaired or replaced at our discretion. Ownership of equipment or parts of equipment which have been replaced is transferred to us. The warranty period is not extended nor does a new warranty period begin following repair or replacement under the warranty.
  • Page 49: Contact

    CONTACT TECHNIK TEKNIK OG SERVICE TECHNIQUE & SERVICE �� �� �� +49 4621 4210-900 80 90 16 50 +33 (0) 189 530984 +49 4621 4210-945 +49 4621 42 10 933 �� +49 4621 4210-698 �� �� info@fitshop.dk info@fitshop.fr �� technik@sport-tiedje.de ��...
  • Page 50 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA The Sport-Tiedje Group is Europe’s largest http://www.powerhouse-fitness.co.uk/ specialist for home fitness equipment with www.powerhouse-fitness.co.uk/blog/ currently 70 stores and one of the world’s most renowned online mail order companies for fitness equipment. https://www.facebook.com/powerhousefitness.co.uk Powerhouse Fitness is part of the Sport-Tiedje Group.
  • Page 52 Recumbent bike RB9.9...
