Operating Principle - AJAX Motion Protect User Manual

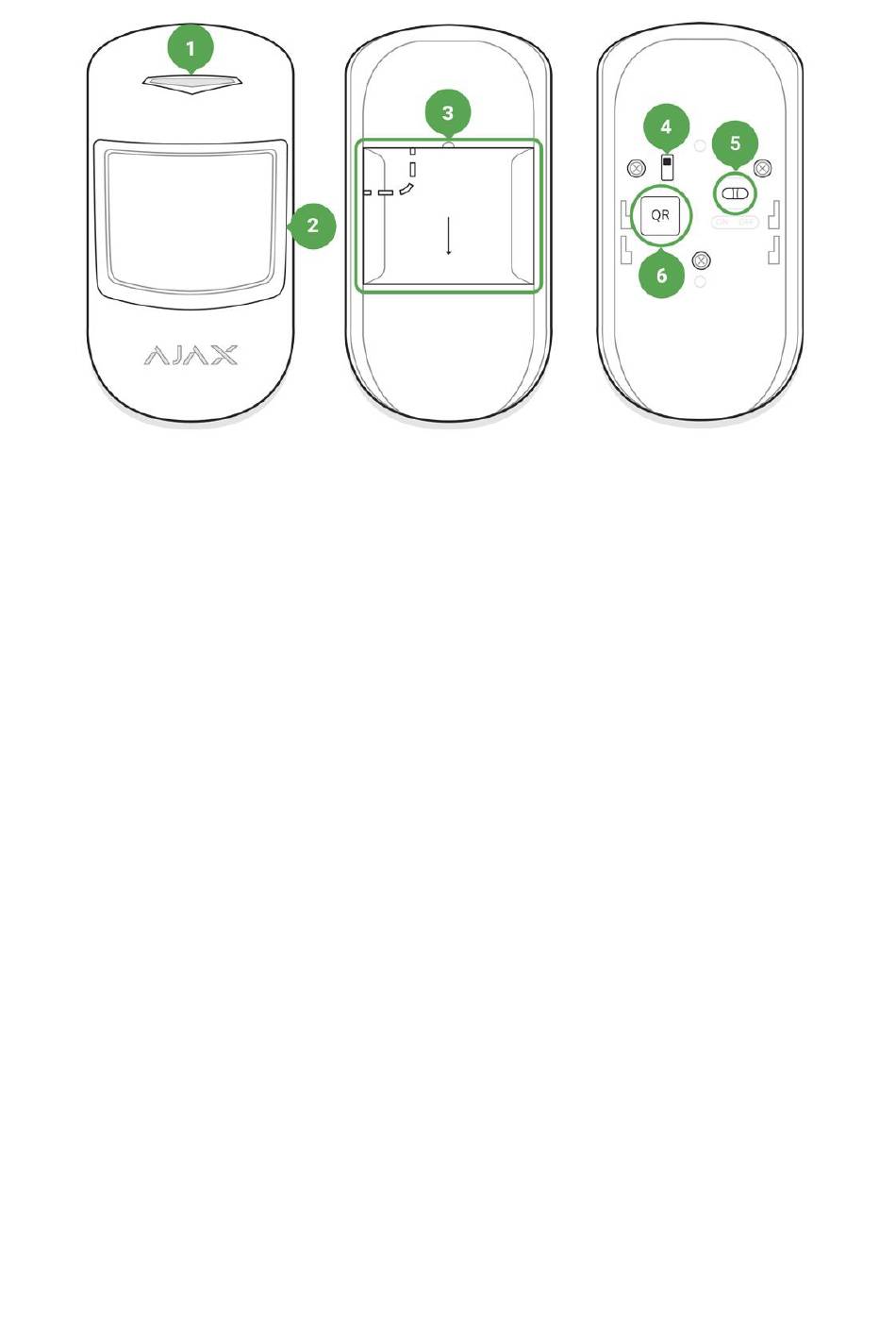

1. LED indicator
2. Motion detector lens
3. Smart Bracket attachment panel (perforated part is required for actuating
the tamper in case of any attempt to dismantle the detector)
4. Tamper button
5. Device switch
6. QR code

Operating Principle

Thermal PIR sensor of Motion Protect detects intrusion into protected room
by detecting moving objects whose temperature is close to the temperature
of the human body. However, the detector can ignore domestic animals if
the suitable sensitivity has been chosen in the settings.
After actuation, the armed detector immediately transmits an alarm signal
to the hub, activating the sirens and notifying the user and Security
Company.
If before arming the system, the detector has detected motion, it will not
arm immediately, but during the next inquiry by the hub.
