MotionCam User manual

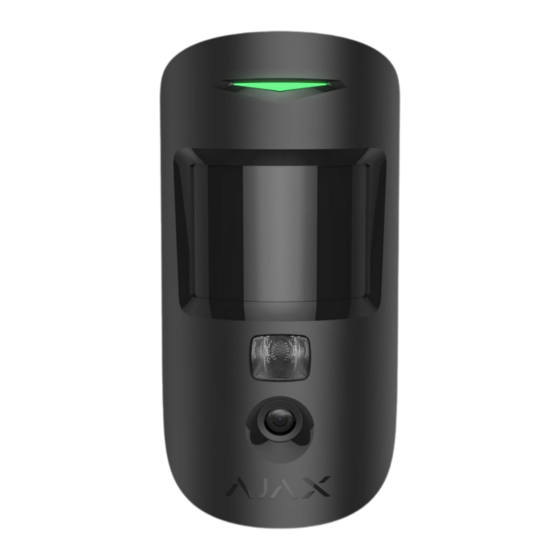

MotionCam Jeweller is a wireless motion detector that supports photo veri cation.
Intended for indoor installation. It can recognize movement at a distance of up to
12 meters. Ignores pets when installed and con gured correctly.
A hub is required for the detector to operate.
List of compatible hubs and range extenders
MotionCam works as part of the Ajax security system, communicating with the hub
over two secure radio protocols: the detector uses Jeweller to transmit alarms and
events and Wings to transmit photos. The hub communication range is up to 1,700
meters without obstacles.
Buy MotionCam detector with photo veri cation
Updated January 27, 2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MotionCam Jeweller and is the answer not in the manual?

Questions and answers

Related Manuals for AJAX MotionCam Jeweller

Summary of Contents for AJAX MotionCam Jeweller

  • Page 1 MotionCam User manual Updated January 27, 2023 MotionCam Jeweller is a wireless motion detector that supports photo veri cation. Intended for indoor installation. It can recognize movement at a distance of up to 12 meters. Ignores pets when installed and con gured correctly.

  • Page 2: Functional Elements

    . Triggers when somebody attempts to detach the detector from the surface or remove it from the mounting panel. 8. Power button. 9. Detector’s QR code/identi er. It is used to connect the device to the Ajax security system. Compatible hubs and range extenders...

  • Page 3: Operating Principle

    00:00 00:12 MotionCam Jeweller is a wireless motion detector supporting photo veri cation. It detects motion with a build-in infrared sensor by capturing moving objects with a temperature close to that of the human body. After motion is detected, the built-in...
  • Page 4 All MotionCam alerts and events are recorded in the noti cation feed of the Ajax app. Users know exactly where motion is detected. The noti cations contain the name...
  • Page 5 Learn more about Ajax motion detectors Photo veri cation The detector alarms in the Ajax apps are accompanied by photos or an animated series, depending on the selected viewing mode. The detector takes a photo only when armed. version of the detector...
  • Page 6 A series of photos are played back in the application as animation. It helps to evaluate the unfolding of the incident over time. You can also view all the photos individually by clicking on the icon at the bottom of the screen. The detector has infrared backlight for shooting in the dark, which activates when there is insu cient light.
  • Page 7 The protocols support oating key block encryption and device recognition on every session to prevent sabotage and spoo ng. To monitor connection with system devices and display their statuses Ajax apps have a system of hub–detector polls with a frequency of 12 to 300 seconds. The polling frequency is set by the user or PRO with administrator rights.

  • Page 8: Temperature Compensation

    Photo delivery time The photo delivery time to Ajax apps depends on the selected resolution, detector connection method (to the hub directly or via the range extender), Wings signal strength, and the Internet connection speed. The alarm messages are delivered immediately.

  • Page 9: Pet Immunity

    Why motion detectors react to animals and how to avoid this How to install MotionCam correctly Sending events to the CMS The Ajax security system can transmit alarms to the PRO Desktop monitoring app as well as the Central Monitoring Station (CMS) using SurGard (Contact ID), SIA DC-09 (ADM-CID), ADEMCO 685, and other proprietary protocols.

  • Page 10: Adding To The System

    Addressability of Ajax devices allows you to send not only events but also the type of the device, the name assigned to it, and the room to the PRO Desktop or to the CMS.
  • Page 11 3. Make sure that the hub is on and has Internet access via Ethernet, Wi-Fi, and/or mobile network. You can do this in the Ajax app or by looking at the LED on the hub casing. It should light up white or green.
  • Page 12 ReX 2 in the range extender settings. How to connect a device to ReX 2 The detector connected to the hub will appear in the list of hub devices in the Ajax app. Refreshing the device statuses in the list depends on the Jeweller (or Jeweller/Fibra) settings.
  • Page 13 No connection with the hub or range extender via the Jeweller protocol. No connection with the hub or range extender via the Wings protocol. The detector battery is low. Icons The icons represent some of MotionCam statuses. You can check them in the Ajax app in the Devices tab. Icon Meaning Jeweller signal strength —...
  • Page 14 MotionCam has tamper triggering events temporarily deactivated. Learn more States The states include information about the device and its operating parameters. The states of MotionCam can be found in the Ajax app: 1. Go to the Devices tab. 2. Select MotionCam from the list.
  • Page 15 Parameter Meaning Click to open the list of MotionCam malfunctions. Malfunction The eld is displayed if a malfunction is detected. Detector temperature. Measured on the processor and changes gradually. Acceptable error between the value in the app and the room temperature — 2°C. The value is updated as soon as the detector Temperature identi es a temperature change of at least 2°C.
  • Page 16 O ine — the detector is not connected to the hub/range extender. The battery charge level of the device: ОK Battery low When the batteries are low, the Ajax apps and the security company will receive appropriate noti cations. Battery Сharge After sending a low battery noti cation, the detector can work for up to 2 months.
  • Page 17 Delay when entering (alarm activation delay) is the time the user has to disarm the security system after entering the secured area. Learn more Delay time when leaving: 5 to 120 seconds. Delay when leaving (arming delay) is the time the user has to leave the secured area after arming.
  • Page 18 Detector ID. Also available on the QR code on the Device ID detector enclosure and the packaging. Device № Device loop (zone) number. Settings To change the MotionCam detector settings in the Ajax app: 1. Go to the Devices tab. 2. Select MotionCam from the list.
  • Page 19 3. Go to Settings by clicking on the gear icon 4. Set the required settings. 5. Click Back to save the new settings. Settings Meaning Detector name. Displayed in the list of hub devices, SMS text, and noti cations in the events feed.
  • Page 20 Learn more Delay time when entering in the Night Mode: 5 to 120 seconds. Delay when entering (alarm activation delay) is the time the user has to disarm the security Delay When Entering in Night Mode, sec system after entering the premises. Learn more Delay time when leaving in the Night Mode: 5 to 120 seconds.
  • Page 21 The higher the resolution, the more detailed the image is, but it takes longer to transfer the photos. Selecting the number of photos in case of alarm: No photo 1 photo Series of 2 Photo by Alarm Series of 3 Series of 4 (only available with 320 ×...
  • Page 22 movement. Switches the detector to the Jeweller signal strength test mode. The test allows you to check the signal strength between the hub or the range extender and the detector over the Jeweller wireless data transfer Jeweller Signal Strength Test protocol to determine the optimal installation location.

  • Page 23: Led Indication

    Opens the MotionCam User Manual in the Ajax User Guide app. Allows the user to disable the device without removing it from the system. Two options are available: Entirely — the device neither executes system commands nor participates in automation scenarios, and the system ignores device alarms and other noti cations.

  • Page 24: Functionality Testing

    00:00 00:02 Indication upon pressing the power button LED indication Event Lights up green. Turning the detector on. Lights up red and then ashes three times. Turning the detector off. Enabled detector indication LED indication Event Note Motion alarm/tamper The detector records movement Lights up green for 1 second.

  • Page 25: Detector Placement

    The Ajax security system offers several types of tests to help you choose the right installation place for the devices. MotionCam tests do not start straight away but not later than over a single hub — detector polling period (36 seconds under default settings of the hub).

  • Page 26: Signal Strength

    Consider the MotionCam placement recommendations when designing the security system project for your object. The security system must be designed and installed by specialists. The list of authorized Ajax partners is available here Signal strength...
  • Page 27 Direction of the detector lens. Detector and camera viewing angles. Any obstacles that obstruct the view of the detector or its camera. It is recommended for the lens of the detector to be aimed perpendicular to the intended path of intrusion into the premises. Ensure that furniture, house plants, vases, decorative or glass elements do not obstruct the view of the detector.

  • Page 28: Installation And Connection

    1. Outdoors. This can lead to false alarms and detector failure. 2. In the direction where direct sunlight hits the detector lens. This can lead to false alarms of the motion detector. 3. Opposite any objects with rapidly changing temperature — for example, electric and gas heaters.
  • Page 29 When using other fasteners, make sure they do not damage or deform the mounting panel. With the mounting panel, you can mount the MotionCam Jeweller detector on a vertical surface or in a corner of the room. SmartBracket has special holes that need to be drilled to x the panel with the bundled screws.

  • Page 30: Maintenance

    Maintenance Check the functioning of the detector on a regular basis. Clean the enclosure from dust, cobwebs, and other contaminants as they emerge. Use a soft dry cloth suitable for equipment care. Do not use substances that contain alcohol, acetone, gasoline, and other active solvents to clean the detector.
  • Page 31 Tampering alarm Jeweller — for transmitting events and alarms. Learn more Radio communication protocols with Ajax detectors and devices Wings — for transmitting photos. Learn more 866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz Radio frequency band 915.85 –...

  • Page 32: Complete Set

    Up to 75% Dimensions 135 × 70 × 60 mm Weight 167 g Service life 10 years Compliance with standards Complete Set 1. MotionCam Jeweller. 2. SmartBracket mounting panel. 3. 2 CR123A batteries (pre-installed). 4. Installation kit. 5. Quick Start Guide.

  • Page 33: Warranty

    2 years after purchase and does not extend to the bundled battery. If the device does not function correctly, please contact the Ajax Technical Support rst. In most cases, technical issues can be resolved remotely. Warranty Obligations...
