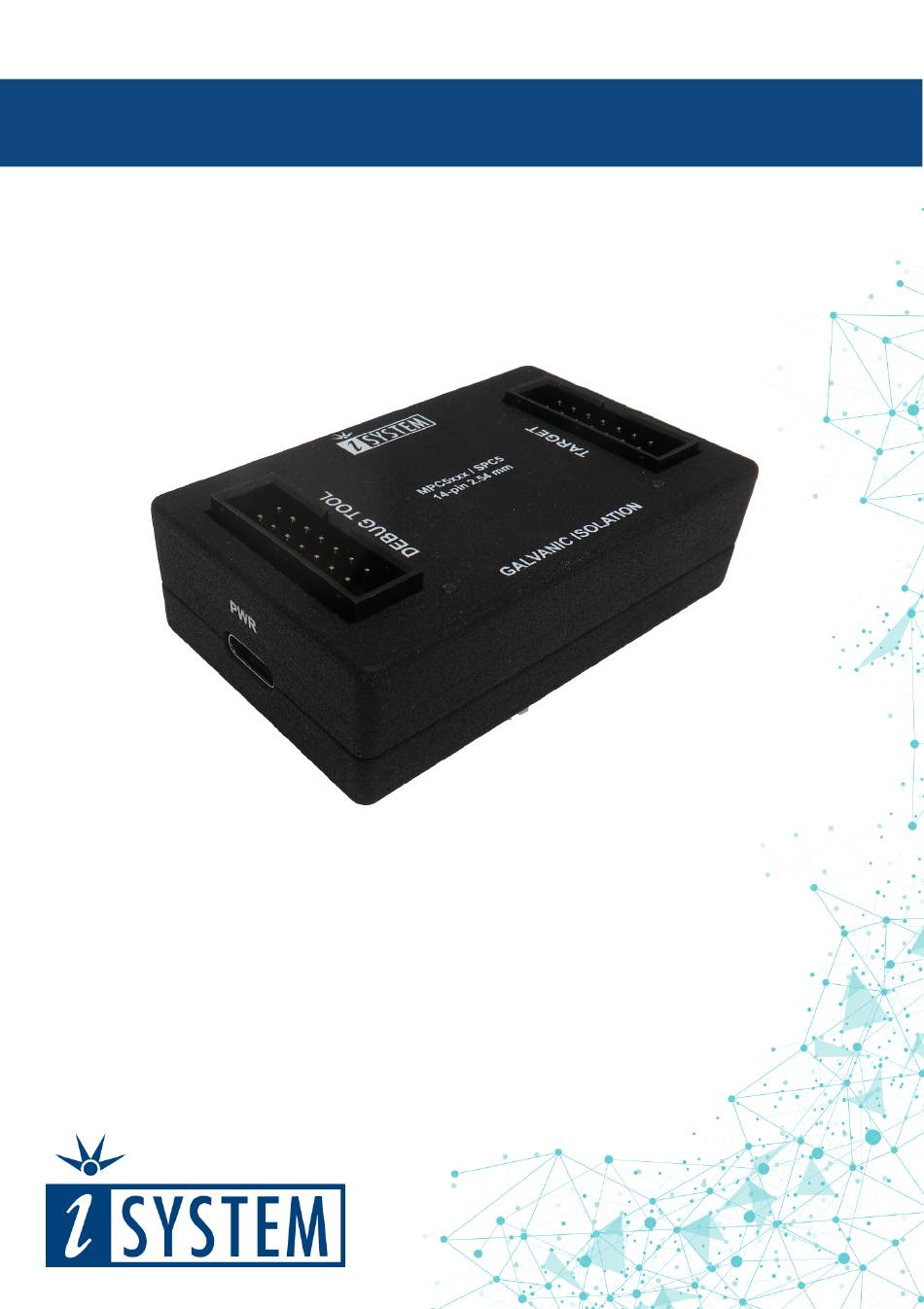

- Page 1 MPC5xxx/SPC5 Galvanic Isolation Adapter V1.2 User Manual November 2022...
- Page 2 This document and all documents accompanying it are copyrighted by iSYSTEM AG and all rights are reserved. Duplication of these documents is allowed for personal use. In all other cases, written consent from iSYSTEM is required. iSYSTEM AG. All rights reserved.
-
Page 3: Table Of Contents
Contents MPC5xxx/SPC5 14-pin 2.54mm Galvanic Isolation Adapter Package content ............................5 Specifications ............................6 Device overview ............................7 Connecting procedure ..........................9 Accessories ............................. 10 User Notes .............................. 11... -
Page 4: Mpc5Xxx/Spc5 14-Pin 2.54Mm Galvanic Isolation Adapter
Galvanic isolation is also used for safety, preventing accidental current from reaching ground through a person's body. iSYSTEM Galvanic Isolation Adapters provide a basic isolation that withstands high voltages. To prevent injury to personnel when dealing with potentially hazardous voltages it is mandatory to have a second protection measure in place, in case the first insulation barrier fails. -
Page 5: Package Content
Package content MPC5xxx / SPC5 14-pin 2.54 mm Galvanic Isolation Adapter is delivered with the following components: MPC5xxx / SPC5 14-pin 2.54 USB-C Power supply Ribbon cable Galvanic Isolation Adapter Ordering code: Ordering code: Ordering code: IEA-GI-MPC IT5V2AUSBC-PS IA14PIN14PIN254-10 User Manual... -
Page 6: Specifications
Specifications GENERAL Operating temperature 10°C to 40°C Storage temperature -10°C to 60°C MECHANICAL Size 65 x 40 x 19 mm Weight approx. 55 g ELECTRICAL Isolation Type Basic Isolation Ratings 1 kVrms VIORM * 560 V peak DEBUG TOOL SIDE Supply Voltage 5 V (via attached power supply) Max Supply Current... -
Page 7: Device Overview
The side face of the Galvanic Isolation Adapter features: D – USB-C Power supply socket (PWR). Use only original iSYSTEM USB-C Power supply for powering and connecting with the GI Adapter, otherwise the primary functionality of the GI Adapter would be counteracted. - Page 8 Pinout The following pinout is valid on the target side: Signal Signal Description Signal Signal Signal Description Signal Direction Direction JTAG Ground JTAG Ground JTAG Ground Nexus Event Input nEVTI(EVTI0) PORST Power On Reset Reset nRESET JTAG Reference Voltage Vref Ground Not Connected JCOMP...
-
Page 9: Connecting Procedure
5. Connect 1:1 Ribbon cable to the embedded target. 6. Connect BlueBox, GI Adapter and Target to the power supply. Use only original iSYSTEM USB-C Power supply for powering and connecting with the GI Adapter, otherwise the primary functionality of the GI Adapter would be counteracted. -
Page 10: Accessories
14-pin 2.54 mm MPC5xxx Debug Adapter IASAM34MPCPIN14 14-pin 2.54 mm JTAG Adapter Please refer to the iC5700 BlueBox User Manual for all current iC5700 Accessories. Find more information on www.isystem.com or contact sales@isystem.com. To reach for technical support, please visit www.isystem.com/support. -
Page 11: User Notes
User Notes This page is intentionally left blank. - Page 12 Whilst iSYSTEM reserves the right to make changes to its products and/or the specifications detailed herein, it does not make any representations or commitments to update this document.
