Front Color LED
Green
Dark Blue
Light Blue and Dark
Blue
Red
Orange
Gray
Yellow
1.4

Block Diagram

Figure 1-3 shows the block diagram of the FLIK board.
FLIK Getting
Started Guide

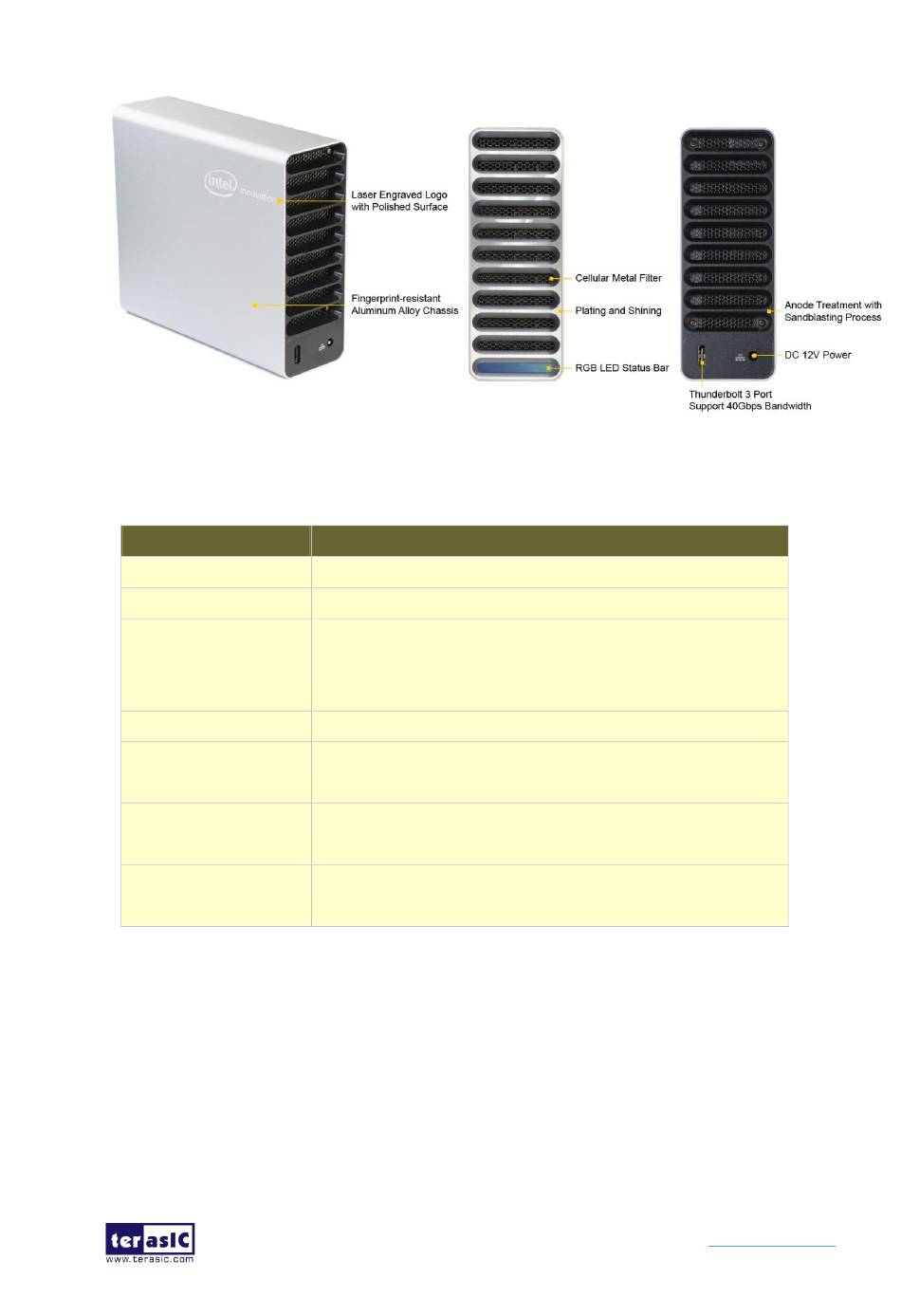

Figure 1-2 FLIK View
Table 1-1 Front Color LED Indication
FLIK is power on but not connected to Host PC.
FLIK is just connected to the Host PC
FLIK is connected to the Host PC and show the power
consumption status. More Light Blue means more power
is consumed.
FPGA power is shut down due to over temperature.
FPGA power is shut down due to power consumption
exceeds expectation.
FPGA power is shut down due to FPGA power
consumption exceeds expectation.
FLIK is disconnected and will be auto shutdown in 60
seconds.
Description
