6: Setup Mode: Channel Configuration
This chapter explains how to configure the serial port.
Notes:
Current values display in parenthesis.
You must enter some values in hexadecimal notation.
(See A: Converting Binary to Hexadecimal.)
Channel 1 (Option 1)
Select Channel 1 (option 1) from the Change Setup menu to define how the serial
port responds to network and serial communications. The following sections describe
the configurable parameters within the Channel configuration menu.
Baudrate
The unit and attached serial device, such as a modem, must agree on a speed or
baud rate to use for the serial connection. Valid baud rates are 300, 600, 1200, 2400,
4800, 9600 (default), 19200, 38400, 57600, 115200, and 230400 bits per second.
DeviceLinx™ XPort Direct/XChip Direct SoC User Guide

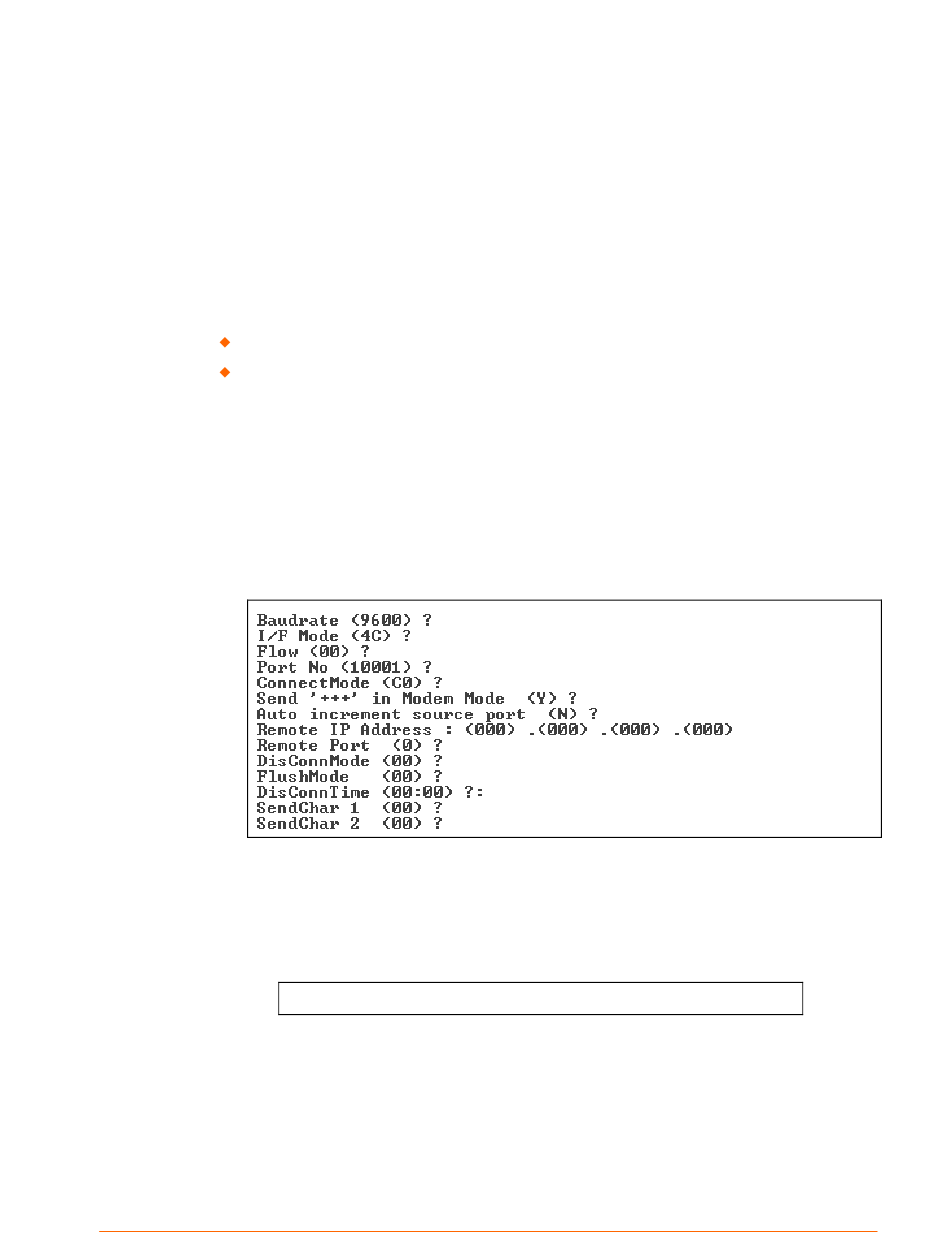

Figure 6-1. Serial Port Parameters
Baudrate (9600) ? _
