Electrical Connections for Probe 2

Design of the Electrical Connections
Electrical Connection with Harting Connector
WARNING
Corrosion risk!
The probe tube heater of probe 2 must be switched on immediately after
assembly has been completed, since otherwise there is a risk of corrosion.
Probe Version
heated, 650 W
partially heated, 255 W

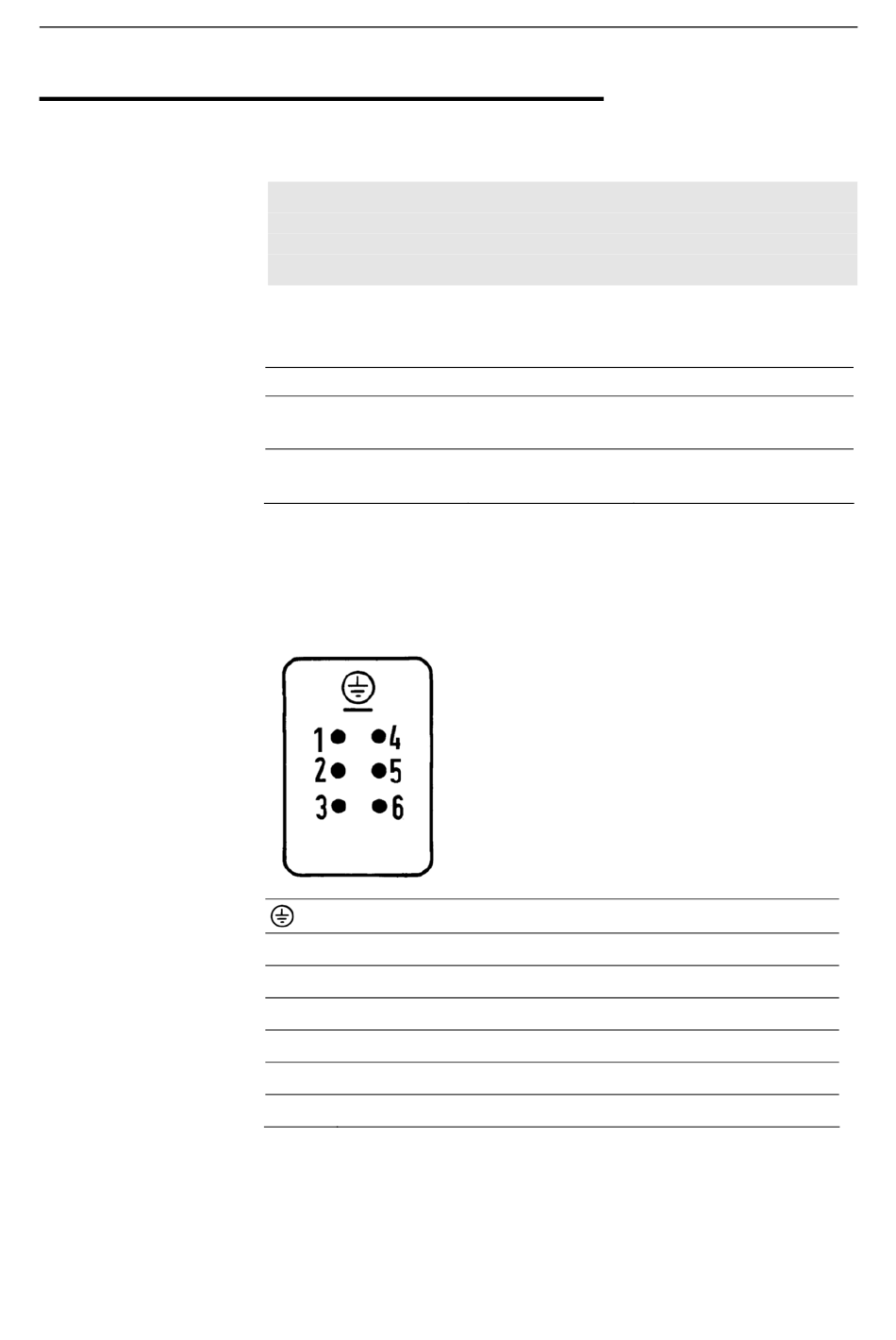

The Harting connector for connection to a power supply has the following pin
assignment:
PE
1 N
2 L1
Not assigned
3
4 Not assigned
5 Not assigned
6 Not assigned
Catalog No. Electrical Connection
23022-4-0768301 Harting connector, degree of
protection IP55 (see below)
Silicone cable, 3 × 1.5 mm
23022-4-0768305
length 1000 mm
