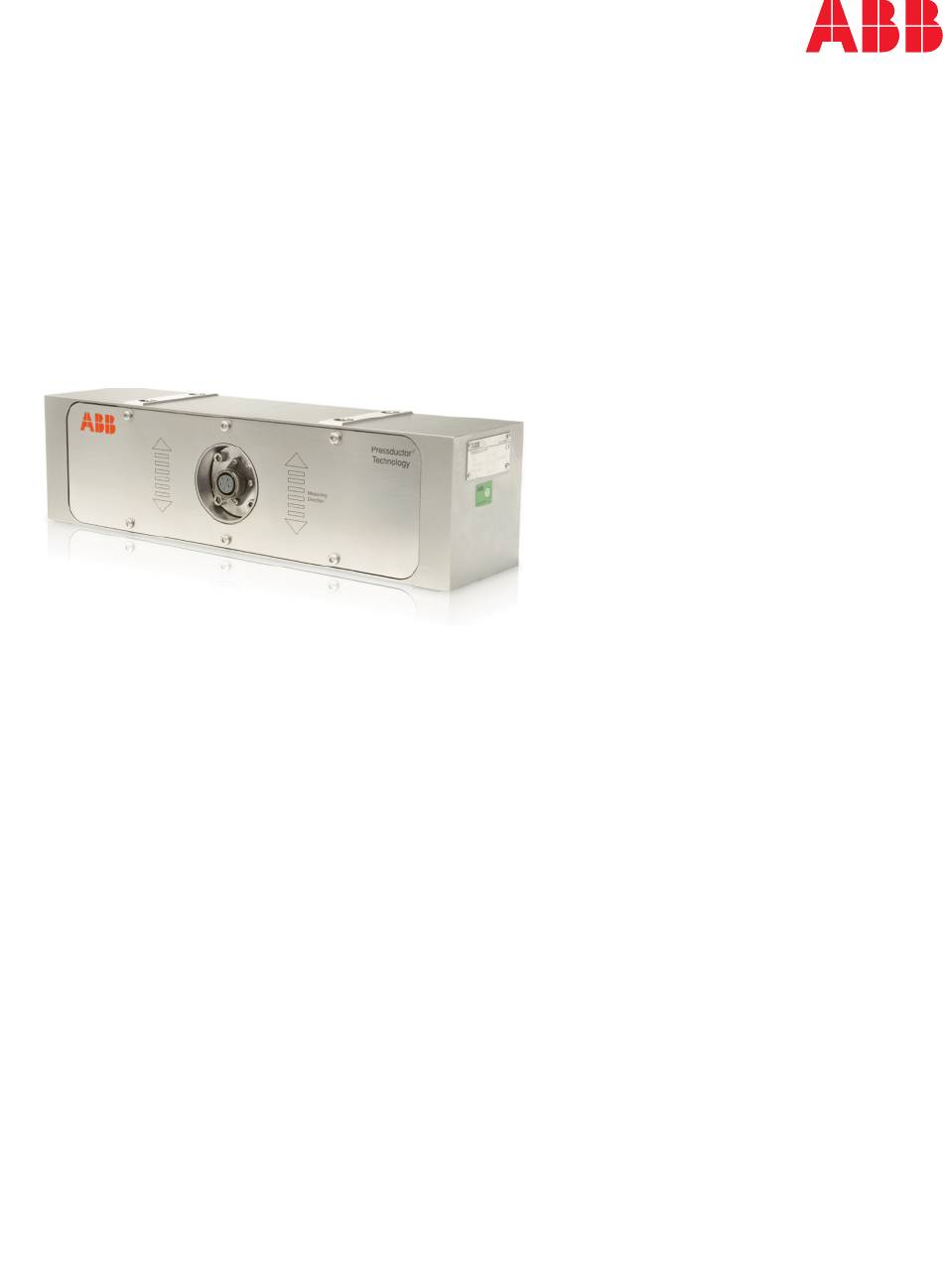

- Page 1 — A B B M E A S U R E M E N T & A N A LY T I C S Pressductor Pillowblock Load Cells Vertical Measuring PFCL 201 User manual 3BSE023881R0101 en Rev H...
- Page 2 AB. ABB AB assumes no responsibility for any errors that may appear in this document. In no event shall ABB AB be liable for direct, indirect, special, incidental or consequential damages of any nature or kind arising from the use of this document, nor shall ABB AB be liable for incidental or consequential damages arising from use of any software or hardware described in this document.
-
Page 3: Table Of Contents
Recycling the Transport Material..............6 1.2.4 Disposal of the Product................. 6 Function and Design..................6 1.3.1 General......................6 1.3.2 Load Cells PFCL 201..................7 1.3.3 Principle of Measurement................7 Description General......................9 Technical Data.................... 10 Definitions....................11 Measuring principle of the sensor..............14 Mounting Arrangement................ - Page 4 Drawings Load Cell PFCL 201C, Dimension Drawing..........29 Load Cell PFCL 201CE, Dimension Drawing..........30 Load Cell PFCL 201CD, Dimension Drawing..........31 Adapter Plate Upper PFCL 201, Dimension Drawing........32 Adapter Plate Lower PFCL 201, Dimension Drawing........33 Alphabetical index...
-
Page 5: Introduction
1.2.1 Environmental Policy ABB is committed to its environmental policy. We strive continuously to make our products envi- ronmentally more sound by applying results obtained in recyclability and life cycle analyses. Prod- ucts, manufacturing process as well as logistics have been designed taking into account the envi- ronmental aspects. -
Page 6: Recycling The Transport Material
1.2.3 Recycling the Transport Material ABB designs all transport material to be recyclable where practical. The recycling of the transport material depends on the material type and availability of local recycling programs. After receiving the system into the site, the package and the transportation locking have to be removed. -
Page 7: Load Cells Pfcl 201
Pressductor PillowBlock Load Cells, Vertical Measuring PFCL 201, User Manual 1 Introduction Load cells Load cell cabling Adapter plates Control unit Junction box Output signals INDIVIDUELL A Sum A+B SUMMATION A+B Differential A-B DIFFERENS A-B INDIVIDUELL B Figure 1. Complete Measuring System 1.3.2... - Page 8 Pressductor PillowBlock Load Cells, Vertical Measuring PFCL 201, User Manual 1 Introduction Wrap angle Wrap angle Figure 2. Measuring Roll with Force Vectors 3BSE023881R0101 en Rev H...
-
Page 9: Description
Pressductor PillowBlock Load Cells, Vertical Measuring PFCL 201, User Manual 2 Description Description General The load cell is machined from a single piece of stainless steel. The sensors are machined directly in the piece of steel and are positioned so that they are sensitive to force in the direction of meas- urement and insensitive in other directions. -
Page 10: Technical Data
Pressductor PillowBlock Load Cells, Vertical Measuring PFCL 201, User Manual 2 Description Figure 5. Load Cell PFCL 201CD with insulated cable connection Technical Data Table 1 Technical Data Load Cell PFCL 201 PFCL 201 Type Data Unit Nominal Loads Nominal load in measuring direc-... -
Page 11: Definitions
Pressductor PillowBlock Load Cells, Vertical Measuring PFCL 201, User Manual 2 Description Material C/CD/CE Stainless steel SIS 2387 DIN X4CrNiMo 165 Accuracy Accuracy class C/CD/CE ± 0,5 Linearity deviation < ± 0,3 Repeatability error < ± 0,05 Hysteresis <0,2 Compensated temperature range +20 - +80 °C... - Page 12 Pressductor PillowBlock Load Cells, Vertical Measuring PFCL 201, User Manual 2 Description Signal Rated output value at nominal load Sensitivity Force Figure 6. Sensitivity Accuracy and Accuracy Class Accuracy class is defined as the maximum deviation, and is expressed as a percentage of the sen- sitivity at nominal load.
- Page 13 Pressductor PillowBlock Load Cells, Vertical Measuring PFCL 201, User Manual 2 Description Repeatability error Repeatability error is defined as the maximum deviation between repeated readings under identical conditions. It is expressed as a percentage of the sensitivity at nominal load.
-
Page 14: Measuring Principle Of The Sensor
Pressductor PillowBlock Load Cells, Vertical Measuring PFCL 201, User Manual 2 Description Measuring principle of the sensor The measuring principle of the sensor is based on the Pressductor ® technology and the fact that the permeability of a magnetic material changes under mechanical stress. -
Page 15: Horizontal Mounting
Pressductor PillowBlock Load Cells, Vertical Measuring PFCL 201, User Manual 2 Description Where direction designations R, V and A are recognized as suffixes for force components, F, this represents the force component in the respective direction. The suffix R may be omitted, when measuring direction is implied by the context. -
Page 16: Inclined Mounting
Pressductor PillowBlock Load Cells, Vertical Measuring PFCL 201, User Manual 2 Description Figure 12. Horizontal mounting 2.5.3 Inclined Mounting Inclined mounting means arrangements in which the load cell is inclined relative to the horizontal plane. In some cases this is the only option. -
Page 17: The Electrical Circuit
Pressductor PillowBlock Load Cells, Vertical Measuring PFCL 201, User Manual 2 Description β α φ γ Figure 13. Inclined mounting The Electrical Circuit The electrical circuit of the load cell is shown in the diagram below. Secondary circuit (signal) 0.5 A/330 Hz... -
Page 18: Installation
See adapter plates in Drawings. Unpacking When the equipment arrives, check against the delivery document. Inform ABB of any complaint, so that errors can be corrected immediately and delays avoided. Preparations Prepare the installation in good time by checking that the necessary documents and material are available, as follows: •... -
Page 19: Mounting
Pressductor PillowBlock Load Cells, Vertical Measuring PFCL 201, User Manual 3 Installation • Locking fluid (medium strength) to lock mounting screws. • Screws as listed in Table 2. page 19 Table 3. page 19 to secure the load cell, and other screws for bearing housings etc. -
Page 20: Cabling For Load Cell Pfcl 201Ce
Pressductor PillowBlock Load Cells, Vertical Measuring PFCL 201, User Manual 3 Installation Roll Bearing housing Upper adapter plate Load cell Pressductor System Lower adapter plate Foundation Figure 15. Typical installation Cabling for Load Cell PFCL 201CE Cabling with protective hose shall be mounted so that the forces related to the weight of the cable/ hose do not act in the measuring direction of the load cell. - Page 21 Pressductor PillowBlock Load Cells, Vertical Measuring PFCL 201, User Manual 3 Installation Pressductor Technology Figure 17. Possible directions of cable for PFCL 201CE CAUTION Cable bending is not allowed in the connection Pressductor Technology Figure 18. Cable bending, wrong installation...
-
Page 22: Commissioning
Pressductor PillowBlock Load Cells, Vertical Measuring PFCL 201, User Manual 4 Commissioning Commissioning General The actual procedure for commissioning a load cell is simple, provided that the load cells and cables have been properly installed. Commissioning of the control unit is described in the relevant chapter of the control unit manual. -
Page 23: Maintenance
Pressductor PillowBlock Load Cells, Vertical Measuring PFCL 201, User Manual 5 Maintenance Maintenance General Strip Tensiometer Systems with Pressductor ® load cells are extremely reliable and do not require daily servicing. As a preventive measure, checks should be done periodically on all parts subject to mechanical wear. - Page 24 Pressductor PillowBlock Load Cells, Vertical Measuring PFCL 201, User Manual 5 Maintenance Load cell Load cell PFCL 201CD 10,0 3BSE029774R10 Load cell Load cell PFCL 201CD 20,0 3BSE029774R20 Load cell Load cell PFCL 201CD 50,0 3BSE029774R50 3BSE023881R0101 en Rev H...
-
Page 25: Fault Tracing
Pressductor PillowBlock Load Cells, Vertical Measuring PFCL 201, User Manual 6 Fault Tracing Fault Tracing General It is important to be thoroughly familiar with the description of operation in 2 Description before starting fault tracing. Interchangeability The load cells are factory calibrated and can be replaced directly with another load cell of the same type. -
Page 26: Fault Tracing In The Mechanical Installation
Pressductor PillowBlock Load Cells, Vertical Measuring PFCL 201, User Manual 6 Fault Tracing Fault Tracing in the Mechanical Installation There are a number of parts in the mechanical arrangement that can cause faults. The extent to which these faults are repeatable differs. Possible causes fall into the following groups. -
Page 27: Fault Tracing Of Load Cells, Junction Boxes And Wiring
Pressductor PillowBlock Load Cells, Vertical Measuring PFCL 201, User Manual 6 Fault Tracing such expansion is often taken up by splines, these must also be lubricated. The symptoms are instability of the signal, for instance jumps in the signal during slow running. -
Page 28: Drawings
Pressductor PillowBlock Load Cells, Vertical Measuring PFCL 201, User Manual Appendix A Drawings Drawings 3BSE023881R0101 en Rev H... -
Page 29: Load Cell Pfcl 201C, Dimension Drawing
Pressductor PillowBlock Load Cells, Vertical Measuring PFCL 201, User Manual Appendix A Drawings Load Cell PFCL 201C, Dimension Drawing 3BSE023881R0101 en Rev H... -
Page 30: Load Cell Pfcl 201Ce, Dimension Drawing
Pressductor PillowBlock Load Cells, Vertical Measuring PFCL 201, User Manual Appendix A Drawings Load Cell PFCL 201CE, Dimension Drawing 3BSE023881R0101 en Rev H... -
Page 31: Load Cell Pfcl 201Cd, Dimension Drawing
Pressductor PillowBlock Load Cells, Vertical Measuring PFCL 201, User Manual Appendix A Drawings Load Cell PFCL 201CD, Dimension Drawing 3BSE023881R0101 en Rev H... -
Page 32: Adapter Plate Upper Pfcl 201, Dimension Drawing
Pressductor PillowBlock Load Cells, Vertical Measuring PFCL 201, User Manual Appendix A Drawings Adapter Plate Upper PFCL 201, Dimension Drawing 3BSE023881R0101 en Rev H... -
Page 33: Adapter Plate Lower Pfcl 201, Dimension Drawing
Pressductor PillowBlock Load Cells, Vertical Measuring PFCL 201, User Manual Appendix A Drawings Adapter Plate Lower PFCL 201, Dimension Drawing 3BSE023881R0101 en Rev H... -
Page 34: Alphabetical Index
Pressductor PillowBlock Load Cells, Vertical Measuring PFCL 201, User Manual Alphabetical index Alphabetical index accuracy and accuracy class ........... 12 compensated temperature range ........13 hysteresis ................ 12 linearity deviation ............. 12 nominal load ..............11 repeatability error ............. 13 sensitivity ................. - Page 36 — ABB AB Industrial Automation Measurement & Analytics Force Measurement SE-721 59 Västerås Sweden Tel: +46 21 32 50 00 Internet: www.abb.com/striptension...
