Assembling Probe 2
Assembly of the Ceramic Inlet Filter
WARNING
Danger of breakage!
The ceramic inlet filter of probe 2 is fragile.

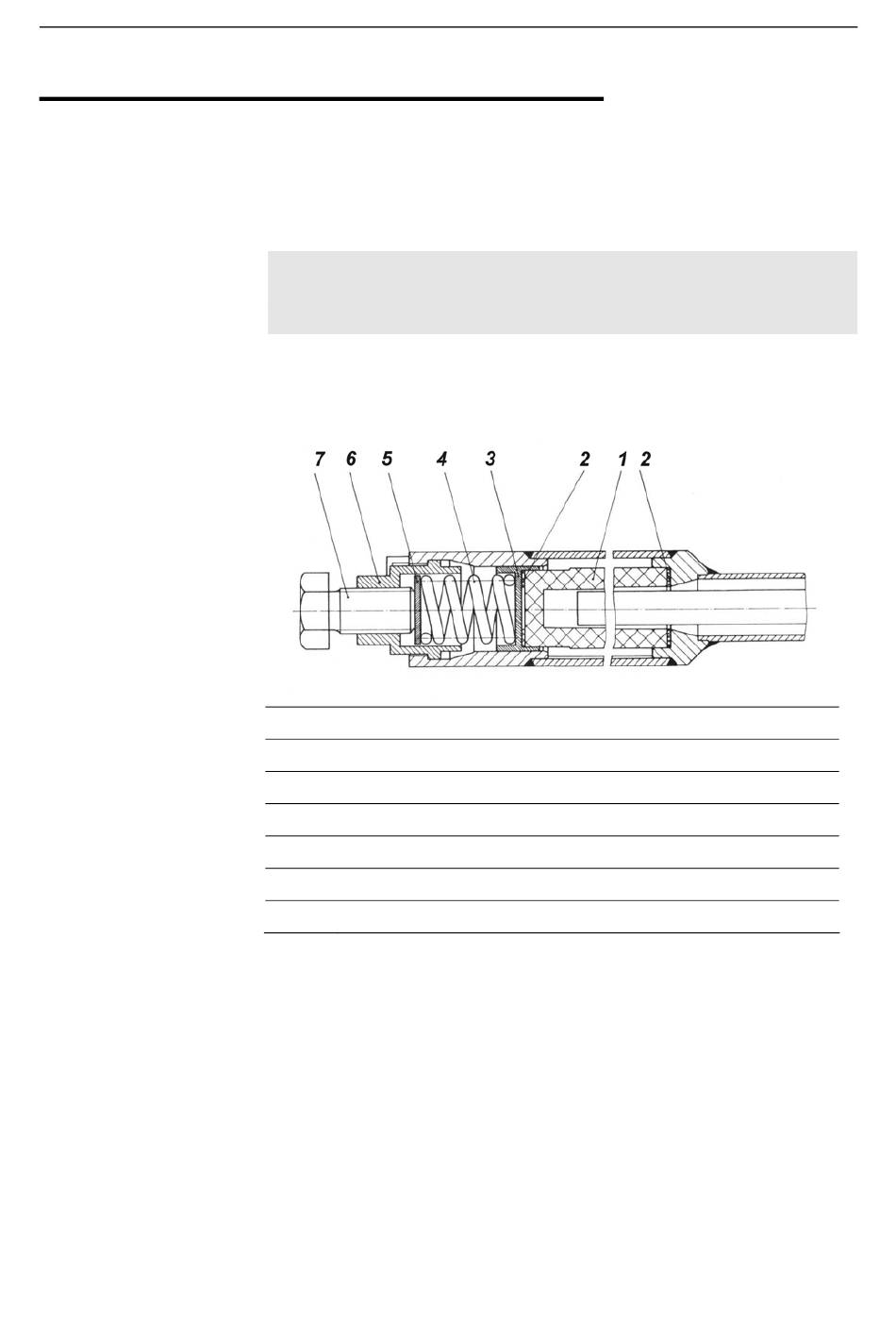

First of all, assemble the ceramic inlet filter as shown in the following drawing.
Please note that the compression spring 4 has to be compressed by approx.
15 mm.
1
Filter element
2
Sealing gasket
3
Bush
4
Compression spring
5
Pressure disk
6
Bush
7
Screw
