Assembly

Warning! Make sure that the combined weight of the monitors does not exceed
the weight capacity of this product. If you exceed the weight capacity, you might
experience personal injury or damage to the product.
This product can support the following weight: 8 kg (17.6 lb.) per monitor mount.

Assemble the lower pole

1. Thread the cable-management clip onto the pole.
2. Thread the cap onto the pole.

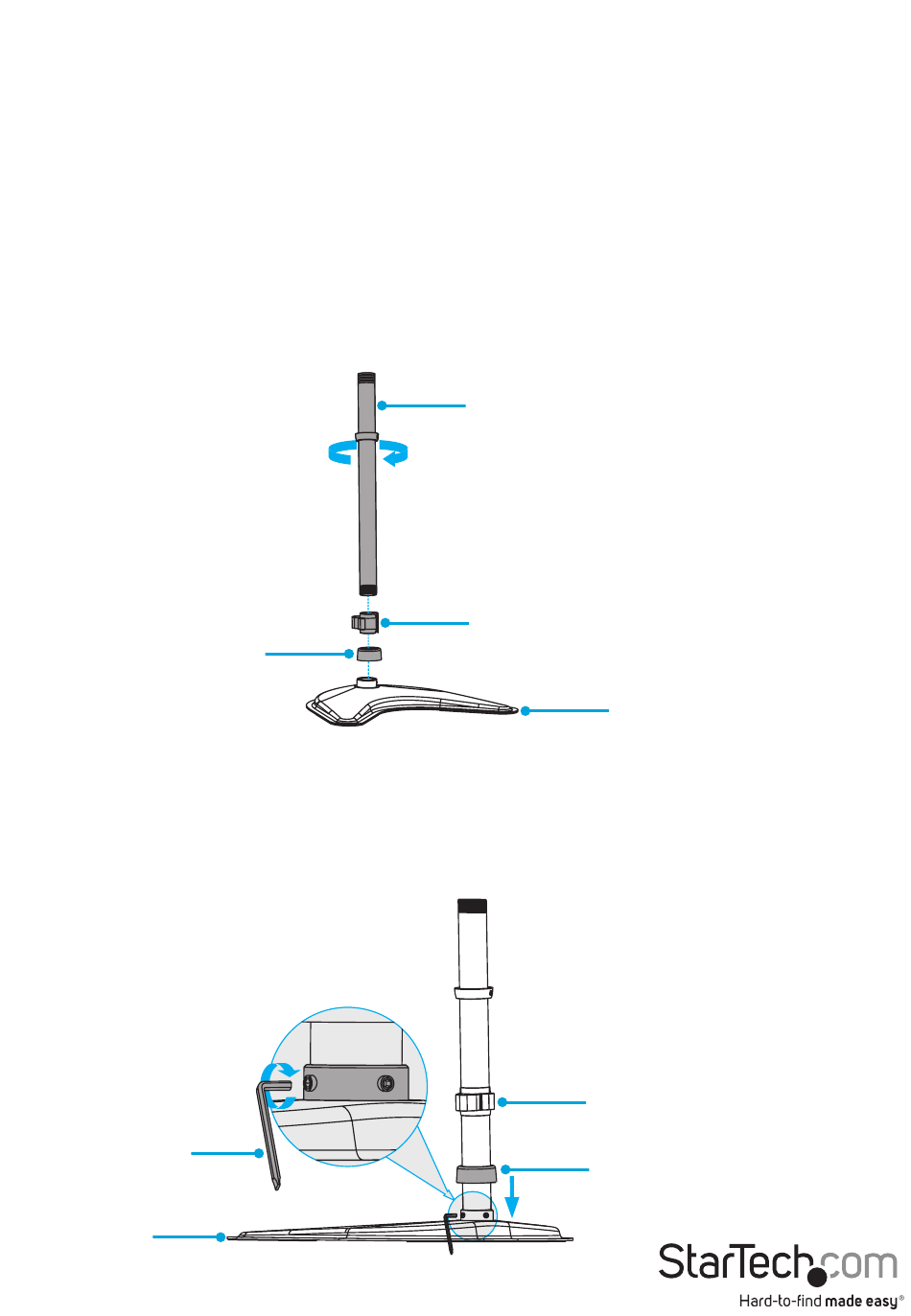

3. Screw the pole into the baseplate. (figure 1)
figure 1
Lower pole
Cable-management clip
Cap
Baseplate
4. Use the 3 mm hex key to tighten the screws and attach the pole to the baseplate.
5. Push the cap down so that it sits flush against the baseplate and covers the screws.
(figure 2)
figure 2
Cable-management clip
3 mm hex key
Cap
Baseplate
Instruction manual
