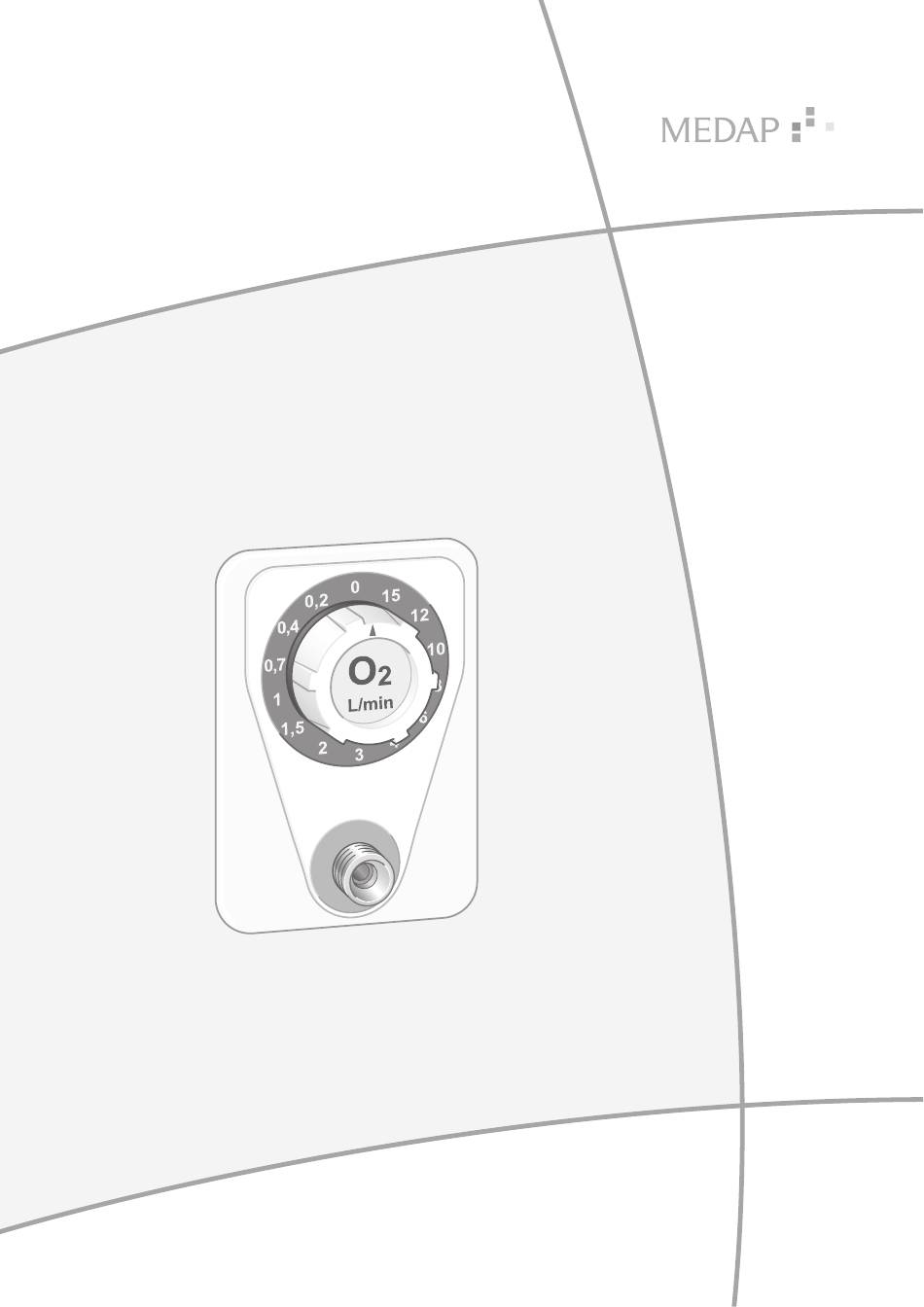

- Page 1 OPERATING INSTRUCTIONS MEDAP LS FLOW FLOWMETER INSTALLATION VERSION GA 5752 5678 GB 07...
- Page 2 Subject to technical modification! Illustrations and technical specifications may vary slightly from those in these Operating Instructions as a result of ongoing product development. V07 2019-12 GA 5752 5678 GB 07...
-
Page 3: Table Of Contents
1.2.3.2 Design of other notes ....................6 1.2.4 Symbols used ..........................6 Disposal ..............................7 1.3.1 ATMOS products .......................... 7 1.3.2 Packaging ............................ 8 Overview ..............................8 Basic requirements ............................. 8 1.5.1 Use in accordance with the intended purpose ................8 1.5.2... - Page 4 Table of contents Taking the unit out of operation ......................17 Cleaning and disinfection ........................18 General ..............................18 Special safety notes ..........................19 Cleaning ..............................19 6.3.1 General ............................19 6.3.2 Cleaning procedure ........................19 Disinfection ............................... 20 6.4.1 General ............................
-
Page 5: Introduction
Your facility has selected the leading-edge medical technology made by ATMOS. We sincerely appreciate the trust you have placed in us. How to use these operating instructions These operating instructions are provided to familiarise you with the features of this ATMOS product. They are subdivided into several chapters. Please note: •... -
Page 6: Definitions
Introduction How to use these operating instructions 1.2.3 Definitions 1.2.3.1 Design of safety notes Pictogram Descriptor Text The text for the safety note DANGER! describes the type of risk and Indicates a direct and immediate risk to how to avert it. persons which may be fatal or result in most serious injury. -
Page 7: Disposal
The product or some of its components may be contaminated after use. Clean and disinfect the product before disposal. 1.3.1 ATMOS products ATMOS will take back used products or those which are no longer in service. Please contact your ATMOS representative for more detailed information. GA 5752 5678 GB 07... -
Page 8: Packaging
Introduction Overview 1.3.2 Packaging The packaging is made of materials compatible with the environment. ATMOS will dispose of the packaging materials upon request. Overview Fig. 1: Overview 1 LS FLOW flowmeter installation version 4 Angled adapter (REF 5752 5606) 2 Tube adapter, plastic, 4 mm, 6 mm, 8 mm... -
Page 9: Applicable Standards
Introduction Basic requirements 1.5.2 Applicable standards The product satisfies the basic requirements set forth in Annex I to Council Directive 93/42/EEC concerning medical devices (Medical Devices Directive) as well as the applicable national (German) codes and the Medical Devices Act (MPG) in Germany. This is certified by compliance with harmonised standards such as IEC 60601-1 and related standards and the respective special sections. -
Page 10: Possible Applications
Introduction Basic requirements Contraindications: The LS FLOW may not be used for the following purposes: • Outside the medical sector • In MR areas • In the home care sector • Being operated directly by the patient • For exclusive respiration •... -
Page 11: Connection Tube
Introduction Basic requirements 1.5.5.2 Connection tube The connection tube with an inner diameter of 4, 6 or 8 mm is connected with the tube adapter. The connection tube may not collapse or must be pressure-resistant and must comply with the hygiene standard of the hospital. -
Page 12: Safety Notes
Air, oxygen and oxygen compounds react explosively with oils, greases and lubricants. Fire and explosion hazard due to compressed gases. Always keep the product free of oils, greases and lubricants. Only use sliding means (lubricants) approved by ATMOS for this product. DANGER! Risk of fire! Escaping oxygen increases the risk of fire. - Page 13 Safety notes Product safety notes WARNING! Non-permissible load! If the permissible load is exceeded, leakages may occur. The overall weight of the products and accessories may not exceed 2 kg. WARNING! Property damage! Product may not be dismantled or disassembled. CAUTION! Malfunction! Ensure that the connection between the product and the accessory is leak-free.
-
Page 14: Initial Operation
Initial operation Equipment inspection Initial operation Equipment inspection DANGER! Product inspection! Only product parts which are in perfect condition can ensure proper functioning of the product. The product parts will thus have to be carefully inspected before mounting. Check whether all tubes are undamaged. ... -
Page 15: Operation
Operation Function check Operation Function check DANGER! Function check! The product is used in the treatment of patients. Any restriction in the unit's performance can result in serious complications in treatment. Perform a complete function check every time before using the unit. Perform a complete function check of the tapping unit prior to use. - Page 16 Operation Setting the flow for treatment Use the rotation regulator to set the flow rate to the required value for the treatment. Increasing the flow rate Turn the rotation regulator (1) anti- clockwise. The flow rate is increased. Reducing the flow rate ...
-
Page 17: Taking The Unit Out Of Operation
Taking the unit out of operation Setting the flow for treatment Taking the unit out of operation After having completed the treatment, close the rotation regulator by turning it clockwise as far as it will go. Check to ensure it is closed. ... -
Page 18: Cleaning And Disinfection
Cleaning and disinfection General Cleaning and disinfection General The product must be wipe or spray disinfected after every use. DANGER! Risk due to incorrect use of detergents and disinfectants! It is strictly advised to observe the manufacturer’s instructions regarding how to use the detergents and disinfectants as well as to observe the valid hospital hygiene rules. -
Page 19: Special Safety Notes
Cleaning and disinfection Special safety notes Special safety notes DANGER! Material damage! Various components in the product are made of plastic materials. Solvents and some disinfectants and some cleaning agents can soften plastic or cause tension fissures. Never use detergents that contain alcohol. Observe detergent and disinfectant specifications. -
Page 20: Disinfection
Cleaning and disinfection Disinfection Disinfection 6.4.1 General NOTE In the event that product surfaces are very dirty, carry out an additional cleaning procedure before disinfecting. WARNING! Property damage! Disinfectants that contain volatile aromatic hydrocarbons, ammonia, amine, ester, halogenated hydrocarbons and / or ketone may attack plastics made of polycarbonate. -
Page 21: Disinfection Procedure
Cleaning and disinfection Disinfection Ingredient group Active ingredients Guanidine derivatives Alkyl-biguanide, chlorhexidine-digluconate, cocospropylene- diamine guanidinium diacetate, oliogomeric biguanide, polyhexamethylene biguanide hydrochloride (oligo-diimino imiodo- carbonyl imino-hexamethylene, polyhexanide) Tab. 4: Active ingredients of disinfectants 6.4.3 Disinfection procedure Wipe or spray disinfect the product in accordance with the instructions of the disinfectant manufacturer. -
Page 22: Maintenance
ATMOS recommends: Work should be carried out by an authorised ATMOS service partner. This ensures that repairs and testing are carried out professionally, original spare parts are used and warranty claims remain unaffected. -
Page 23: Repairs
Place the form QD 434 ‘Delivery complaint / return shipment’ and the respective decontamination certificate in an envelope. Affix the envelope to the outside of the package. Send the product to ATMOS or to your dealer. GA 5752 5678 GB 07... -
Page 24: Technical Specifications
Technical specifications General Technical specifications General Classification as per Annex IX to Directive 93/42/EEC Class IIa Technical specifications Input pressure 300 - 550 kPa* ± 10% Measurement range Measuring range ≤ 0.5 l/min: ±0.05 l/min Measuring range > 0.5 l/min: ±10% Indication accuracy ±... -
Page 25: Approved Accessories
Approved accessories Accessories Approved accessories The following accessories are not part of the scope of delivery and must be ordered separately: Accessories 5752 2746 Tube adapter, metal 4 mm, 6 mm, 8 mm 5752 5316 Tube adapter, plastic 4 mm, 6 mm, 8 mm 5752 5315 Bubble humidifier 5752 5606... - Page 26 Notes...
- Page 27 Notes...
- Page 28 Manufacturer: ATMOS MedizinTechnik GmbH & Co. KG Ludwig-Kegel-Str. 16 79853 Lenzkirch GERMANY Phone: +49 7653 689-0 www.atmosmed.com...
