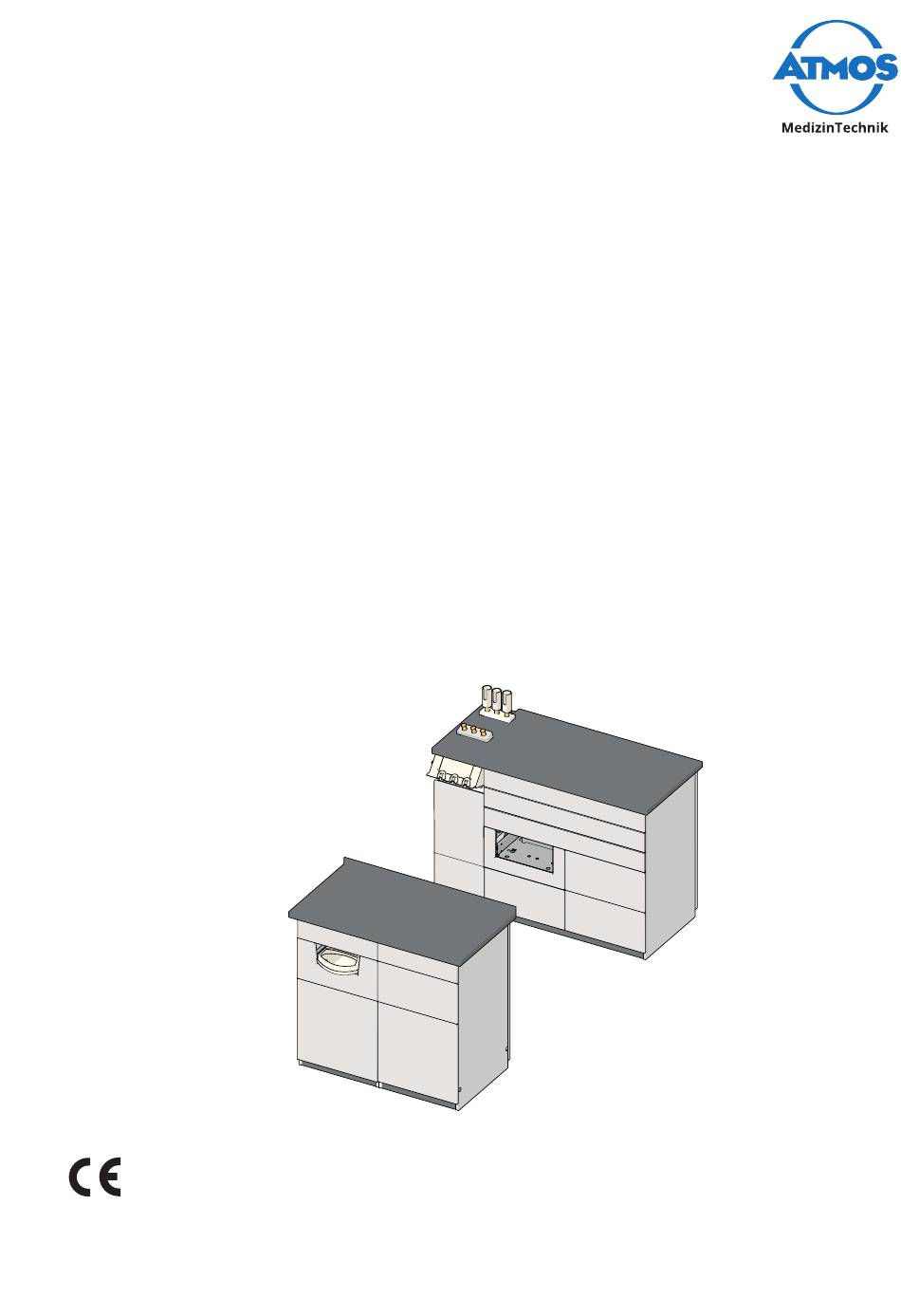

- Page 1 Operating Instructions ATMOS® S 61 CORIAN® instruments ATMOS® S 61 CORIAN® integral English GA1GB.110107.0 2019-02 Index 01...
-
Page 2: Table Of Contents
Device overview ....................... 11 Preparing the device ....................11 Operation ......................12 Ambient conditions during operation ..............12 Switching on the device (ATMOS® S 61 CORIAN® integral) ......... 12 4.3 Switching off the device (ATMOS® S 61 CORIAN® integral) ......... 12 Using the drawers ....................12 Using the drawer for devices (optional) ............... 13 Inserting and removing the instrument disposal tray (optional) ...... - Page 3 Accessories ......................24 Instrument management ..................24 Endoscope management ..................24 ATMOS® LED Light Cube CORIAN® ................ 24 Disposal ......................25 Technical data ....................26...
-
Page 4: Introduction
This document may only be reprinted, either in part or in whole, with written permission from ATMOS. These operating instructions must always be kept to hand near the device. -
Page 5: Explanation Of Pictures And Symbols
On device and type plate Observe the operating instructions This product complies with the relevant requirements of the EU Directives. Manufacturer Manufacturing date Serial number Order number Fuse (ATMOS® S 61 CORIAN® integral only) Alternating current (only with Servo-Drive® option) Introduction... -
Page 6: Intended Use
1.4 Function The ATMOS® S 61 CORIAN® instruments, ATMOS® S 61 CORIAN® instruments XXL and ATMOS® S 61 CORIAN® integral products provide a storage option for re-sterilised instruments and examination and therapy equipment. The drawers can be closed gently thanks to the soft-close technology or, alternatively, fitted with optional electronic assistance for opening and closing (Servo-Drive®). -
Page 7: Intended Users
(optional) 1.7 Transport and storage Only transport the device in a shipping carton that is padded and offers sufficient protection. If damage occurs during transport: 1. Document and report the transport damage. 2. Send the device to ATMOS, see Chapter “6.3 Sending in the device” on page 22. Introduction... - Page 8 Ambient conditions for transport and storage: • Temperature: -10...+50°C • Relative humidity: 30...95% without condensation • Air pressure: 500...1060 hPa Introduction...
-
Page 9: Notices For Your Safety
2 Notices for your safety Please read and pay attention to the safety instructions prior to using the product. 2.1 General safety instructions Only use accessories and options that are explicitly defined as suitable for combination with the product, and which meet the performance and safety requirements. If you wish to connect more than one device or application part, you must comply with the safety instructions for all the connected elements. -
Page 10: Avoiding Damage To The Device
Observe the specifications regarding period tests in chapter “6.1 Period tests” on page 21. • Do not change the device without the manufacturer's permission. • Only use original accessories and original spare parts from ATMOS. • Assembly, new settings, modifications, extensions and repairs may only be carried out by persons who are authorised by ATMOS. 2.3 Avoiding damage to the device Storage and operation in an unsuitable environment. -
Page 11: Setting Up And Starting Up
Stärke: 0,25 - 0,35mm F. Müller 11.01.16 Folie rückseitig mit Kleber beschichtet 1. Arrange for an authorised ATMOS service partner to connect the device. LED Light Cube Kleberfrei im Bereich der transparenten Blatt ATMOS Medizin Technik GmbH & Co. KG 060.0678.0... -
Page 12: Operation
» The ATMOS® S 61 CORIAN® integral product is now switched on. 2. If necessary, switch on the devices stored in the ATMOS® S 61 CORIAN® integral. Observe the corresponding operating instructions. 4.3 Switching off the device (ATMOS® S 61 CORIAN®... -
Page 13: Using The Drawer For Devices (Optional)
4.5 Using the drawer for devices (optional) Inserting a device 1. Press against the drawer for devices » The drawer for devices will open. 2. Insert the device 3. Close the drawer for devices Removing a device 1. Press against the drawer for devices »... -
Page 14: Using Light Sources (Optional)
4.8 Using light sources (optional) 4.8.1 Connecting the fibre optic light cable 1. Insert the fibre optic light cable into the fibre optic light cable adapter until it clicks gently into place. 4.8.2 Removing the fibre optic light cable 1. Pull the fibre optic light cable out of the fibre optic light cable adapter 4.8.3 Changing the adapter 1. -
Page 15: Storing Endoscopes (Optional)
Rigid endoscopes (optionally heated) Flexible endoscopes If your product comes with heated endoscope quivers, these will be heated for as long as the ATMOS® S 61 Servant ENT workstation remains switched on. After approx. 15 minutes, the endoscopes will reach a temperature of approx. 40°C. Operation... -
Page 16: Cleaning And Disinfection
Risk of diseases being transmitted. • Wear disposable gloves during all cleaning and disinfection work. • If the CORIAN® surface is scratched or contaminated with difficult-to-remove soiling, please contact ATMOS. • Clean and disinfect the product in accordance with the operating instructions. 5.1 Sterilising the product 5.1.1 Sterilising the endoscope quiver Sterilise the endoscope quiver daily. -
Page 17: Sterilising The Fibre Optic Light Cables
Metal sheet, coated Drawer, inside Rear Other ATMOS® LED Light Cube CORIAN® 1. Switch off the device. 2. Remove all the accessories. 3. Clean all the surfaces with a damp, clean, lintfree cloth and a cleaning agent. 4. Disinfect the surfaces with a clean, lintfree cloth and a suitable surface disinfectant;... -
Page 18: Recommended Disinfectants
ATTENTION Unsuitable disinfectant. Risk of damage to the surface, corrosion damage and stress cracks. • Only use disinfectants recommended by ATMOS. • Do not use disinfectants that contain any of the following ingredients on CORIAN® surfaces: • Strong acids (e.g. concentrated sulphuric acid) •... -
Page 19: Instrument Disinfectants
Disinfectant Ingredients In 100 g Manufacturer Perform® Pentapotassium-bis(peroxymonosulphate)- 45 g Schülke bis(sulphate) & Mayr, Norderstedt Terralin® Protect Benzyl-C12-16 alkyldimethyl-, chloride 22 g Schülke (Application & Mayr, 2-phenoxyethanol 17 g concentrate) Norderstedt aminoalkylglycine 0.9 g Non-ionic surfactants, perfumes Other surfaces Disinfectant Ingredients In 100 g Manufacturer Green &... - Page 20 Disinfectant Ingredients In 100 g Manufacturer Sekusept® PLUS glucoprotamin 25 g Ecolab, (Application Düsseldorf concentrate) Sekusept® aktiv Sodiumpercarbonate, non-ionic surfactants, Ecolab, (Application phosphonates Düsseldorf concentrate) Gigasept® Instru AF Cocospropylendiaminguanidindiacetate 14 g Schülke (Application & Mayr, Phenoxypropanols 35 g concentrate) Norderstedt Benzalkonium chloride, 2.5 g Non-ionic surfactants, pH-value regulators, corrosion inhibitors...
-
Page 21: Maintenance And Service
ATMOS® S 61 CORIAN® integral 1. Check whether the fibre optic light cable adapters are connected correctly. 2. Connect the fibre optic light cables or check whether the fibre optic light cables are connected properly. 3. Switch on the device and check whether all the LEDs on the ATMOS® LED Light Cube CORIAN® control panel light up. 4. Point each fibre optic light cable at a white surface and check whether the light source lights up. Maintenance and service... -
Page 22: Sending In The Device
5. The device must be well padded and packed in suitable packaging. 6. Place the QD 434 “Delivery complaint/return shipment” form and the corresponding decontamination certificate in an envelope. 7. Affix the envelope to the outside of the package. 8. Send the product in to ATMOS or your dealer. 22 Maintenance and service... -
Page 23: Troubleshooting
Error symptom Possible cause Remedy No light Device is not switched 1. Switch on the device. Defective power cable. 1. Observe the ATMOS® S 61 Servant ENT workstation Defective fuse. operating instructions. Insufficient light. Fibre optic light cable 1. Check whether the fibre optic adapter not attached light cable adapter is fitted correctly. -
Page 24: Accessories
Blank adapter for light source output 531.0271.0 8.3 ATMOS® LED Light Cube CORIAN® Accessories Fibre optic light cable adapter with ATMOS®/Storz connection 530.6100.0 Fibre optic light cable adapter with Olympus connection 530.6101.0 Fibre optic light cable adapter with Pentax connection 530.6102.0... -
Page 25: Disposal
The product does not contain any hazardous materials. 1. Clean and disinfect the device. 2. In Germany: Send the product back to ATMOS or your specialist dealer. They will dispose of the device professionally. 3. In other countries: Dispose of the product professionally and according to the country-specific laws and regulations. -
Page 26: Technical Data
10 Technical data ATMOS® S 61 CORIAN® instruments/ATMOS® S 61 CORIAN® instruments XXL Instruments Instruments XXL Ambient conditions for transport/storage • Temperature: -10...+50°C • Relative humidity: 30...95% without condensation • Air pressure: 500...1060 hPa Ambient conditions for operation • Temperature: +10...+35°C •... - Page 27 ID No. (REF) 532.0800.0 Technical data last updated: 30.01.2019 Isolating transformer connection specifications Voltage 230 V~ ±10%; 50/60 Hz Special voltage: 115 V~ ±10%; 50/60 Hz Power consumption Max. 600 VA Fuses T 3.15 A (for 230 V~, 50/60 Hz) T 6.3 A (for 110 V~, 127 V~, 50/60 Hz) Operating time Continuous operation Protective earth conductor Max. 0.1 Ω resistance Earth leakage current Max. 0.5 mA Housing leakage current Max. 0.1 mA Patient leakage current Max. 0.1 mA...
- Page 28 ATMOS MedizinTechnik GmbH & Co. KG Ludwig-Kegel-Straße 16 79853 Lenzkirch/Germany Phone: +49 7653 689-0 atmos@atmosmed.de www.atmosmed.com...
