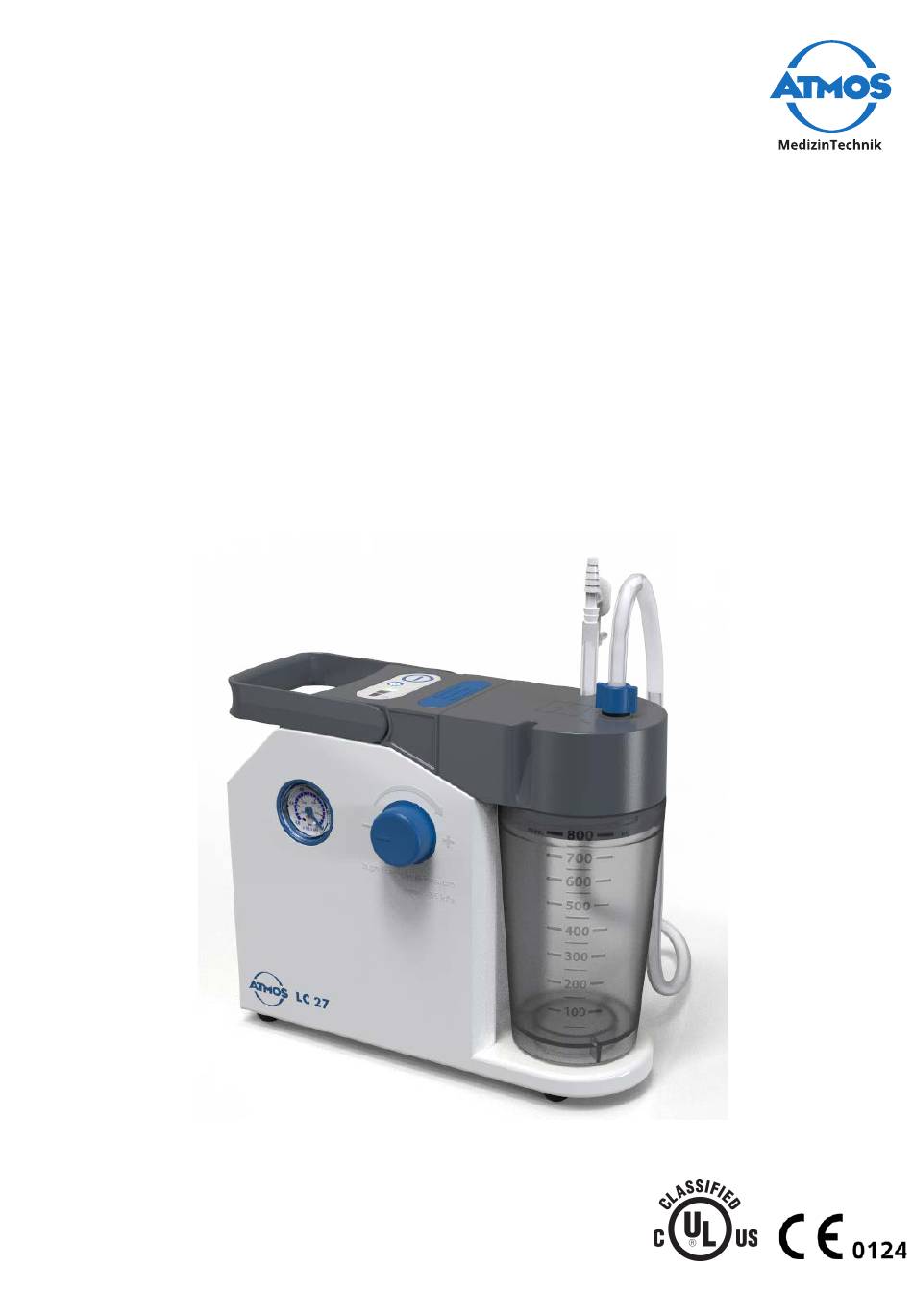

- Page 1 Operating Instructions ATMOS LC 27 ATMOS LC 27 Battery English GA1GB.310301.0 E349855 2022-03 Index 10...
-
Page 2: Table Of Contents
Table of contents Introduction ........... . . 4 Notes on operating instructions . - Page 3 ATMOS LC 27 Battery ........
-
Page 4: Introduction
§ the device for the first time. This will help you to avoid potentially dangerous situations. The ATMOS LC 27 and ATMOS LC 27 Battery bear the CE marking CE in accordance with the European Medical Device Regulation (MDR) 2017/745. The products ATMOS LC 27 and ATMOS LC 27 Battery comply with... -
Page 5: Explanation Of Pictures And Symbols
ATMOS LC 27 Battery / DDS Universal 321.2300.0 ATMOS LC 27 Battery / Serres 321.2100.0 ® ATMOS LC 27 Battery / Medi-Vac 321.2200.0 ® 1.2 Explanation of pictures and symbols In the operating instructions DANGER Warning of a danger that will result in immediate fatal or serious injury. Observe the necessary measures. - Page 6 UL listing test label MEDICAL — GENERAL MEDICAL EQUIPMENT AS TO ELECTRICAL SHOCK, FIRE AND MECHANICAL HAZARDS ONLY IN ACCORDANCE WITH ANSI/AAMI ES60601-1 (2005) + AMD 1 (2012) E349855 CAN/CSA-C22.2 No. 60601-1 (2014) IEC 60601-1-6 (2013) ANSI/AAMI HA60601-1-11 (2015) Manufacturer Date of manufacture Country of manufacture Distributor...
- Page 7 On/Off button Direction of vacuum setting min. vacuum setting max. vacuum setting Fragile, handle with care Keep dry Keep away from sunlight Temperature limit Humidity limitation 1060 Atmospheric pressure limitation Do not use if the packaging is damaged UDI application identifier (01) UDI-DI: Identification of the manufacturer and the device (10)
-
Page 8: Intended Use
ATMOS LC 27 Battery • ATMOS LC 27 Battery / DDS • ATMOS LC 27 Battery / Serres® • ATMOS LC 27 Battery / Medi-Vac® • ATMOS LC 27 Battery / DDS Universal Main functions: Temporary and spontaneous suction of suction material (including secretions, blood, serum fluids, food particles) from the oral cavity, pharynx and bronchial system Suction during ENT treatments. - Page 9 Intended Patient Patients of all ages with and without restrictions population: Disease state to be Not applicable diagnosed, treated or monitored: Application organ: • Upper respiratory tract (nose, nasal cavity, pharynx) • Lower respiratory tract (larynx, trachea, bronchial system) • Ear Application time: Temporary use on the patient (<60 min) Area of application:...
-
Page 10: Function
(100 - 240 V) to be connected to the power supply grid. The ATMOS LC 27 Battery is a bronchial suction device powered by a rechargeable battery, which can be operated either using the permanently installed rechargeable battery or an external DC power supply (13.8 V) as desired. -
Page 11: Intended Users
The ATMOS LC 27 and the ATMOS LC 27 Battery cannot be operated when in motion and therefore need to be kept stationary when operated. Single-patient secretion canister (DDS): The single-patient secretion canister is fastened to the side of the device and connects directly to the suction unit by means of the Direct-Docking-System (DDS). - Page 12 321.0100.0 1 x ATMOS mains power unit 011.1363.0 1 x operating instructions GA1DE.310301.0 321.2300.0 ATMOS LC 27 Battery / DDS Universal 1 x basic device 1 x single-patient secretion canister system 321.0300.0 1 x DDS hose adapter (1 pc.) 321.0040.0 1 x DDS bacterial and viral filter cartridge (1 pc.)
-
Page 13: Transport And Storage
If damage occurs during transport: 1. Document and report the transport damage. 2. Fill in the form QD 434 “delivery complaint/return shipment”. 3. Send the device to ATMOS (chapter “6.2 Sending in the device” on page 41). Ambient conditions for transport and storage: •... -
Page 14: Notices For Your Safety
2.0 Notices for your safety The safety of the ATMOS LC 27 and the ATMOS LC 27 Battery complies with all the recognized rules of technology and the guidelines of the Medical Products Law. 2.1 General safety instructions Report all serious incidents that have occurred in connection with this product to the manufacturer and your national competent authority. - Page 15 In this case clean the device and send it in to ATMOS for repair. • The ATMOS LC 27 and ATMOS LC 27 Battery are not suitable for sterilisation. • Only use the mains power unit in dry surroundings.
-
Page 16: Avoiding Damage To The Device
• Ensure that no liquid penetrates the device. In case that liquid has penetrated the device it may no longer be operated. In this case clean the device and send it in to ATMOS for repair. • Always place the device on firm, level surface. The device must always be in a vertical position, when you use it. -
Page 17: Setting Up And Starting Up
3.0 Setting up and starting up Please observe that insufficient battery charge can result in damage to the battery. 1. Fully charge the battery for the ATMOS LC 27 Battery before using the device. 3.1 Device overview 3.1.1 Front/rear view (with single-patient secretion canister system) Front view Control panel ... -
Page 18: Front/Rear View (With Serres Secretion Canister System)
3.1.2 Front/rear view (with Serres secretion canister system) ® Front view Control panel Carrying handle Vacuum gauge Vacuum adjustment (from - to +) Connection for the mains power unit ... -
Page 19: Front/Rear View (With Medi-Vac Secretion Canister System)
3.1.3 Front/rear view (with Medi-Vac secretion canister system) ® Front view Control panel Carrying handle Vacuum gauge Vacuum adjustment (from - to +) Connection for the mains power unit ... -
Page 20: Control Panel
Operation status display The battery charge level of the ATMOS LC 27 Battery must be visually monitored by checking the indicator. If only the red LED lights up, although the battery has been loaded for a longer period, the battery is defective. -
Page 21: Prepare The Device With The Disposable System Serres Or Medi-Vac
6. Place the device on a safe and even surface. 7. Check the mains power unit for damage. 8. Replace a defective mains power unit immediately. 9. With the ATMOS LC 27 Battery: The battery must be fully charged prior to first use, see chapter “3.4 Charging the battery” on page 22. 10. Operate the device only with the DDS bacterial and viral filter cartridge inserted and with the single-patient secretion canister system connected. The device is delivered with the DDS bacterial and viral filter cartridge and the single-patient secretion canister system already inserted and connected. -
Page 22: Charging The Battery
14. Insert the disposable canister system (outer canister with suction liner ) into the support for canister system. 15. Attach the vacuum hose to the DDS bacterial and viral filter cartridge and to the angle on the outer canister of the disposable system. 16. Attach the disposable suction hose to the suction liner. 3.4 Charging the battery ... - Page 23 • Wear disposable gloves when changing the DDS bacterial and viral filter and the canister lid. • Prior to each use, check whether the DDS bacterial and viral filter is dry and clean. Replace the DDS bacterial and viral filter if it is discoloured, soiled or after oversuction. The DDS bacterial and viral filter must not be dried and not reused. • Replace the DDS bacterial and viral filter after a patient change. Replace the bacterial and viral filter after two months even if there is no patient change (Requirement: Device is in use). Recommendation: Before suction, fill some water (approx. 10–20 ml) into the single- patient secretion canister system. This will prevent secretions from drying into crusts. 1. Place the canister lid onto the single- patient secretion canister.
-
Page 24: Notes On The Dds Bacterial And Viral Filter Cartridge
3.6.2 Notes on the DDS bacterial and viral filter cartridge The DDS bacterial and viral filter cartridge is located between the device and the single-patient secretion canister system. This consists of a hydrophobic bacterial and viral filter with a blue support and white seal. The DDS bacterial and viral filter cartridge effectively protects the device from oversuction and contamination. -
Page 25: Connecting The Suction Hose With Dds Adapter And Fingertip
3.6.5 Connecting the suction hose with DDS adapter and fingertip 1. Insert the blue adapter on the suction hose into the opening on the single- patient secretion canister lid. 2. Turn the blue adapter clockwise with a quarter turn. 3. Now, check that the suction hose is connected firmly to the single-patient secretion canister system. -
Page 26: Connecting The Serres Secretion Canister System
3.7 Connecting the Serres secretion canister system ® WARNING Risk of infection from contaminated secretion canister system and hoses. Deadly diseases can be transmitted. • Only use Serres suction liners with integrated bacterial filter. ® • Never operate the device without DDS bacterial and viral filter cartridge. Always keep at least one DDS bacterial and viral filter cartridge on hand. • Wear disposable gloves. • Prior to each use, check whether the DDS bacterial and viral filter cartridge is dry and clean. Replace the DDS bacterial and viral filter cartridge if it is discoloured, soiled or after oversuction. The DDS bacterial and viral filter cartridge must not be dried and not reused. -
Page 27: Removal
9. Switch on the device so that the pump builds up a vacuum. The Serres suction liner unfolds. ® 3.7.2 Removal 1. Remove the disposable suction hose from the Serres suction liner. ® 2. Close the „patient“ connection on the Serres suction liner with the green cap . -
Page 28: Notes On The Dds Bacterial And Viral Filter Cartridge For Disposable System
3.7.3 Notes on the DDS bacterial and viral filter cartridge for disposable system • The DDS bacterial and viral filter cartridge for disposable system is located between the device and the Serres secretion canister ® system. • This consists of a hydrophobic bacterial and viral filter with a blue support and white seal. • The DDS bacterial and viral filter cartridge effectively protects the device from oversuction and contamination. -
Page 29: Connecting The Medi-Vac ® Secretion Canister System
3.8 Connecting the Medi-Vac secretion canister system ® WARNING Risk of infection from contaminated secretion canister system and hoses. Deadly diseases can be transmitted. • Only use Medi-Vac suction liners with integrated bacterial filter. ® • Never operate the device without DDS bacterial and viral filter cartridge. Always keep at least one DDS bacterial and viral filter cartridge on hand. • Wear disposable gloves. • Prior to each use, check whether the DDS bacterial and viral filter cartridge is dry and clean. Replace the DDS bacterial and viral filter cartridge if it is discoloured, soiled or after oversuction. The DDS bacterial and viral filter cartridge must not be dried and not reused. -
Page 30: Removal
3.8.2 Removal 1. Remove the disposable suction hose from the Medi-Vac suction liner. ® 2. Close the „patient“ connection on at the Medi-Vac suction liner with the blue cap . ® 3. Remove the red hose from the Medi-Vac suction liner. ®... -
Page 31: Notes On The Dds Bacterial And Viral Filter Cartridge For Disposable System
3.8.3 Notes on the DDS bacterial and viral filter cartridge for disposable system • The DDS bacterial and viral filter cartridge for disposable system is located between the device and the Medi-Vac secretion canister ® system. • This consists of a DDS bacterial and viral filter and the blue support. • The DDS bacterial and viral filter cartridge effectively protects the device from oversuction and contamination. ... -
Page 32: Operation
Air pressure 700...1060 hPa 4.1 Switching on the device The device should only be left on for as long as you need it. This will prolong the battery life (for ATMOS LC 27 Battery). 1. Press the on/off button to switch on the device. The pump starts. »... -
Page 33: Suction
3. Turn the vacuum adjustment to the right until the vacuum gauge shows the desired vacuum. 4. To reduce the vacuum, turn the vacuum adjustment to the left. The vacuum adjustment shows the setting range directly (from - to +). ... -
Page 34: Removing The Single-Patient Secretion Canister System
4.5.1 Removing the single-patient secretion canister system 1. Remove the single-patient secretion canister system by pressing and holding the release button on the control panel and taking the single-patient secretion canister system out to the side. 2. Open the single-patient secretion canister lid by turning the lid anti-clockwise with a quarter turn. -
Page 35: Cleaning And Disinfection
5.0 Cleaning and disinfection 5.1 Safety instructions for reprocessing 5.1.1 General safety instructions We recommend you to always document all maintenance work and part replacements in writing. It is the responsibility of the user to ensure that the demands for cleaning and disinfection are adhered to. -
Page 36: Preparing/Completing Reprocessing
Unsuitable accessories! Risk of damage to the product. • Only use lint-free, soft cloths. • For final rinsing, always use fully demineralised water. • Observe the respective operating instructions of all the accessories and devices used. Unsuitable cleaning agents and disinfectants. Risk of damage to the product. •... -
Page 37: Prepare Surfaces
5.3 Prepare surfaces 5.3.1 Overview Surface Remarks Housing incl. carry handle As per agent manufacturer’s instructions Vacuum gauge As per agent manufacturer’s instructions Vacuum adjustment As per agent manufacturer’s instructions Release button As per agent manufacturer’s instructions Control panel As per agent manufacturer’s instructions 5.3.2 Select process chemicals Observe the process chemical manufacturer’s specifications. -
Page 38: Pre-Cleaning
Agent (manufacturer) Active ingredients in 100 g Bacillol® AF (Bode Alcohols Solution x x x x x Chemie) Ready for use 5.3.3 Pre-cleaning 1. Disconnect the device from the mains power supply. 2. Clean the surface evenly with a suitable cloth and clear water. Pay particular attention to areas which are difficult to access. - Page 39 • The single-patient secretion canister system is suitable for cleaning in dishwashers. • After a patient change, always replace the single-patient canister system. • In the case of frequent use and disinfection ATMOS recommends replacing the single-patient secretion canister system at least every 3 months.
- Page 40 DDS bacterial and viral filter cartridge for disposable system • Never wash or autoclave the DDS bacterial and viral filter. • The DDS bacterial and viral filter cannot be detached from the filter cartridge. • The DDS bacterial and viral filter cartridge for disposable system must be replaced after four months (Requirement: Device is in use). • Replace the DDS bacterial and viral filter cartridge if it is discoloured, soiled or after oversuction. Cleaning and disinfection...
-
Page 41: Maintenance And Service
Send the product in to ATMOS or your dealer. 6.3 Handling batteries The battery in the ATMOS LC 27 Battery is a wear part and is therefore not covered by the general warranty. There is a function guarantee of 6 months. -
Page 42: Troubleshooting
7.0 Troubleshooting The ATMOS LC 27 or ATMOS LC 27 Battery has been subjected to thorough quality inspection at the factory. Nevertheless, if a problem may occur you can possibly solve it yourself. Recharging and battery status Error symptom Possible cause... - Page 43 Vacuum and suction capacity Error symptom Possible cause Remedy Vacuum is not built Battery is discharged or Charge the battery or send the up or cannot be defective. device in for repair. reached. Hoses or single-patient Check the single-patient secretion secretion canister lid are canister lid and hoses for tight fit.
-
Page 44: Accessories And Consumables
Serres angle connector grey, 2 pcs. 310.0415.0 ® Medi-Vac outer canister 1 l 312.0473.0 ® 8.2 Consumables Name ATMOS LC 27 / DDS consumables set, 10 pcs. 321.0340.0 Single-patient secretion canister system 321.0300.0 DDS bacterial and viral filter cartridge, 10 pcs. 321.0027.0 DDS bacterial and viral filter cartridge for disposable system, 10 321.0034.0 pcs. Suction hose with DDS adapter and fingertip, 10 pcs. 321.0100.0 Suction hose, silicone, Ø... -
Page 45: Disposal/Recycling
9.1 Expected service life When the ATMOS LC 27 or ATMOS LC 27 Battery is operated according to the operating instructions it has an expected service life of 3 years. A regular thorough cleaning and disinfection of the device as well as operation in line with the operating instructions are assumed. -
Page 46: Technical Data
10.0 Technical data 10.1 ATMOS LC 27 Voltage 100 - 240 V~ ± 10%; 50/60 Hz (13.4 VDC mains power unit) Current consumption Max. 1 A Power consumption Max. 37 W Mains power unit Manufacturer: GlobTek, Inc. Model: GTM46402-3713.4 Suction capacity (on pump, during 27 l/min ±... -
Page 47: Atmos Lc 27 Battery
321.1100.0 ATMOS LC 27 / Serres ® 321.1200.0 ATMOS LC 27 / Medi-Vac ® 321.1300.0 ATMOS LC 27 / DDS Universal * Data may differ depending on elevation above sea level, prevalent air pressure and air temperature. 10.2 ATMOS LC 27 Battery Voltage 100 - 240 V~ ± 10%; 50/60 Hz (13.4 VDC mains power unit) Current consumption Max. -
Page 48: Dds Bacterial And Viral Filter Cartridge
Classification of applied parts Application parts type BF Degree of protection IP 21 CE mark ID No. (REF) 321.2000.0 ATMOS LC 27 Battery / DDS 321.2100.0 ATMOS LC 27 Battery / Serres ® 321.2200.0 ATMOS LC 27 Battery / Medi-Vac ® 321.2300.0 ATMOS LC 27 Battery / DDS... -
Page 49: Notes On Emc
Medical electrical equipment is subject to special precautions with regard to EMC and must be installed acc. to following EMC notes. Guidance and manufacturer's declaration - ambient conditions The ATMOS LC 27 and ATMOS LC 27 Battery are suitable for operation in the following surroundings: • Homecare in any building. -
Page 50: Notice
12.0 Notice Notice... - Page 51 Notice...
- Page 52 ATMOS MedizinTechnik GmbH & Co. KG Ludwig-Kegel-Str. 16 79853 Lenzkirch / Germany Phone: +49 7653 689-0 info@atmosmed.de www.atmosmed.com...
