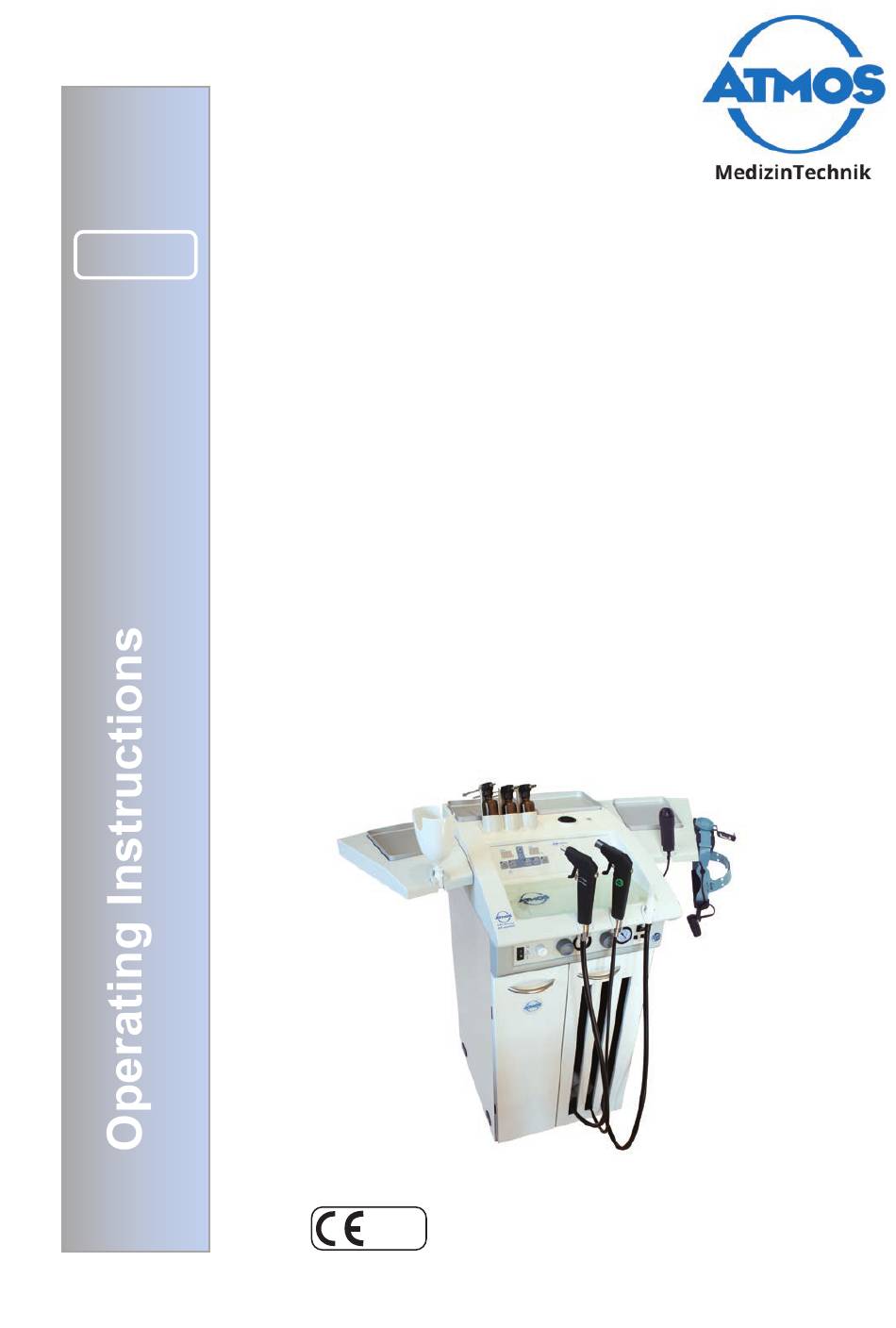

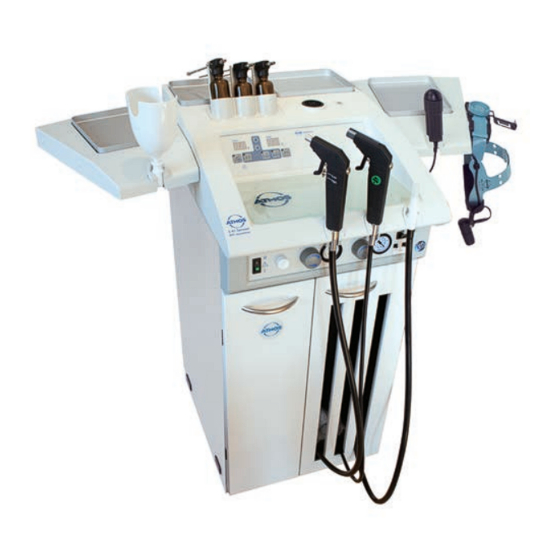

- Page 1 English ATMOS S 61 Servant ENT workstation ENT treatment unit 0124 GA1GB.110101.0 2023-02 Index: 29...
-
Page 2: Table Of Contents
Activation ............24 Intended use ............4 4.6.2 Adapting / depositing the sprayer .......25 4.6.3 Ear irrigation module compressed air 1.2.1 ATMOS S 61 Servant ENT workstation ....4 1.2.2 ATMOS Hygrotherm ..........4 (REF 530.2080.0) ..........25 1.2.3 ATMOS Variotherm ..........5 LED light system ..........25 Instrument heating ..........26... -
Page 3: Introduction
ATMOS S 61 Servant ENT workstation will be preserved. • The product ATMOS S 61 Servant ENT workstation bears the CE marking CE 0124 in accordance with EU Council Directive 93/42/EEC concerning medical devices and meets the basic requirements of Annex I to this directive. -
Page 4: Intended Use
1.0 Introduction 1.2 Intended use 1.2.1 ATMOS S 61 Servant ENT workstation Product name: ATMOS S 61 Servant ENT workstation Main functions: • Medical suction • Ear irrigation • Medication spraying or spraying • Electric power supply for visualization, illumination and illumination acces- sories •... -
Page 5: Atmos Variotherm
The product is: active Sterility/specific microbial status: Non-sterile Single use product / reprocessing: Not a single-use product. Reprocessing according to instructions for use. 1.2.3 ATMOS Variotherm Product name: Variotherm plus Main functions: Stimulation of the vestibular organ Irrigation of the external auditory canal... -
Page 6: Function
The device is a diagnostic and therapy workplace for ENT specialists. The user can assemble the workplace with options and accessories according to his personal requirements. The device is used in clinics or ENT offices. The treatment unit ATMOS S 61 Servant ENT workstation enables the modular installation of the following functional modules: • Suction system module •... - Page 7 On (feed-in, power connection) Off (feed-in, power disconnection) Do not lean against it! Please follow operating instructions! WARNING: The ATMOS S 61 Servant ENT workstation may only be removed from the system frame when the microscope is in the park position! UDI application identifier...
-
Page 8: For Your Safety
• Do not place used or contaminated instruments on the ENT unit except on specially designated areas! temperatures above 40 °C! • The ATMOS S 61 Servant ENT workstation may only be • The ambient conditions specified in the Technical Data used under supervision by skilled staff who have been must be strictly observed! authorized by ATMOS and trained in its operation (IEC •... -
Page 9: Atmos Hygrotherm / Atmos Variotherm: Important Advice For Maintaining The Hygienic Status
2.2 ATMOS Hygrotherm / ATMOS Variotherm: Important advice for maintaining the hygienic status For loosening cerumen in the auditory canal and stimulating the labyrinthine system, ATMOS offers the warm water units ATMOS Hygrotherm plus (37 °C) and ATMOS Variotherm plus (20 °C – 47 °C). These units heat the drinking water that comes from the household connection to the preselected temperature. The operating instructions must be followed, or otherwise the increased number of pathogens in the rinse water can affect the health of sensitive patients. -
Page 10: Setting Up And Starting Up
• Installation acc. to IEC 60346-7-710: earth leakage circuit breaker (FI circuit breaker) with rated leakage current < 0.03 A • Connection of the power cable of the ATMOS S 61 Servant ENT workstation to a safety socket outlet near the device, max. -
Page 11: Water Connection
• Connection including pipe aeration is recommended. • Minimum height of the water tap from the floor: 35 cm. • Distance of the water tap to the ATMOS S 61 Servant ENT workstation: < 3 m. • Required pressure in domestic water system: > 2 bar, but < 5 bar. -
Page 12: Waste Water Drain
3.0 Setting up and starting up 3.4 Waste water drain Prerequisites: • Permanently installed connection fitting with G 3/4" external thread or • Drain outlet, standard HT 40 or HT 50 (connection adapters can be ordered for connecting the discharge hose: REF 510.2130.0 for HT 40; REF 510.2129.0 for HT 50) or •... -
Page 13: Controls And Options When Fully Equipped
3.0 Setting up and starting up 3.6 Controls and options when fully equipped Mirror quick heater Heating module for instrument tray Nebulization of medications (compressed air) LED light source max. 2 kg! LED headlight Clipboard Automatic suction equipment Compressed air Ear irrigation / thermal nystagmus stimulation... -
Page 14: Rear View
3.0 Setting up and starting up 3.7 Rear view Plug the power cable into the IEC power socket. Please observe the safety instructions on page 8! 3.8 Assembling the secretion canister Prior to use, check the system for leak tightness, otherwise it is possible that the vacuum cannot build up! Insert splash guard into Insert bacterial filter ( Insert suction hose (... -
Page 15: Adjustment Of Front Feet
First start-up Prior to shipment, each ATMOS S 61 Servant is checked by the manufacturer for function and safety. In order to ensure the safe functioning of the device after transport and installation, the following points should be observed: The user should only operate the device when 1. -
Page 16: Operation
4.0 Operation 4.1 On/off switch After switching on the main switch, all integrated and connected devices are ready for operation. 4.2 Suction system Do not operate the suction system without a bacterial filter! Always use the splash guard; this will prolong the service life of the bacterial filter. The guarantee will expire in the case of improper use! Change the bacterial filter regularly. See details in chapter 5.0. The hose attachment must be exchanged after each patient. 4.2.1 Control and display of the suction capacity Display vacuum Adjustment vacuum Remove the handle from the support to activate the suction system. -
Page 17: Evacuation Of The Reusable Canister System
4.0 Operation Refilling storage canister for hose rinsing A) Fully automatic refilling (REF 530.1060.0) If required, the water storage canister will be automatically refilled. Attention: Make sure that the water supply system is turned on and the water supply is guaranteed! Do not use any foaming cleaning agents or disinfectants. B) Manual refilling (REF 530.1050.0) Fill the canister with water and/or a non-foaming instrument disinfectant. -
Page 18: Disposable Canister System
4.0 Operation 4.2.4 Disposable canister system A) Receptal ® B) Medi-Vac ®... -
Page 19: Ear Irrigation Module Atmos Hygrotherm
4.0 Operation 4.3 Ear irrigation module ATMOS Hygrotherm 4.3.1 Overview Front view Temperature display (double-digit, increment of 1 °C), actual value indication Setting mode for the temperature Adjustment button up or down Irrigation handle Handle Connection for double-barreled hose Three-hole gasket... -
Page 20: Activating The Atmos Hygrotherm
Remove the handle hold nozzle in working position and activate trigger perform ear irrigation 4.3.5 Temperature setting You can apply the ATMOS Hygrotherm at temperatures from 36 °C to 38 °C. In order to change the set temperature, the button “set” must remain pressed. -
Page 21: Thermal Nystagmus Stimulation, Atmos Variotherm
4.0 Operation 4.4 Thermal nystagmus stimulation, ATMOS Variotherm 4.4.1 Overview Front view Display of stimulation time (double-digit, increment of Button for selecting the irrigation level (37 °C) 1 s) Button for selecting the warm stimulation level (e.g., 44 °C) Adjustment button up or down (for setting the Button for selecting the cold stimulation level (e.g., 30 °C) -
Page 22: Activating The Atmos Variotherm
Remove the handle select temperature and adjust if necessary if required, set time press (flashing approx. 10 sec.) when the ATMOS Variotherm is ready for use, a beep can be heard hold nozzle in working position and activate trigger ... -
Page 23: Adjusting Flow Quantity
) Periodically check the water flow for the stimulation of the vestibular organ and readjust if necessary. 4.4.8 Information about the service display of ATMOS S 61 Servant from software version V 1.2 The module ATMOS S 61 Servant ENT workstation has a service display on the front panel. -
Page 24: Ear Irrigation Bowl With Separate Suction Channel (Ref 530.2070.0)
4.0 Operation 4.5 Ear irrigation bowl with separate suction channel (REF 530.2070.0) The ear irrigation bowl with optional, separate suction channel may only be used for suction during ear irrigation or stimulation. Only the ear irrigation bowl with integrated sieve (hole diameter 1 mm at a maximum) may be used. The suction channel is not suitable for any other suction procedure in the medical field! The liquid pump is not suitable for suctioning off bigger particles, for example, cerumen, etc. -
Page 25: Adapting / Depositing The Sprayer
4.0 Operation 4.6.2 Adapting / depositing the sprayer Adapt: Deposit: Attach () the handle to the Insert the medication bottle top down in the support. medication bottle. Press the activator () Engage, then lift the and pull the handle () medication bottle with the handle from the support (). -
Page 26: Instrument Heating
4.0 Operation 4.8 Instrument heating 4.8.1 Mirror quick heater Press A. The mirror quick heater heats up for 10 seconds and then switches off automatically. Risk of burns! Prior to each use on your patient, check the mirror temperature (e.g., on the back of your hand). Only heat up disinfected instruments! 4.8.2 Heating module for instrument tray When the unit is switched on, the heating system for the instrument tray will also be activated and heated to 37 °C. -
Page 27: Clipboard Endoscopy
Integration of 3-channel endoscope management for rigid and flexible endoscopes. 4.9.1 Option ATMOS LED Light Cube The ATMOS LED Light Cube is also automatically activated when the unit is switched on. With a simple rotary motion, the adapters are screwed in up to the stop position and fixed in the clipboard. The light conductors can be plugged into the connection. -
Page 28: Cleaning And Care
5.0 Cleaning and care 5.1 General information on cleaning and disinfection Prior to cleaning: Set the main switch of the ATMOS S 61 Servant ENT workstation to OFF prior to cleaning and disinfection! Prior to each use: required ) The described actions relating to cleaning and... -
Page 29: Secretion Canister (Without Autom. Secretion Canister Evacuation), Bacterial Filter And Suction Hose
(0, X, or milling area) on the nozzle shows if required. upwards! • Check the DDS bacterial filter / oversuction stop: ) Sprayer tubes are available as spare parts at ATMOS. - The DDS bacterial filter / oversuction stop are disposable products. - Prior to each use, please check whether the DDS bacterial filter is dry and clean. Wet or dirty DDS... -
Page 30: Recommended Instrument Disinfectants
5.0 Cleaning and care 5.2 Recommended instrument disinfectants Manual disinfection of instruments Disinfectant Ingredients in 100 g Manufacturer Korsolex med AF N-dodecylpropane-1,3-diamine 15.6 g Bode Chemie, ® (Application concentrate) N-(3-aminopropyl)-N-dodecylpropane-1,3-diamine 5.1 g Hamburg surfactants, corrosion inhibitors pH-value regulators, foam inhibitors Korsolex basic glutaral... -
Page 31: Recommended Surface Disinfectants
5.0 Cleaning and care 5.3 Recommended surface disinfectants CORIAN ® Disinfectant Ingredients in 100 g Manufacturer terralin protect benzyl-C12-16 alkyldimethyl, chlorides 22 g Schülke & Mayr, ® (Application concentrate) 2-phenoxyethanol 17 g Norderstedt aminoalkylglycines 0.9 g non-ionic surfactants, perfumes Other suitable active ingredients: •... -
Page 32: Recommended Endoscope Disinfectants
5.0 Cleaning and care 5.4 Recommended endoscope disinfectants Manual disinfection of endoscopes Disinfectant Ingredients in 100 g Manufacturer Helipur H plus N glutaral 12 g, BBraun, Melsungen ® 2-propanol 7.5 g ethyl hexanol 0.5 g surfactants, complexing agents, corrosion inhibitors, colorants, perfumes Helix Ultra peracetic acid... -
Page 33: Hygiene Plan
6.0 Hygiene plan Cleaning and disinfection plan ATMOS S 61 Servant ® What When Qualifi ed and trained staff who are familiar Notices with reprocessing. (Please fi ll in the Parts to be reprocessed Cleaning Disinfection Sterilization responsible person -> use a water-based... - Page 34 Instru AF (Schülke & Mayr) ® • Dismozon plus (Bode Chemie) ® Gigasept FF neu (Schülke & Mayr) the ATMOS S 61 Servant. ATMOS MedizinTechnik cannot be hold liable for ® ® • Gigazyme (Schülke & Mayr) ® • Kohrsolin FF (Bode Chemie) ®...
-
Page 35: Maintenance And Service
- At least every 12 months, a repeat test of the electrical safety should be performed according to IEC 62353. ATMOS recommends an inspection according to the manufacturer’s specifications. -
Page 36: Atmos Hygrotherm / Atmos Variotherm: Decalcification
• The device must be well padded and packed in suitable packaging. • Place form QD 434 “Delivery complaint / return shipment” and the respective Decontamination certificate in an envelope. • Affix the envelope to the outside of the package. • Send the product to ATMOS or to your dealer. -
Page 37: Troubleshooting
8.0 Troubleshooting Description Cause Measure Electric power supply No function, main switch is active, No voltage to power plug Check house fuse; possibly it burnt through control light does not light up Cable/plug defective Exchange cable/plug Suction Low or no suction rate, but vacuum Suction hose is clogged Clean suction hose gauge indicates vacuum... - Page 38 No heating Temperature sensor, control, or Inform the service department heating element defective ATMOS Hygrotherm / ATMOS Variotherm Error in temperature display “E1” No water (water pressure < 0.5 bar) • Check whether the water supply delivers a pressure of at least 2 bar (is the water tap open?) •...
-
Page 39: Consumables, Accessories, Spare Parts
Hose tips 501.0331.0 Splash protection to be slipped on jet connection 506.5228.0 Hose piece for medicine sprayer (1 pc.) 512.1300.0 Support arm Diagnostic Cube (S 61 Servant) 534.3020.0 Monitor arm ATMOS S 61 ENT professional 534.3050.0 Shelf (glass) 534.3060.0 Shelf (metal) 534.3055.0... -
Page 40: Spare Parts
9.0 Consumables, accessories, spare parts 9.3 Spare parts Spare parts for ear irrigation / thermal nystagmus stimulation 530.1190.0 Irrigation handle 501.0331.1 Rubber bushing for splash guard 3-hole sealing device side 501.0320.0 3-hole sealing handle side 530.1186.0 530.1181.0 Hose double barrel for irrigation handle Jet connection water irrigation handle 40 mm 502.0984.0 Hygiene filter for water rinsing... -
Page 41: Technical Data For Complete Equipment
10.0 Technical data for complete equipment Please note the technical specifications of the single devices in the separate operating instructions! Mains voltage 230 V~ ± 10 %; 50/60 Hz Other voltages: 100 V~ ± 10 %; 50/60 Hz 115 V~ ± 10 %; 50/60 Hz 127 V~ ± 10 %; 50/60 Hz Current consumption max. - Page 42 10.0 Technical data for complete equipment Light module economy - LED power supply 700 mA (regulated) LED cold light module - Number of channels - Light intensity min. 200 klx - Colour temperature 5500 K ± 10 % Operating time Continuous operation Protective earth conductor resistance max. 0,1 Ω...
-
Page 43: Disposal
• The materials of the housing can be recycled completely. • Die ATMOS S 61 Servant ENT workstation does not contain any hazardous goods. • The component parts of the ATMOS S 61 Servant ENT workstation must be disposed of correctly and the materials are to be separated carefully. -
Page 44: Notes On Emc
• Special environments such as factory or military facilities and medical areas near HF surgical devices, short-wave therapy equipment, or within an HF-shielded room of a magnetic resonance imaging system. The customer or user of the ATMOS S 61 Servant ENT workstation must ensure that the device is used in a prescribed environment. -
Page 45: Notes
13.0 Notes... - Page 46 ATMOS MedizinTechnik GmbH & Co. KG Ludwig-Kegel-Str. 16 79853 Lenzkirch / Germany Phone: +49 7653 689-0 info@atmosmed.com www.atmosmed.com...
