Altronix Maximal Series Installation Manual page 7

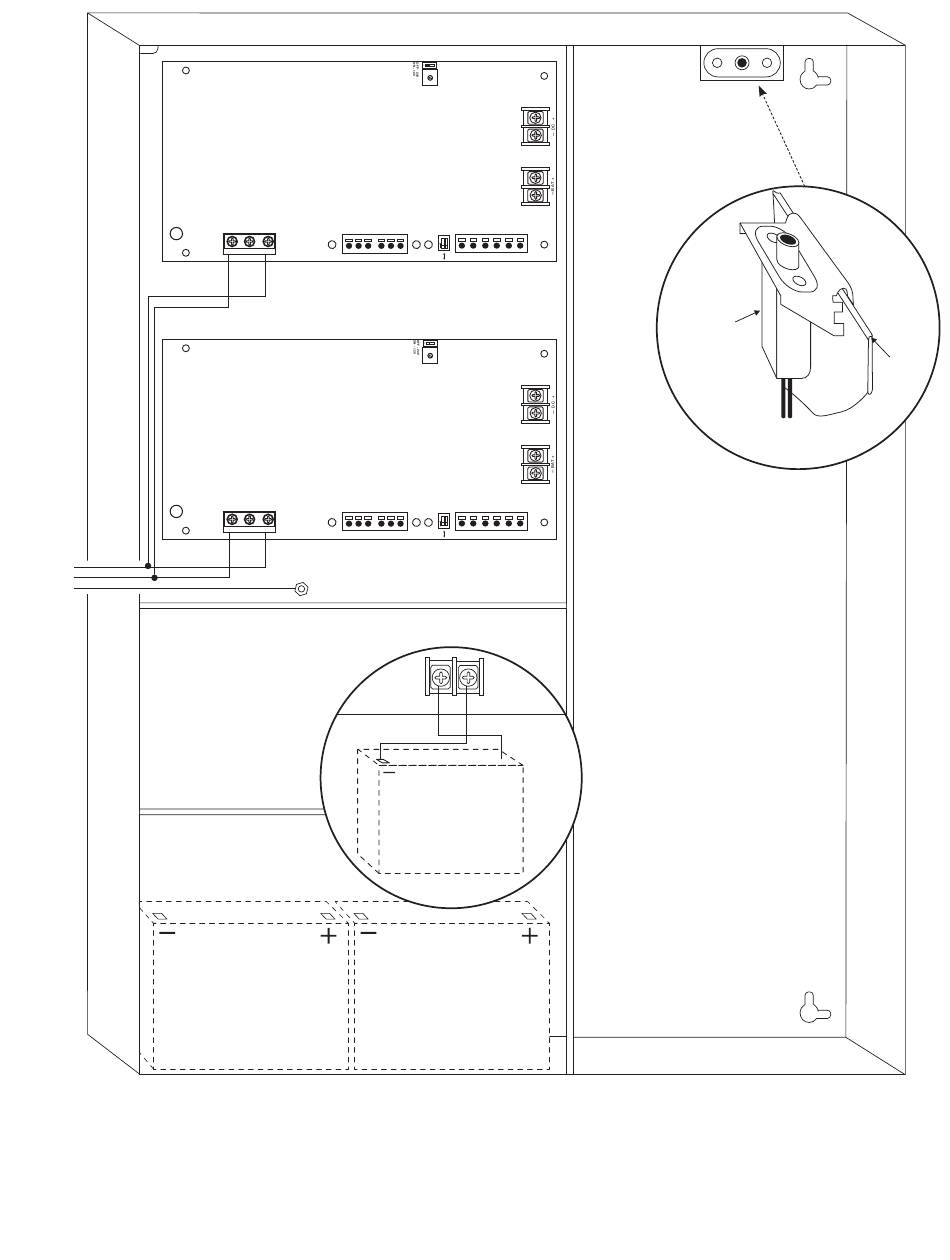

Fig. 2
5A 250V
5A 250V
120VAC
Input
60 Hz.
CAUTION: When power supply board is set for 12VDC
use only one (1) 12VDC stand-by battery.
Connect red battery lead to
the terminal marked [+ BAT]
and to the [positive (+)]
terminal of the battery.
Connect black battery lead to
terminal marked [BAT -- ]
and to the [negative (--)]
terminal of the battery.
Note: 12V batteries required
for Canadian installations.
Keep power-limited wiring separate from non power-limited.
Use minimum 0.25" spacing.
Up to four (4) 12AH Rechargeable batteries are the largest
batteries that can fit in this enclosure.
A UL Listed external battery enclosure must be used
if using the 40AH or 65AH batteries.
Maximal Expandable Power Systems
AC FAIL
AC1
L G N NC C NO
Line Neutral
AC FAIL
AC1
L G N NC C NO
Line
Neutral
Earth
Ground
Optional Rechargeable
Stand-by Battery for
UL294 Applications.
BAT FAIL
AC DELAY SHUTDOWN
O
N
AC DC
1 min. enable
TRIGGER EOL NO GND
NC C NO + AUX –
2 hr. disable
SUPERVISED RESET
BAT FAIL
AC DELAY SHUTDOWN
O
N
AC DC
1 min. enable
TRIGGER EOL NO GND
NC C NO + AUX –
2 hr. disable
SUPERVISED RESET
+ BAT ---
Optional Rechargeable
Stand-by Battery for
UL294 Applications.
Note: 12V batteries
required for
Canadian installations.
Optional Rechargeable
Stand-by Battery for
UL294 Applications.
Note: 12V batteries required
for Canadian installations.
Tamper Switch
Fig. 2a
Sentrol
model # 3012
Tamper Switch
or equivalent
Enclosure
(Not Included)
to Access Control Panel
or U.L. Listed
Reporting Device
Edge of
Enclosure
- 7 -
