Safety information
N
NOTE
Any signal cables which are carried inside the motor cable (i.e. motor
thermistor, motor brake) will pick up large pulse currents via the cable
capacitance. The shield of these signal cables must be connected to
ground close to the point of exit of the motor cable, to avoid this noise
current spreading through the control system.
N
NOTE
The SAFE TORQUE OFF drive enable terminal is a positive logic input
only. It is not affected by the setting of Input Logic Polarity (08.029).

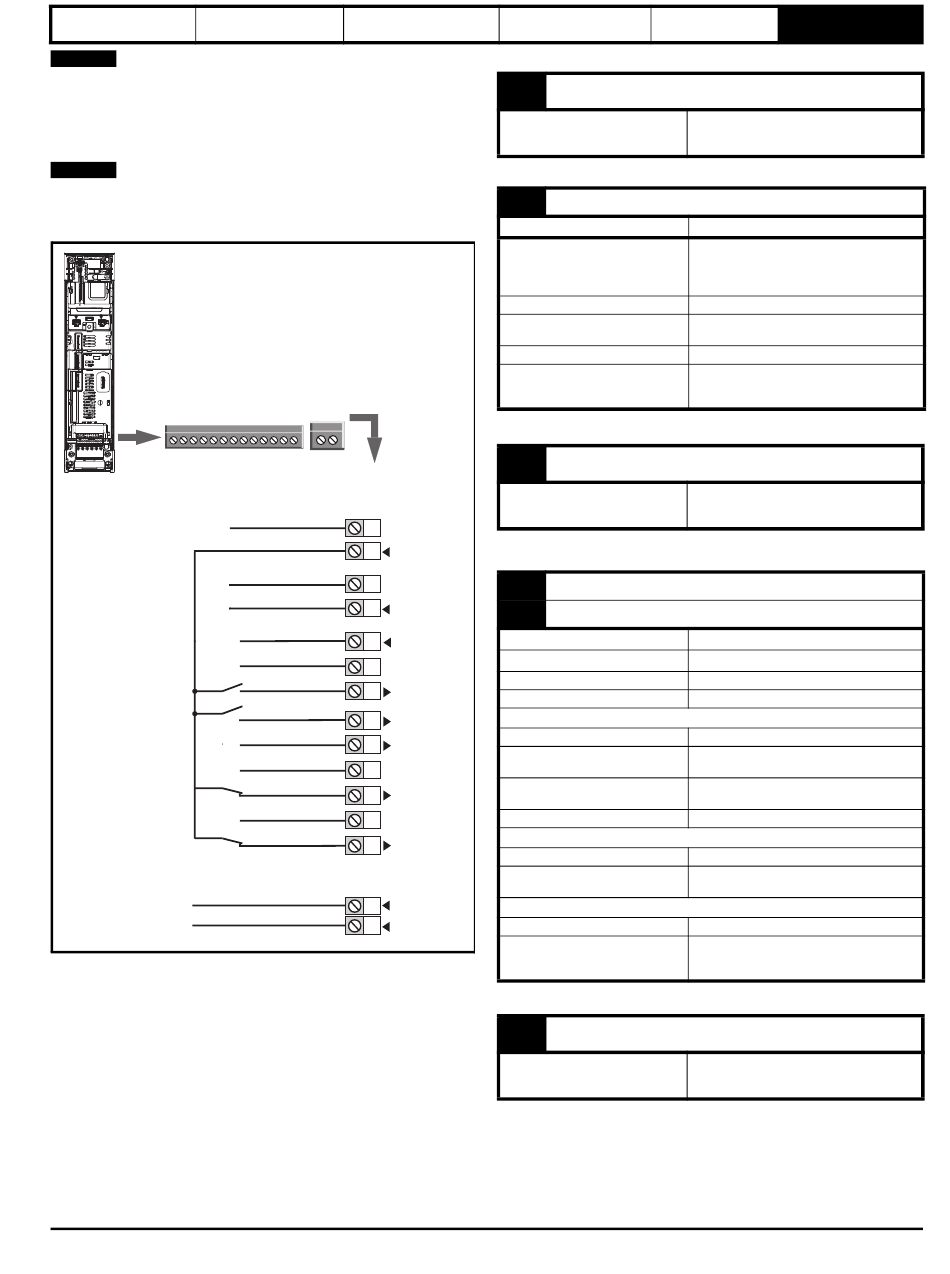

Figure 6-30 Default terminal functions
1
Run forward
Run reverse
SAFE TORQUE OFF
Input 1*
SAFE TORQUE OFF
Input 2*
Drive OK
*The SAFE TORQUE OFF / Drive enable terminal is a positive logic input
only.
Unidrive M Modular Installation Guide
Issue Number: 2
Introduction Product information
41 42
13
0 V common
1
+24 V
2
0 V common
3
Digital Output 1
4
Digital Output 2
5
0 V common
6
7
8
+24 V
9
0 V common
10
11
0 V common
12
13
41
Relay
(Over voltage
42
category II)
System configuration
6.12.4 Unidrive M702 control terminal specification
1 0 V common
Function
2 +24 V user output (selectable)
Terminal 2 default function
Programmability
Nominal output current
Maximum output current
Protection
Sample / update period
3 0 V common
Function
4 Digital Output 1
5 Digital Output 2
Terminal 4 default function
Terminal 5 default function
Type
Input / output mode controlled by... Pr 08.031, Pr 08.032
Operating as an input
Logic mode controlled by...
Absolute maximum applied voltage
range
Impedance
Input thresholds
Operating as an output
Nominal maximum output current
Maximum output current
Common to all modes
Voltage range
Sample / Update period
6 0 V common
Function
Mechanical
Electrical Installation
Installation
Common connection for all
external devices
+24 V user output
Can be switched on or off to act as a fourth
digital output (positive logic only) by setting
the source Pr 08.028 and source invert
Pr 08.018
100 mA
100 mA
200 mA (total including all Digital I/O)
Current limit and trip
2 ms when configured as an output (output
will only change at the update rate of the
source parameter if slower)
Common connection for all
external devices
AT ZERO SPEED output
Positive logic voltage source outputs
Pr 08.029
-3 V to +30 V
>2 mA @15 V from IEC 61131-2, type 1,
6.6 k Ω
10 V ±0.8 V from IEC 61131-2, type 1
100 mA (DIO1 & 2 combined)
100 mA
200 mA (total including all Digital I/O)
0 V to +24 V
2 ms (output will only change at the update
rate of the source parameter
Common connection for all
external devices
