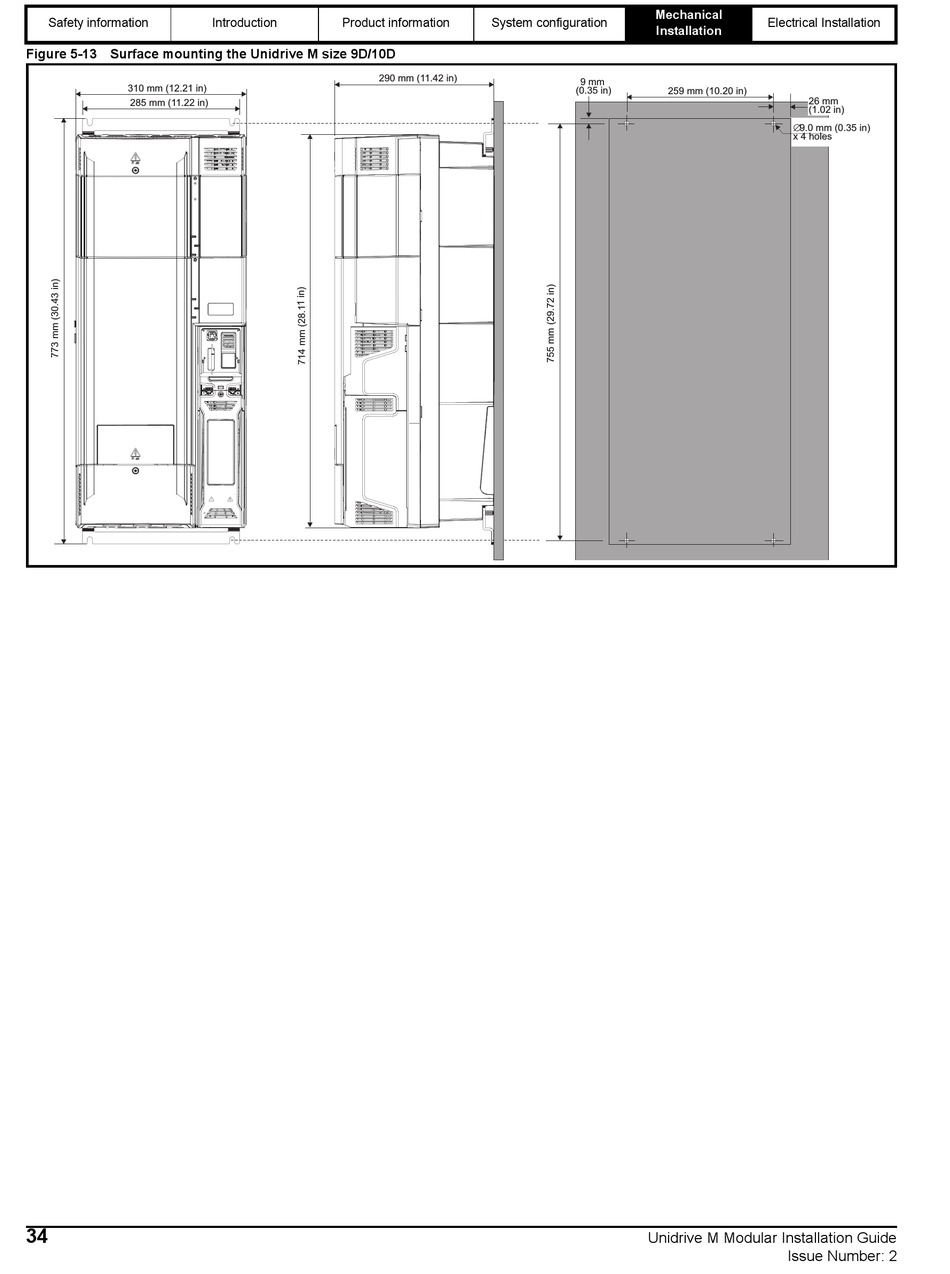

Figure 5-13 Surface mounting the Unidrive M size 9D/10D
310 mm (12.21 in)
285 mm (11.22 in)
34
Introduction
Product information
290 mm (11.42 in)
Mechanical
System configuration
Installation
9 mm
(0.35 in)
259 mm (10.20 in)
Unidrive M Modular Installation Guide
Electrical Installation
26 mm
(1.02 in)
Æ9.0 mm (0.35 in)
x 4 holes
Issue Number: 2
