Nidec Control Techniques Unidrive M Modular Installation Manual page 35

Safety information

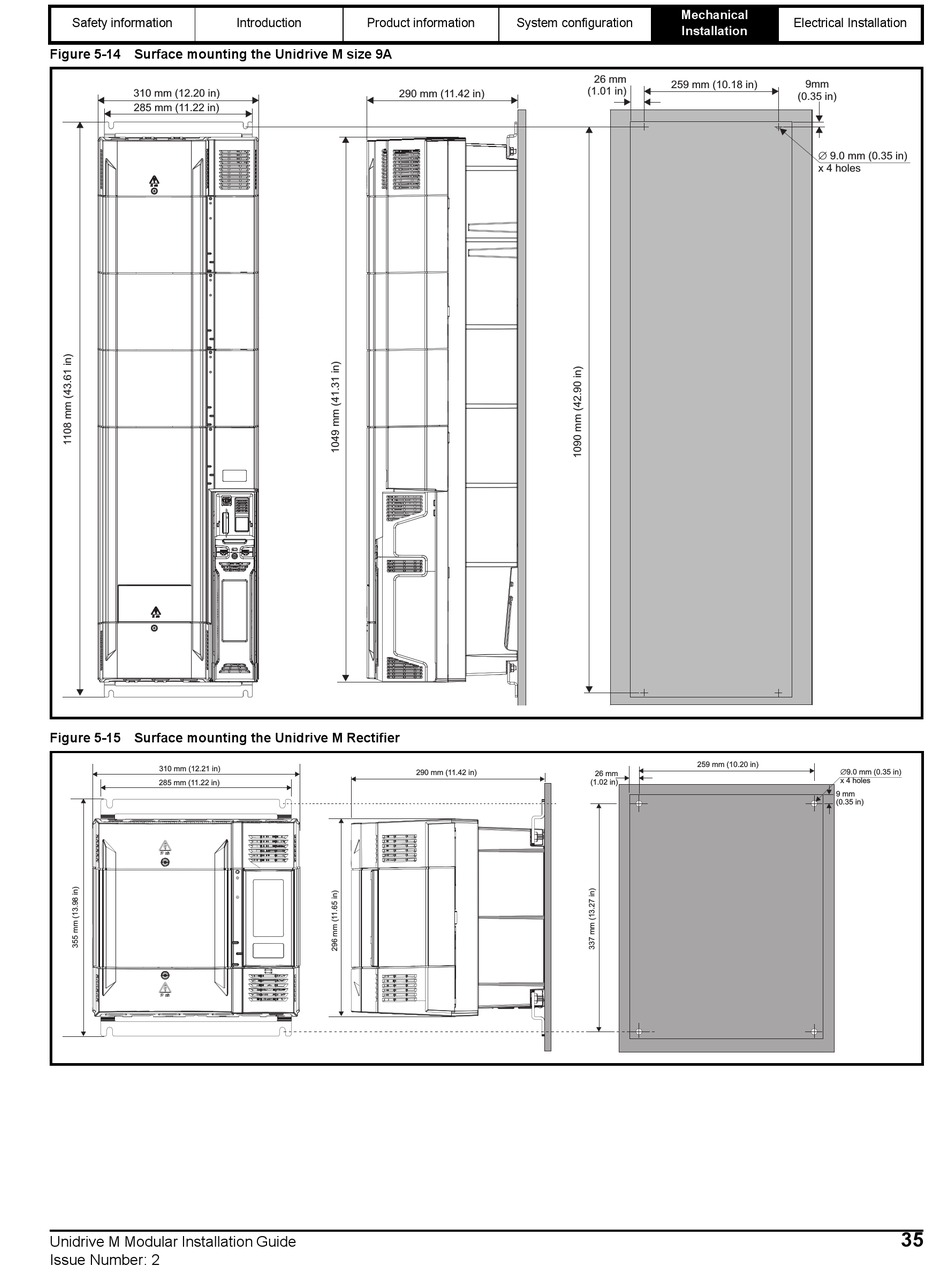

Figure 5-14 Surface mounting the Unidrive M size 9A
310 mm (12.20 in)
285 mm (11.22 in)
Figure 5-15 Surface mounting the Unidrive M Rectifier
310 mm (12.21 in)
285 mm (11.22 in)
Unidrive M Modular Installation Guide
Issue Number: 2
Introduction Product information
290 mm (11.42 in)
290 mm (11.42 in)
Mechanical
System configuration
Installation
26 mm
259 mm (10.18 in)
(1.01 in)
26 mm
(1.02 in)
Electrical Installation
9mm
(0.35 in)
Æ 9.0 mm (0.35 in)
x 4 holes
259 mm (10.20 in)
Æ9.0 mm (0.35 in)
x 4 holes
9 mm
(0.35 in)
35
