5.5.2 Through-panel mounting

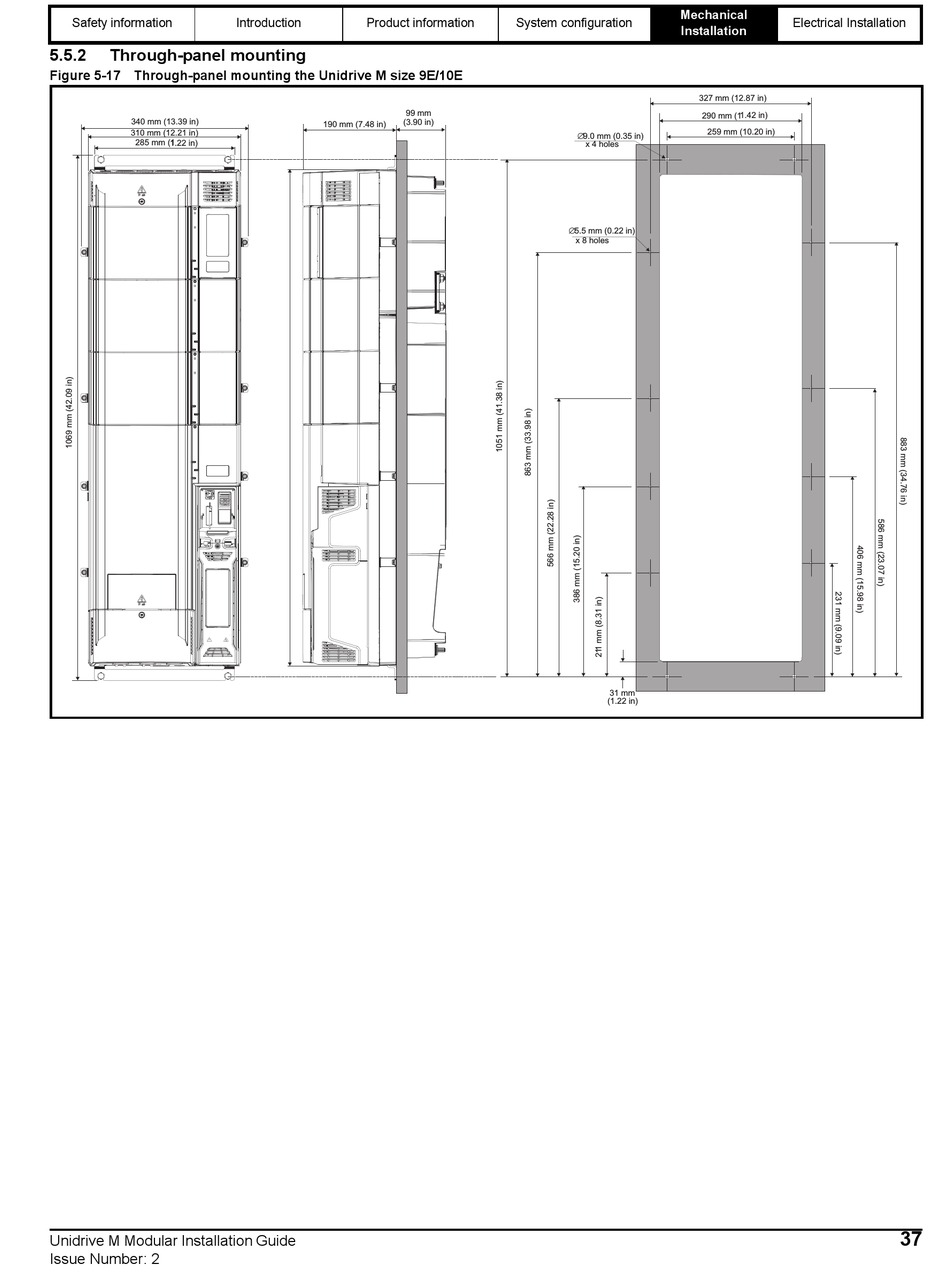

Figure 5-17 Through-panel mounting the Unidrive M size 9E/10E
327 mm (12.87 in)
99 mm
290 mm (1 1.42 in)
340 mm (13.39 in)
(3.90 in)
190 mm (7.48 in)
259 mm (10.20 in)
310 mm (12.21 in)
Æ9.0 mm (0.35 in)
285 mm (1 1 .22 in)
x 4 holes
Æ5.5 mm (0.22 in)
n5.5 typ.
8 places
x 8 holes
31 mm
(1.22 in)
