The Handy THSS100 Instruction Manual

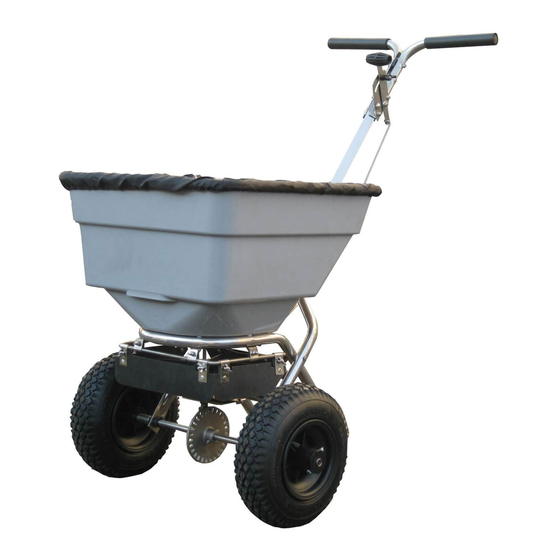

100lb (45.5kgs) salt spreader
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
100LB (45.5kgs)
SALT SPREADER
Model No: THSS100 -- Product No: 193878002
DO NOT USE WITH ROCK SALT.
Using rock salt in this spreader will damage the mechanism and shorten the life of the product.
Refined ice melting salt can be used, but the user should be aware that using salt may corrode
certain components of the spreader and reduce the life of the machine.
Clean the spreader thoroughly after using refined de-icing salt.
ASSEMBLY REQUIRED
SAVE THESE INSTRUCTIONS
SPARES & SUPPORT: 01793 333212
Please read & understand this manual, paying attention to the safety instructions, before use.
The manufacturer reserves the right to change the product specification and livery according to
continued product improvements.
Images used are for illustration purposes only
01/02/2018

Advertisement

Table of Contents
loading

Related Manuals for The Handy THSS100

Summary of Contents for The Handy THSS100

  • Page 1 INSTRUCTION MANUAL 100LB (45.5kgs) SALT SPREADER Model No: THSS100 -- Product No: 193878002 DO NOT USE WITH ROCK SALT. Using rock salt in this spreader will damage the mechanism and shorten the life of the product. Refined ice melting salt can be used, but the user should be aware that using salt may corrode certain components of the spreader and reduce the life of the machine.

  • Page 3: Table Of Contents

    CONTENTS SPECIFICATION IMPORTANT INFORMATION GENERAL SAFETY INSTRUCTIONS COMPONENTS ASSEMBLY ADJUSTMENTS MAINTENANCE OPERATION RATE SETTINGS PARTS DIAGRAM PARTS LIST WARRANTY ASSEMBLY IS REQUIRED This product requires assembly before use. See the “Assembly” section for instructions. Please check that all parts required for the assembly of this spreader are included. If for any reason you believe a part for the assembly is missing or damaged, please contact us.

  • Page 4: Specification

    SPECIFICATION The manufacturer reserves the right to change the product specification and livery according to continued product improvements. Model THSS100 Product Number 193878002 Weight 12.9kg Capacity (Weight) 45.5kg Tyre Rating 2 Ply Tyre Maximum PSI 25psi (Do not exceed) IMPORTANT INFORMATION INTENDED USE The product is intended for spreading granular material for domestic gardens.
  • Page 5 labels. not discharge into drains, soil or water. CRUSH AND CUT HAZARDS STORE IDLE EQUIPMENT Always keep your hands and feet clear from When not in use, the machine should be moving parts while operating the equipment. stored in a dry location. Keep the machine Always keep the work area clean and clear away from children and others not qualified when operating.

  • Page 6: Components

    COMPONENTS...

  • Page 7: Assembly

    ASSEMBLY STEP 1 • Install the impeller (42) onto the gearbox and axle assembly. • Align the impeller with the hole on the axle, located nearest the gearbox. • Insert M4x20 screw (41), through the side of the impeller and the gearbox axle. Tighten until secure.
  • Page 8 STEP 3 • On the left side of the axle insert the wheel bushing (35), wheel (36), Ø16 flat washer (34) and secure with the Ø5x35 cotter pin (71). • Insert the wheel bushing (35), wheel (36) on the right side and secure using the M6x60 bolt (70) and M6 lock nut (24).
  • Page 9 STEP 5 • Put the two handle tubes (23) together with the handle connecting piece (1) in the middle and secure using one M6x50 bolt (32), Ø6 flat washer (43) and M6 lock nut (24). Hand tighten. • Put the handle tubes over the post and attach the gauge plate assembly (4) using an M6x50 (32) and M6 lock nut (24).
  • Page 10 STEP 7 • Insert R-pin (17) into the hole of the gearbox spindle, which protrudes though the bottom of the hopper. • Attach the ends of the connecting rod (25) to the pivot bracket assembly (19) and gauge lever assembly (4). Remove the nuts at both ends and insert the connecting rod into the gauge and bracket assemblies.

  • Page 11: Adjustments

    ADJUSTMENTS If when you have finished all of the above steps and the holes at the bottom of hopper cannot be opened and completely closed by using the handle, you will need to follow the instructions below. 1. Loosen the wing nut and move the lever to the lowest position to close the adjustable plates. 2.

  • Page 12: Maintenance

    MAINTENANCE LUBRICATE Maintenance spray or multi-purpose grease can be applied to the wheel axle & gear prior to long- term storage. Oiling is not necessary. CHECK TYRE INFLATION Prior to using the Spreader, ensure the tyres are sufficiently inflated. We recommend the use of FOOT or HAND inflation devices only.

  • Page 13: Operation

    OPERATION DANGER The product must only be put into operation if no defects are found. It is crucial that defective parts are replaced before the product is used again. Check the safety equipment and the safe condition of the product: Check all parts to make sure that they fit tightly. Check whether there are any visible defects: broken parts, cracks, etc.

  • Page 14: Rate Settings

    RATE SETTINGS Our spreaders are designed to spread dry, powdered or granulated materials thinly and evenly over reasonably smooth surfaces. • Ensure that the material is dry and free-running. If in doubt pass it through a sieve with 3mm mesh to remove lumps. •...

  • Page 15: Parts Diagram

    PARTS DIAGRAM NOTE: Parts Lists are supplied for information purposes only, not all parts are stocked individually & we recommend you contact our Spares Team on 01793 333212 for expert advice.
  • Page 16 PARTS LIST Ref# Part No. Description Ref# Part No. Description TH179-1 Handle Connecting Piece TH179-37 Inner Axle Bushing TH179-2 Semi-Circle Bolt M6X25 TH179-38 Outer Axle Bushing TH179-3 Lock Washer Ø8 TH179-39 Gear TH179-4 Gauge Plate Assembly TH179-40 Small Gear TH179-5 Adjust Handle TH179-41 Screw M4X20...
  • Page 17 GJ Handy & Co Ltd and agree to only use genuine parts and follow our repair procedures. Webb Electric Handheld, Webb Dynamic, The Handy, Mowerland, Q-Garden a) 1 year from the original date of sale to the first domestic user.
  • Page 18 GJ HANDY & CO LTD USER WARRANTY POLICY Not covered by this warranty a) The warranty policy does not cover any depreciation or damages caused by ordinary wear, rusting or corrosion, lack of correct maintenance or operation, misuse, abuse, lack of transportation or accident.

  • Page 20: Tel: 01793 333212

    For spares or support of your handy product, please contact us: Tel: 01793 333212 Email: customerservice@handydistribution.co.uk (Mon – Fri 8.00am to 5.30pm excl. Bank Holidays) To see our range of garden machinery & equipment visit: www.thehandy.co.uk Making gardening easier & affordable since 1938 Distributed by Handy Distribution, Murdock Road, Dorcan, Swindon, SN3 5HY...
