I I n n s s t t a a l l l l a a t t i i o o n n

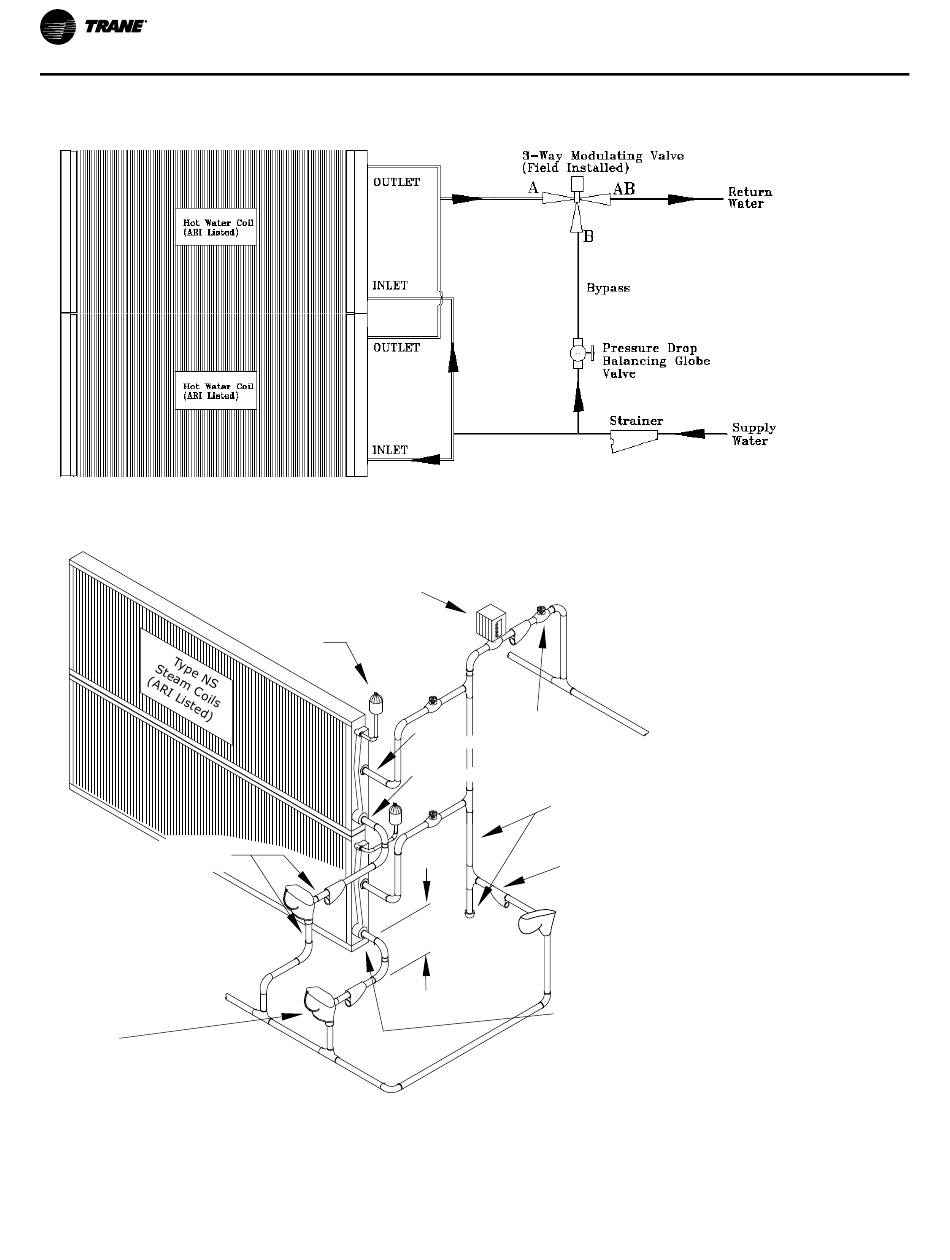

Figure 54. Hot water coil piping
Figure 55. Steam coil piping
Use same size pipe
as Trap Connections
(3 locations)
Return
Main
Steam Trap
(Float & Thermostatic Type)
(3 locations)
Disconnect Switch with External Handle
Units come equipped with a factory mounted
disconnect switch with an externally mounted handle.
This allows the operator to disconnect power from the
72
2-Way
Modulating
Valve
Vacuum
Breaker
(2 locations)
IN
(2 locations)
OUT
(2 locations)
12" Minimum
(both outlets)
Steam
Main
Gate Valve
(3 locations)
Use same size pipe
as Steam Main
Strainer
(3 locations)
Use same size pipe
as Coil Connection
(2 locations)
unit without having to open the control panel door. The
handle has three positions:
• "ON" - Indicates that the disconnect switch is
closed, allowing the main power supply to be
applied at the unit.
RT-SVX24Q-EN
