Table 26. Gas heat inlet sizes (continued)
Standard Gas Heat Input
(MBh)
1800
2500
Flue Assembly Installation
1. Locate the collapsed flue assembly in the
compartment above the gas heat controls by
removing the panel screws. The assembly is
secured by screws up through the roof of the gas
controls compartment roof.
2. Separate the pieces of the collapsed assembly and
then assemble the stack as shown in
68.
3. Insert the tube on the flue assembly into the hole
located in the vertical support for the heat section.
4. Butt both tube sections together and center the pipe
clamp over joint.
5. Using the pre-punch hole in the flue assembly,
extension, and the vertical support, install the
appropriate number of mounting brackets (Refer to
the installation instructions that ship with the flue
Figure 52. Gas heat piping penetration locations
2.5M & 1.8M (W=16 1/8in, D=14 11/16in)
1.1M, 0.8M (W=9 15/16in, D=9 12/16in)
Unit end plane
Edge of mist eliminator
68
Gas Heat Inlet Sizes (in.)
1 1/2
1 1/2
Figure 51, p.
Top View
B
C
K
H
Side View
assembly.)

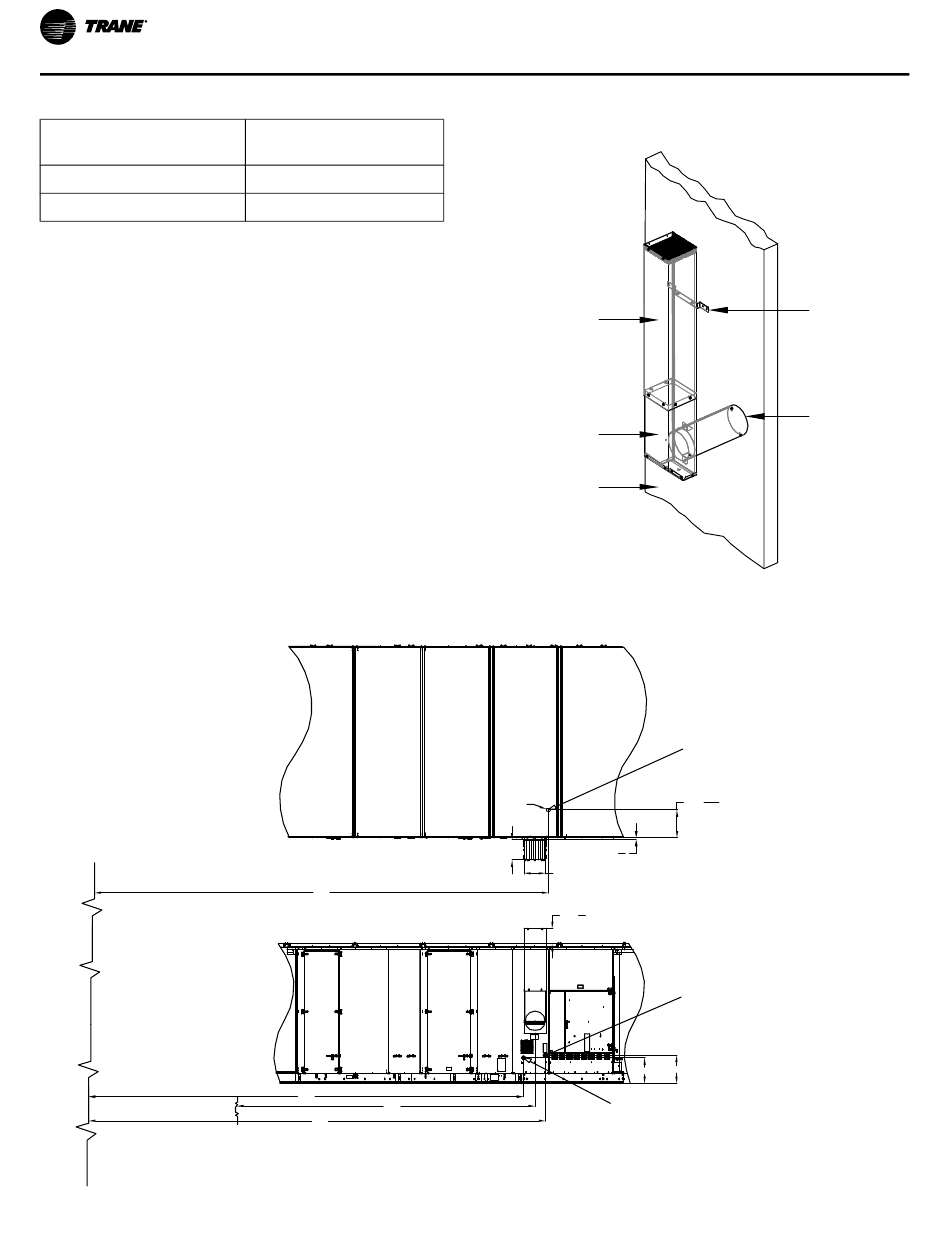

Figure 51. Flue assembly
Flue
Extension
Vent Cap
Assembly
Heat Section
Vertical Support
Ø3
7
D
1
8
W
5
11
8
21
19
Condensate drain outlet
Pipe type: cpvc
Mounting
Bracket
Flue Tube
Hole at the base
7
20
16
Horizontal gas pipe inlet
Pipe type: Black pipe, sch 40
