Trane IntelliPak 2 Series Installation, Operation And Maintenance Manual page 90

I I n n s s t t a a l l l l a a t t i i o o n n

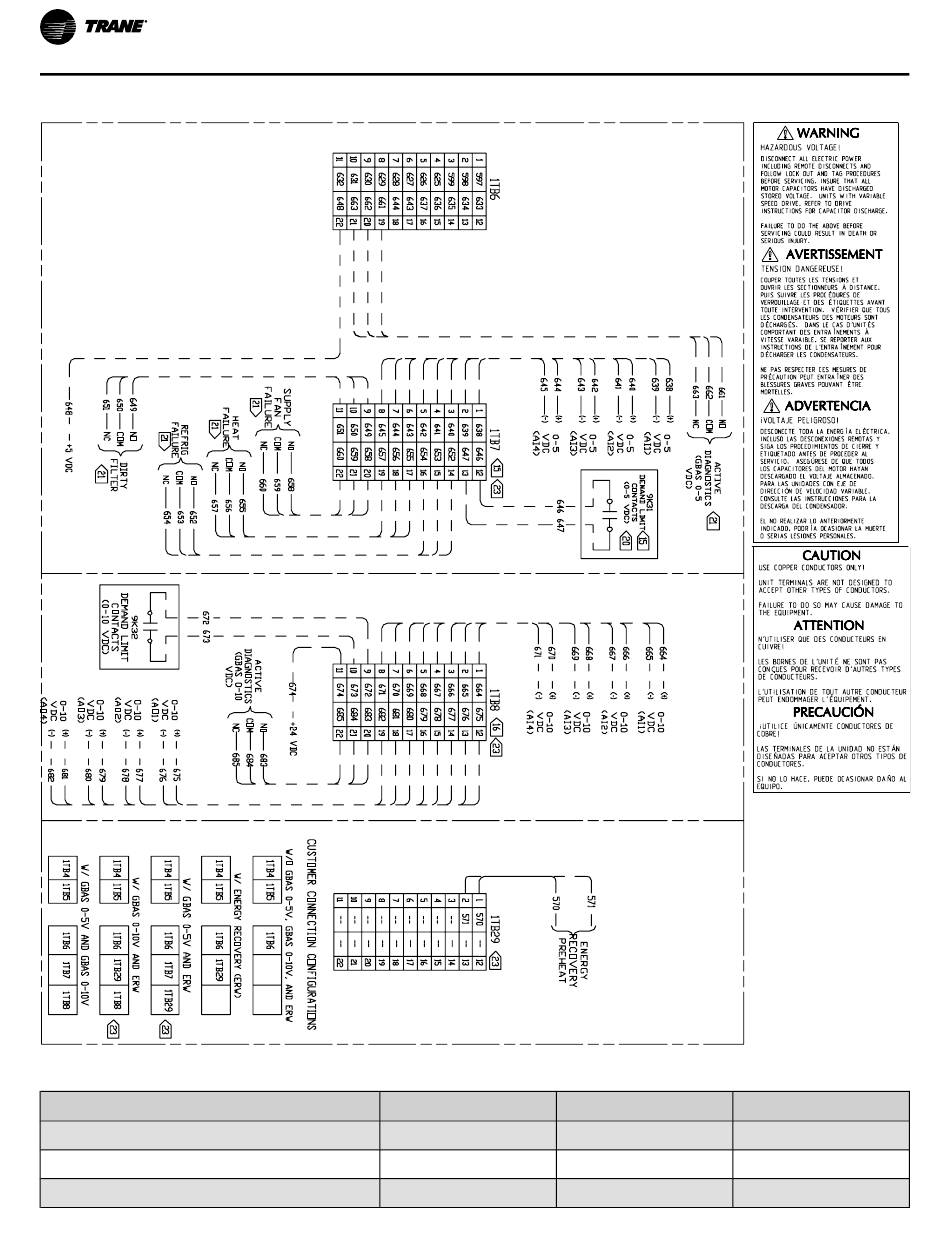

Figure 63. Typical GBAS analog input wiring diagram for 90 to 162 ton CV and VAV control options
Table 44. GBAS voltage vs. setpoint
Setpoint
Occ Zone Cooling Setpoint (CV only)
Unocc Zone Cooling Setpoint
Occ Zone Heating Setpoint (CV only)
90
GBAS 0-5 VDC GBAS 0-10 VDC
0.5 to 4.5 VDC
0.5 to 4.5 VDC
0.5 to 4.5 VDC
Valid Range
0.5 to 9.5 VDC
0.5 to 9.5 VDC
0.5 to 9.5 VDC
50 to 90°F
50 to 90°F
50 to 90°F
RT-SVX24Q-EN
