Installation and Operating Instructions | idOil Solar

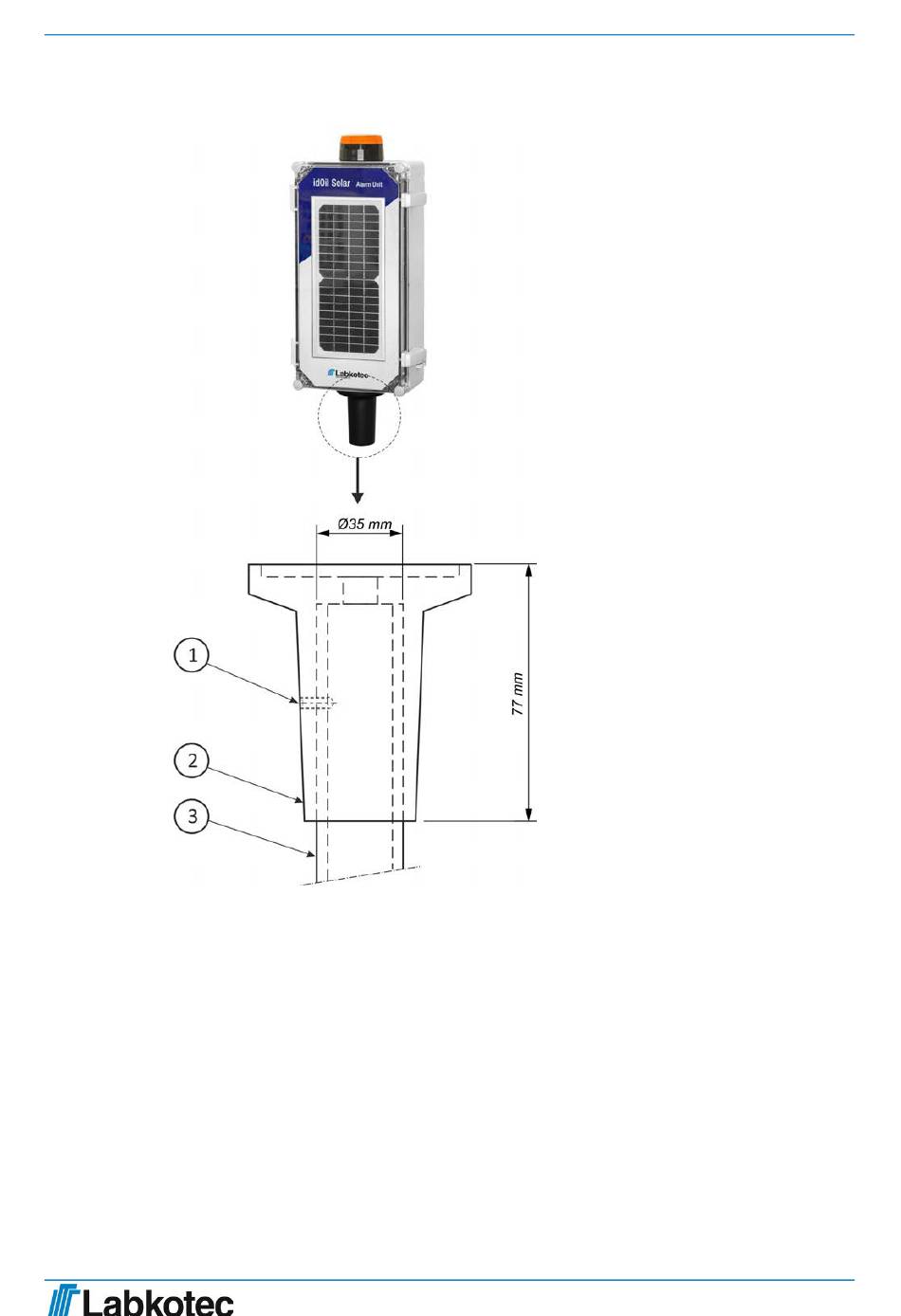

10.2. Connector Flange for idOil Solar

1. M6 x 8 mm locking screw
2. Connector flange
3. Mounting pipe
Drill a 5 - 6 mm hole throught
the mounting pipe (3) to ensure
the idOil Solar is in its correct
position.
Position the connector flange
locking screw in line with the
drilled hole.
Adjust the locking screw until
flush with the outer surface of
the connector flange.
DOC001599-EN-3
56/58
