5.1.3.

Connection with a three-sensor cable connector

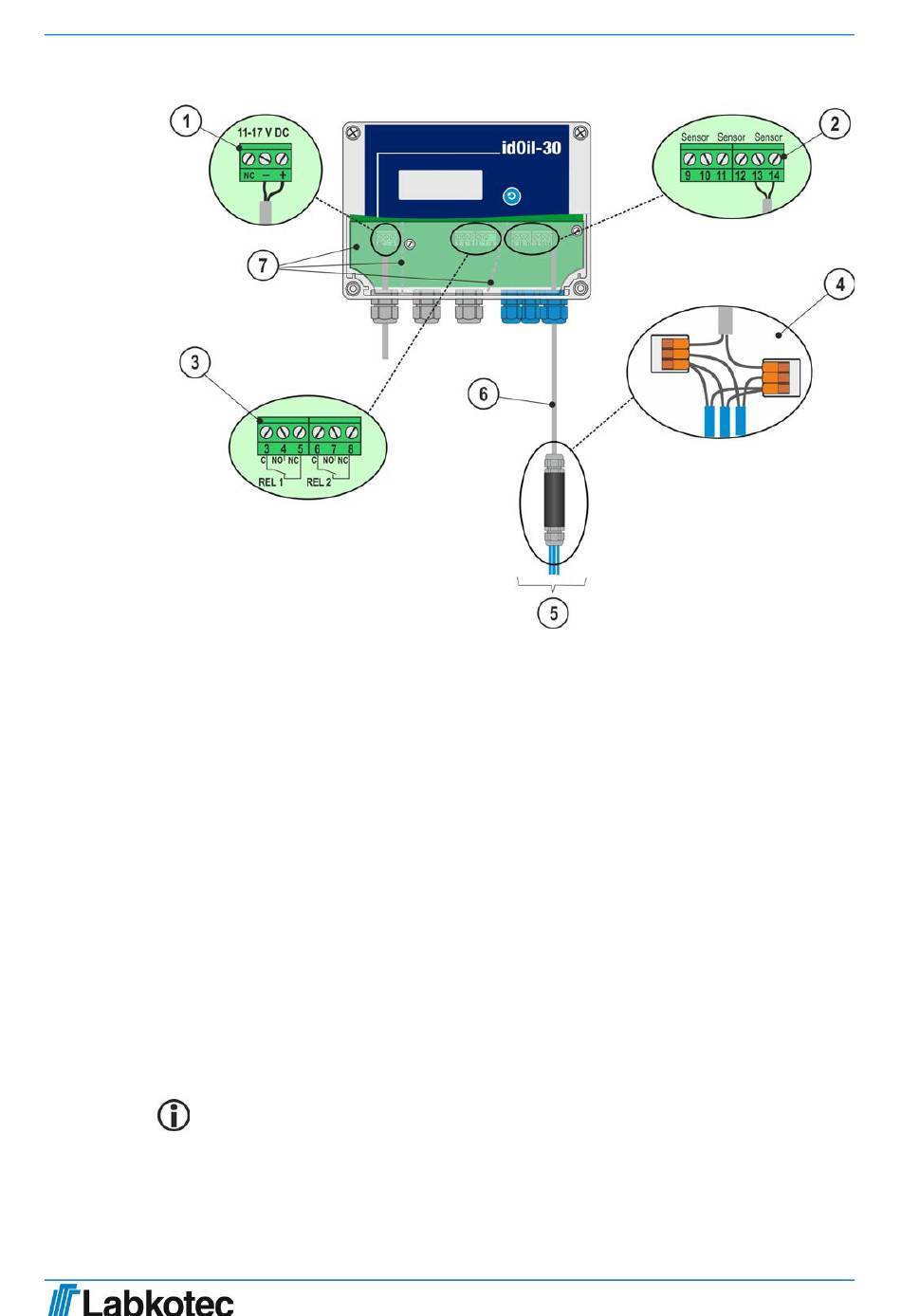

Figure 11. Connection with a three-sensor cable connector
5.2.

Explanations of connection diagrams

1 Supply voltage 11–17 V DC
(N.B. The device does not include a mains switch, see Section General safety
instructions)
-
+
Max. supply cable 2.5 mm
2 Sensor connectors
9
10
11
12
13
14
The sensor connection is a polarity-free digital bus, which means that it does not
matter which sensor terminal the wires are connected to.
= negative supply voltage
= positive supply voltage
2
(-, +) AWG 13.
= sensor 1, connection 1
= sensor 1, connection 2
= sensor 2, connection 1
= sensor 2, connection 2
= sensor 3, connection 1
= sensor 3, connection 2
