System 3000

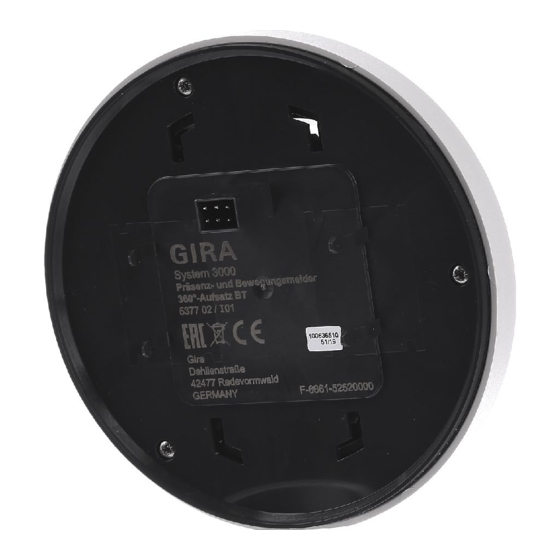

Presence and motion detector 360° top unit BT
Presence and motion detector 360° top unit BT
Order no.: 5377 02
Operating instructions
1
Safety instructions
Electrical devices may only be mounted and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Always disconnect before carrying out work on the device or load. In
so doing, take all the circuit breakers into account, which support dangerous voltages to the
device and or load.
Danger of electric shock. The device is not suitable for disconnection from supply voltage. De-
pending on the insert used, the load is not electrically isolated from the mains, even when the
device is switched off.
Do not press on the sensor window. Device can be damaged.
The device is not suitable for use as a burglar alarm or other alarm.
These instructions are an integral part of the product, and must remain with the end customer.
2

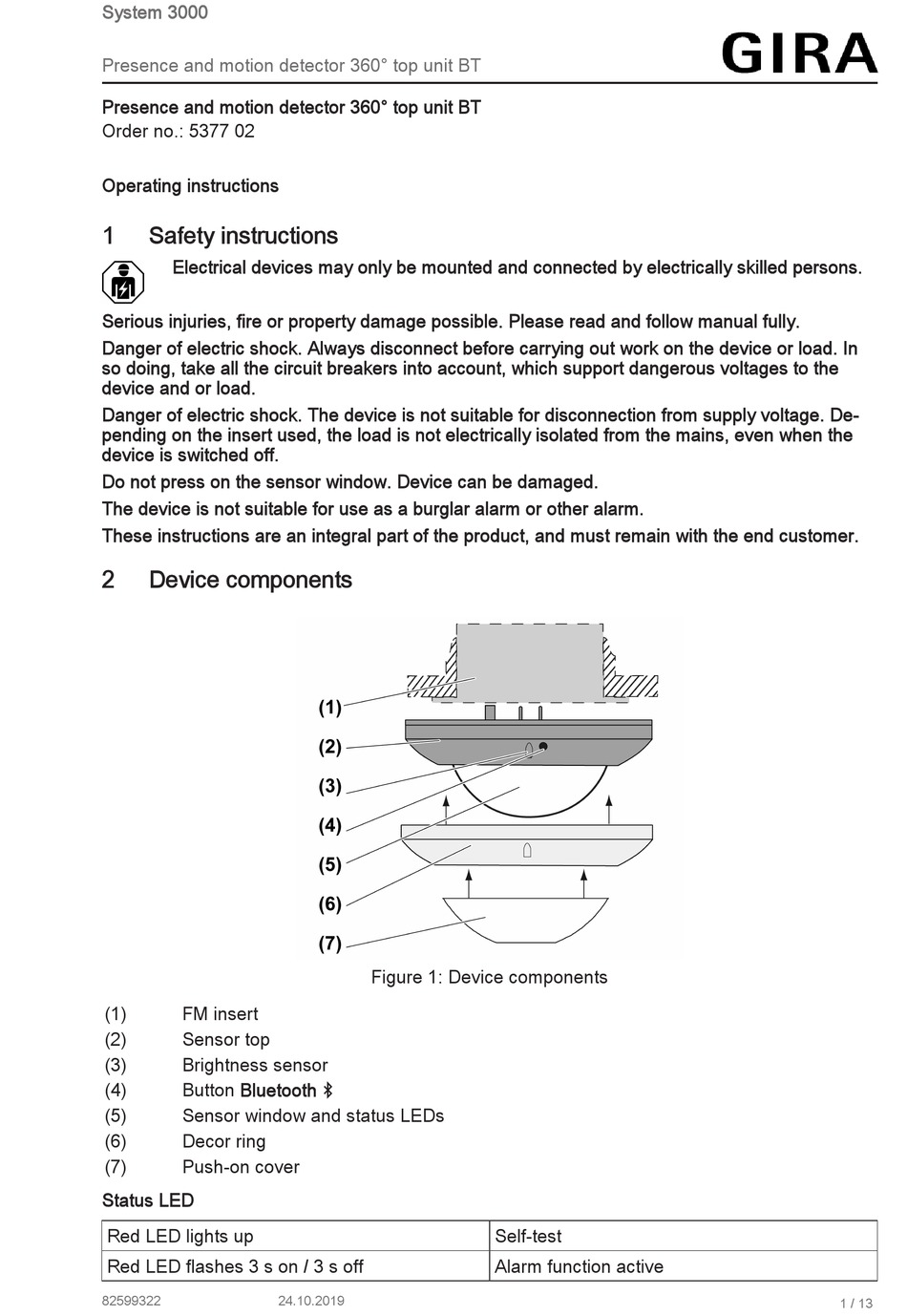

Device components
(1)
FM insert
(2)
Sensor top
(3)
Brightness sensor
(4)
Button Bluetooth Ʃ
(5)
Sensor window and status LEDs
(6)
Decor ring
(7)
Push-on cover
Status LED
Red LED lights up
Red LED flashes 3 s on / 3 s off
82599322
Figure 1: Device components
24.10.2019
Self-test
Alarm function active
1 / 13
