System 3000
Blind timer and timer Bluetooth
Blind timer and timer Bluetooth
Order no.: 5367 ..
User manual
1
Safety instructions
Electrical devices may only be mounted and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Always disconnect before carrying out work on the devise or load. In
so doing, take all the circuit breakers into account, which support dangerous voltages to the
device and or load.
These instructions are an integral part of the product, and must remain with the end customer.
2

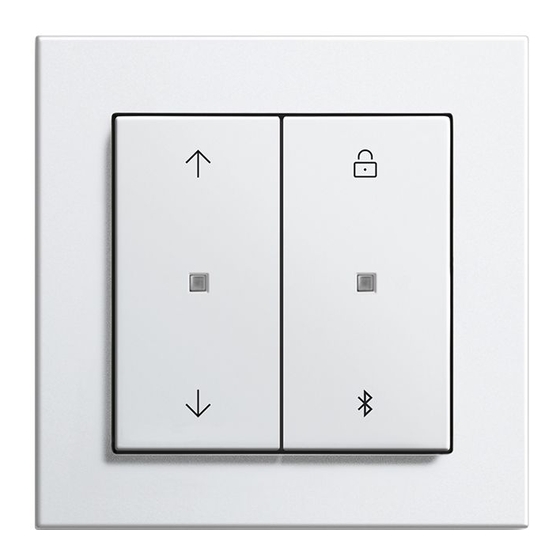

Device components
(1)
Insert
(2)
Cover frame
(3)
Insert operation button
ƞ = Blind/shutter up / light on, brighter
Ɵ = Blind/shutter down / light off, darker
(4)
Function button
Ɨ = Disabling function
Ʃ = activate Bluetooth coupling,
Activating / deactivating automatic operation
(5)
Function LED
Red = Disabling function active
Orange = Automatic operation deactivated
Blue = Bluetooth connection active
Flashing blue = Bluetooth coupling mode active
Flashing blue three times = Time is not set
(6)
Status LED
Green = Blind/shutter activated / light switched on
Red = Error message or reset
32598102
10864716
Figure 1: Device components
30.07.2018
1 / 9
