Gira System 3000 Manual

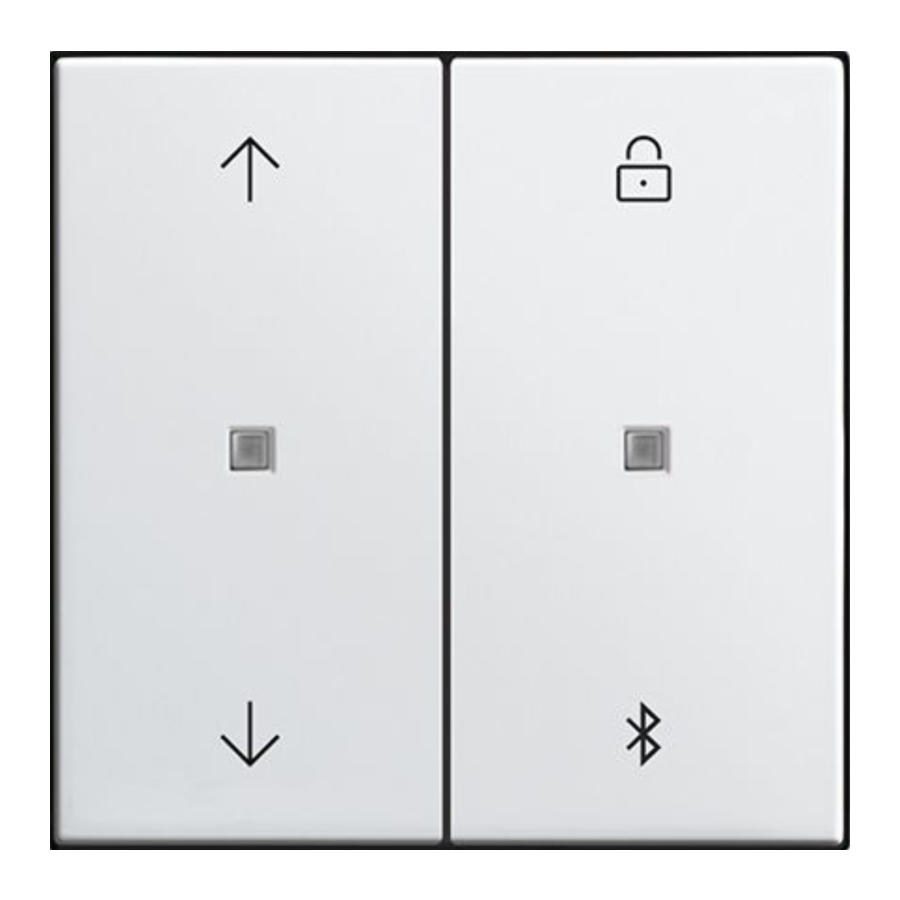

Device components

1. Insert
2. Cover frame
3. 1. Blind/shutter up/light on, brighter
   2. Blind/shutter down/light off, darker
4. 1. Disabling function
   2. Activate Bluetooth coupling, Activating/deactivating automatic operation
5. Function LED
6. Status LED

LED display

Priorities for the LED display:

• Red LED before green or orange LED
• Blue LED before red LED

Intended use

• Manual and time-controlled operation of e.g. Venetian blinds, shutters, awnings, lighting or fans
• Operation and programming with mobile end device (smartphone or tablet) via Bluetooth with app
• Operation of switching, dimming or Venetian blind insert, 3-wire extension or DALI Power control unit of System 3000

Default setting

• Switching times on a Venetian blind insert:
  ↑ 07:00, Mo - Thu
  ↓ 21:00, Mo - Thu
  ↑ 07:00, Fr
  ↓ 21:30, Fr
  ↑ 09:00, Sat
  ↓ 21:30, Sat
  ↑ 09:00, Sun
  ↓ 21:00, Sun
  Astro function is deactivated
• Automatic summer/winter time changeover is active

No switching times are available when operating on a switching/dimming insert.

Behaviour after a mains voltage failure
Voltage failure less than power reserve

• All data and settings are preserved
• Missed switching times are not performed later

Voltage failure greater than power reserve

• The blue LED flashes three times repeatedly until the time is automatically updated when connected with the app
• No switching operations are executed
• Switching times are preserved

Product characteristics

Functions directly on the cover

• Operation of blinds/shutters and lighting
• Evaluation of 2-wire or 3-wire extension, rotary extension, Bluetooth wall transmitter or push-button
• Activating/deactivating the disabling function (only 2-gang cover)
• Activating/deactivating automatic operation (only 2-gang cover)
• Running time and ventilation position of the blind/shutter can be saved
• Switch-on brightness or switch on to last brightness with dimming insert can be saved
• Activating/deactivating night mode (only 2-gang cover)

Functions via app

• Operation of blinds/shutters and lighting with status feedback
• Indication of current blind/shutter position, dimming position or switching state
• Programming of up to 40 individual switching times
• Venetian blind and slat positions or switching and dimming values can be saved at any switching time
• Possible to copy switching times from other devices
• Switching at sunrise and/or before sunset (Astro function)
• Astro time through position fixing
• Astro time shift can be set for each switching time
• Automatic summer/winter time changeover, can be switched off
• Call function enables a person to attract attention if required
• Random function allows switching times to be randomly executed in a time period of +/- 15 min.
• Disabling function
• Night mode
• Automatic date and time update when connecting with smartphone
• Code request for protection for time programs and configuration possible
• Save a ventilation position, blind/shutter running time, slat change-over time and change-over time for direction change
• Switch to inverse operation for Venetian blind inserts possible
• Maximum brightness and minimum brightness for dimming insert can be set
• Sun protection and twilight functions are possible via optional brightness sensor

Commissioning

Install app on a mobile end device
Requirement for operation via app is a mobile end device with Bluetooth interface, running the Android operating system or iOS.

• Download and install the Gira System 3000 app from the iTunes App Store (iOS) or the Google Play Store (Android).

Couple mobile end devices via Bluetooth
Precondition: The insert must be connected and switched off. The cover is placed on the insert and the mobile end device is close to the cover.

• Activate coupling mode:
  2-gang cover: Press the button (4b) for longer than 4 seconds.
  1-gang cover: With the load switched off, press the buttons (3a) and (3b) for longer than 4 seconds.
  The blue LED flashes slowly. The coupling mode is active for one minute.
• Start the Gira System 3000 app and search for device to be coupled. The "Gira Timer" cover is displayed in the app.
• Perform coupling.
  The coupling mode is automatically exited after successful coupling. The blue LED lights up to confirm an active connection.

A maximum of 8 mobile end devices can be coupled with a cover. When coupling the 9th device, the least used device will be deleted.
To be able to perform position movements of the blind/shutter on a Venetian blind insert, a reference movement is performed in the upper end position after the programming. This reference movement should not be stopped.

Operation of Venetian blind and shutters

All settings and operations are also possible via app.

Moving the blind/shutter

• Press button (3a) or (3b) for longer than one second.
  The blind/shutter moves in the desired direction to the end position or stops when the button is pressed again.

If a ventilation position has been saved, the blind stops in the ventilation position when moving down (see Saving the ventilation position).
When executing via a Bluetooth wall transmitter, the blind/shutter is activated as long as pressure is applied to the button.

Adjusting the slats

• Press the button (3a) or (3b) for less than one second.

Saving blind/shutter running time
To perform positioning movements, the blind/shutter running time has to be saved beforehand.
To save blind/shutter running time, the Venetian blind must be moved to the upper end position and the status LED (6) switch off automatically.

• From the top end position, press the button (3b) for longer than second. The blind/shutter moves in the lower end position direction.
• Press and hold down the buttons (3a) and (3b).
  The blind/shutter remains stopped, but continues to move after 4 seconds.
• As soon as the blind/shutter has reached the lower end position, release the buttons and press button (3b) within the next 4 seconds.
  The running time is saved. The blind/shutter moves back to the upper end position.

Saving the ventilation position
To save the ventilation position, the Venetian blind must be moved to the upper end position and the status LED (6) switch off automatically.

• From the top end position, press the button (3b) for longer than second. The blind/shutter moves in the lower end position direction.
• Press and hold down the buttons (3a) and (3b).
  The blind/shutter remains stopped, but continues to move after 4 seconds.
• As soon as the desired ventilation position has been reached, release the buttons and press the button (3a) within the next 4 seconds.
  The ventilation position is saved. The blind/shutter moves back to the upper end position.

If the ventilation position is saved again, the old value is overwritten.

Operation of lighting

All settings and operations are also possible via app.

Switching the light

• Press button (3a) or (3b) for less than 0.4 seconds.

With a dimming insert, the light switches to the brightness that was last set or a saved brightness.

Switch light on with minimum brightness

• Press the button (3b) for longer than 0.4 seconds.

Adjusting the brightness

• Press button (3a) or (3b) for longer than 0.4 seconds.

Setting the colour temperature

Only with DALI Power control unit.

• In the switched-on state, press button (3a) or (3b) twice at the top or bottom within 0.4 seconds (double-click). The light switches off and on again. The device is in colour temperature mode.
• Long press button (3a) or (3b) to change the colour temperature.

After a further double click, the device switches back to normal operation and signals this with a short switching off and on again. After one minute without operation, the device also returns to normal operation.

Saving the switch-on brightness/colour temperature

• Adjusting the brightness
• Set colour temperature (only DALI Power control unit)
• Press the buttons (3a) and (3b) for longer than 4 seconds.
  Switch-on brightness/colour temperature is saved. For confirmation, the light is switched off briefly and switched on again.

Deleting the switch-on brightness/colour temperature

• Press button (3) briefly: Light switches on with the saved switch-on brightness and colour temperature.
• Without changing the brightness, press buttons (3a) and (3b) for longer than 4 seconds.
  The switch-on brightness has been deleted.
  Switching on takes place at the last brightness/colour temperature value set. For confirmation, the light is switched off briefly and switched on again.

Activate functions

Activating/deactivating automatic operation (only 2-gang cover)

• Press button (4b) briefly.
  The automatic mode is activated/deactivated.
  When automatic operation is deactivated, the function LED (5) turns orange. Saved travelling times are not executed.

Activating/deactivating the disabling function (only 2-gang cover)
The disabling function disables extension operation and operation via the app and deactivates automatic operation. Manual operation using buttons (3a) and (3b) continues to be possible.
With Venetian blinds, extension operation in the "UP" direction (wind alarm) continuous to be possible.

• Press the button (4a) for longer than 4 seconds.
  The disabling function is activated or deactivated.
  The function LED (5) turns red if the disabling function is active.

The disabling function can also be set with the app (parameter list). With the 1gang cover, the status LED (6) is illuminated when the disabling function is active.

Activating/deactivating night mode (only 2-gang cover)
In night mode, the status and function LEDs are not permanently lit, but only for 5 seconds after a button is pressed.

• Press the buttons (4a) and (4b) for longer than 4 seconds.
  Night mode is activated: The function LED turns red for 3 seconds.
  Night mode is deactivated: The function LED turns green for 3 seconds.

With the 1-gang and 2-gang covers, the night mode can be set with the app (parameter list).

Call function
The function enables a person to attract attention if required. A call can be triggered via a 2-wire extension, Bluetooth wall transmitter or push-button.
Precondition: The call function has been activated via the app.

• Press the button of the extension.
  Light flashes (1 second on, 1 second off) until the call is acknowledged by actuating any button on the device.

Resetting the device to the factory setting

• Press the buttons (3a) and (3b) during the first 2 minutes after switching on the mains voltage for longer than 20 seconds until the red status LED flashes quickly.
• Release buttons (3a) and (3b) and press briefly once again within 10 seconds. The red status LED flashes more slowly for approx. 5 seconds.
  The device is reset to default setting (default setting). The blue LED flashes three times to indicate that the time is not set.
  On a Venetian blind insert, a reference run to the upper end position is performed.

After resetting the device to the default setting, it has to be removed from the app.
On iOS equipment, the device also has to be removed manually from the list of paired Bluetooth devices (Settings/Bluetooth). Otherwise, re-pairing will not be possible.

Information for electrically skilled persons

Mortal danger of electric shock
Disconnect the device. Cover up live parts.

Mounting the device
Switching, dimming or Venetian blind insert or 3-wire extension are mounted and connected properly (see instructions of the relevant inserts).

• Fit the cover with frame on the insert.
• Switch on mains voltage.

If the status LED (6) flashes red three times at repeated intervals, the cover was previously connected to another insert. To enable operation again, either place the cover onto the correct insert or press the buttons (3a) and (3b) for longer than 4 seconds.

Technical data

Parameter list

Adjustable parameters via app
Depending on the insert, the following parameters can be changed with the app.

Settings for switching/dimming and Venetian blind inserts

Settings for all switch and dimming inserts

Settings only for dimming inserts, DALI Power control unit

Settings only for switch inserts

Settings only for 2-channel switch inserts

Settings only for venetian blind inserts

Settings with optional brightness temperature sensor

Safety instructions

Electrical devices may be mounted and connected only by electrically skilled persons.
Serious injuries, fire or property damage are possible. Please read and follow the manual fully.
Danger of electric shock. Always disconnect before carrying out work on the device or load. In so doing, take all the circuit breakers into account, which support dangerous voltages to the device and or load.
These instructions are an integral part of the product, and must remain with the end customer.
