EVAL-AD4114SDZ
EVALUATION BOARD SOFTWARE
SOFTWARE INSTALLATION PROCEDURES
The EVAL-AD4114SDZ evaluation kit includes a link to the
software that must be installed before using the EVAL-
AD4114SDZ.
The following two installations are required:
•
AD411x Eval+
software installation
•
SDP
drivers installation
The
AD411x Eval+
evaluation software and drivers must be
installed before connecting the EVAL-AD4114SDZ and
board to the USB port of the PC to ensure that the PC correctly
recognizes the evaluation system.
Installing the
AD411x Eval+
To install the
AD411x Eval+
1.
With the
SDP
board disconnected from the USB port of
the PC, download and unzip the
installer file from the EVAL-AD4114SDZ product page.
2.
Double-click the setup.exe file to begin the evaluation
board software installation. The software then installs to
the following default location: C:\Program Files
(x86)\Analog Devices\AD411x Eval+\.
3.
A dialog box appears asking for permission to allow the
program to make changes to the PC. Click Yes (see
Figure 3).

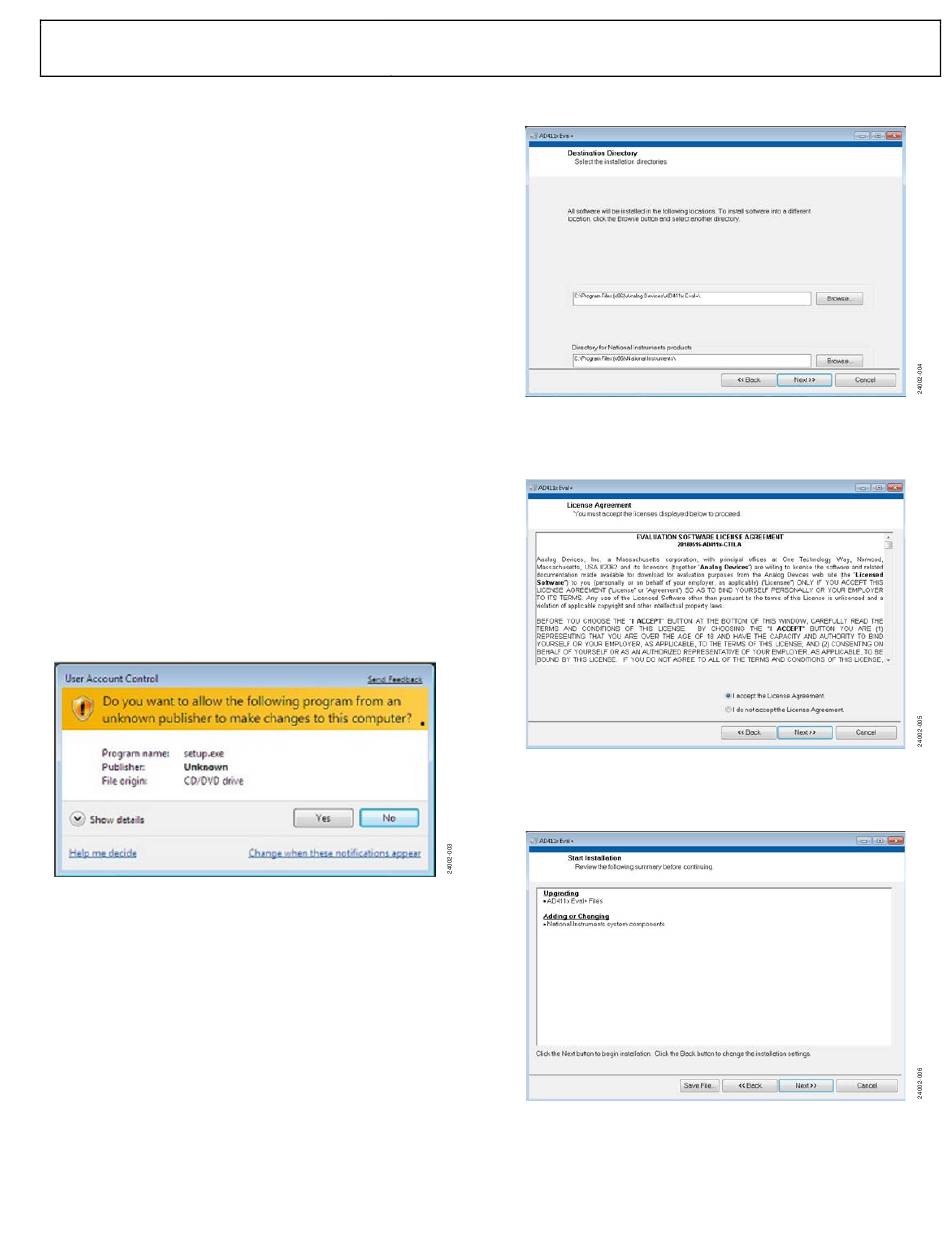

Figure 3. Granting Permission for the Program to Make Changes to the PC
4.
Select a location to install the software and then click Next.
Figure 4 shows the default locations displayed when the
dialogue box opens, but another location can be selected by
clicking Browse.
User Guide
SDP
Software
software, take the following steps:
AD411x Eval+
software
Figure 4. Selecting the Location for Software Installation
5.
A license agreement appears. Read the agreement, select I
accept the License Agreement, and click Next.
Figure 5. Accepting the License Agreement
6.
A summary of the installation displays. Click Next to
continue.
Figure 6. Reviewing a Summary of the Installation
Rev. 0 | Page 7 of 24
UG-1819
