PRO 48 Installation

Anti-Tip Bracket Installation
To prevent the PRO 48 from tipping forward and
provide a stable installation, the unit must be secured
in place with the anti-tip bracket provided with the unit.
IMPORTANT NOTE: Placement of the anti-tip bracket is
critical to a stable installation. Failure to properly position
the anti-tip bracket will prevent it from engaging the unit.
The anti-tip bracket must be installed exactly 26" (660)
from the front of the face frame of the unit to the back of
the anti-tip bracket. Also, the centering line on the lower
flange of the anti-tip bracket must be centered in the
rough opening. Make sure the anti-tip bracket is installed
on a solid base. Refer to the illustration below.
To properly secure the anti-tip bracket for a stable installa-
tion, use all anti-tip bracket hardware as instructed for
wood or concrete floors.

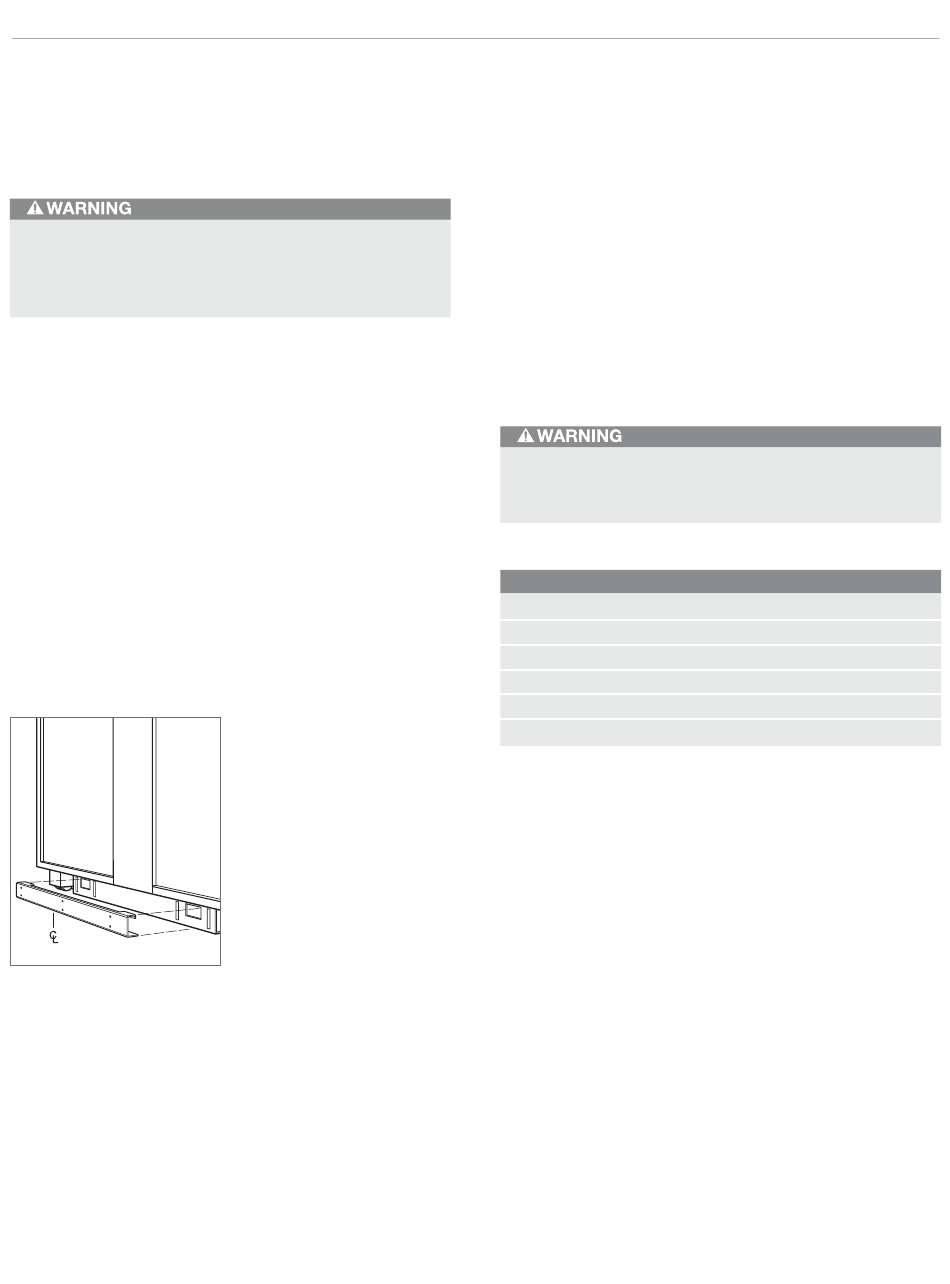

Anti-tip bracket.
IMPORTANT NOTE: For either wood or concrete floor
applications, if the wood screws do not hit a wall stud in
any of the upper holes on the anti-tip bracket, use the
1
provided #8–18 x 1 / " wood screw, #12 flat washer and
4
nylon zip-it wall anchor in its place.
IMPORTANT NOTE: In some installations the subflooring
or finished floor may necessitate angling the screws used
to fasten the anti-tip bracket to the back wall.
Make sure there are no electrical wires or plumbing in
the area which the screws could penetrate.
Anti-Tip Bracket Hardware
1 Anti-tip bracket
1
12 #12 x 2 / " PN HD wood screws
2
3 3
3 / " x 3 / " Trubolt anchors
8 4
12 #12 flat washers
1
3 #8–18 x 1 / " AB PH HD screws
4
3 Nylon zip-it wall anchors
8
