Summary of Contents for Sub-Zero PRO 48
- Page 1 P R O NSTALLATION NSTRUCTIONS...
-
Page 2: Table Of Contents
Check our website, subzero.com, for the most up-to-date specifications. ® SUB-ZERO is a registered trademark of Sub-Zero Freezer Company, Inc. As you follow these instructions, you will notice WARNING and CAUTION symbols. This blocked information is important for the safe and efficient installation of Sub-Zero equipment. -
Page 3: Pro 48 Installation Recommendations
I N S TA L L AT I O N R E C O M M E N D AT I O N S The importance of the Sub-Zero PRO 48 installation cannot be overemphasized. The installation procedure should be completed by a qualified installer. -
Page 4: Pro 48 Overall Dimensions

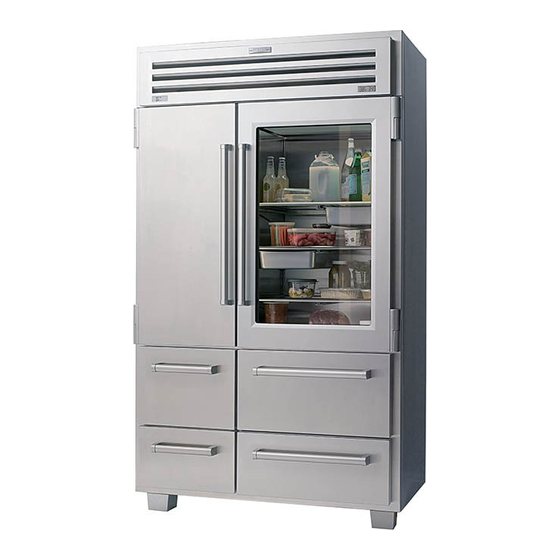

(1219) IMPORTANT NOTE: Model 648PROG features a glass door on the upper refrigerator compartment and Model 648PRO has a solid door. All overall dimensions and installation dimensions are identical for each of the PRO 48 units. " (606) BEHIND FACE FRAME "... -
Page 5: Pro 48 Installation Specifications
I N S TA L L AT I O N S P E C I F I C AT I O N S The PRO 48 can be used free-standing or installed as a standard or flush built-in applica- tion. For standard built-in installations, the face frame of the unit will extend 2"... -
Page 6: Pro 48 Installation Instructions
Locate the electrical outlet within the shaded area indicated in the Installation Speci- fications illustration on the previous page. The PRO 48 is equipped with a power supply cord with a 3-prong grounding plug, which must be plugged into a mating 3-prong grounding-type wall receptacle. - Page 7 P R O 4 8 I N S T A L L A T I O N I N S T R U C T I O N S W AT E R F I L T E R B Y P A S S M O D E If you choose not to use the water filtration system, the system can be placed in water filter bypass mode by removing the water filter...
- Page 8 I N S TA L L A T I O N I N S T R U C T I O N S A N T I - T I P B R AC K E T To prevent the PRO 48 from tipping forward and provide a stable installation, the unit must be secured in place with the anti-tip bracket shipped with the unit.
- Page 9 P R O 4 8 I N S T A L L A T I O N I N S T R U C T I O N S C O N C R E T E F L O O R A P P L I C AT I O N S Use the three "...
- Page 10 Carefully move the PRO 48 into place near the rough opening and move it off of the appliance dolly. The PRO 48 is equipped with rollers, so it can be moved into position more easily. The PRO 48 is very heavy – 885 lbs (401 kg) or 900 lbs (408 kg) –...
- Page 11 PRO .46 " K I CK P L A TE...
- Page 12 P R O 4 8 I N S TA L L A T I O N I N S T R U C T I O N S D O O R A D J U S T M E N T Check to make sure that both doors are properly adjusted.
- Page 13 Dimensions in parentheses are in millimeters unless otherwise specified.
-
Page 14: Pro 48 Installation Checklist
Locator section of our website, subzero.com. 9 0 D E G R E E The doors of PRO 48 models open to 135 degrees. An optional 90˚ door stop kit is avail- able through your Sub-Zero dealer. To obtain local dealer information, visit the Locator section of our website, subzero.com. -
Page 15: Pro 48 Service Information
Call your Sub-Zero authorized service center; contact your dealer or the Sub-Zero Customer Service Department, P. O. Box 44130, Madison, WI 53744-4130 or call 800-222-7820. You may also check the service center locator on our website, subzero.com. - Page 16 S U B - Z E R O F R E E Z E R C O M PA N Y, I N C . P. O . B O X 4 4 1 3 0 M A D I S O N , W I 5 3 7 4 4 - 4 1 3 0 8 0 0 - 2 2 2 - 7 8 2 0 S U B Z E R O .
