The TX3-IP Module ribbon cable connects to the P3 connector on the controller

board. It has an RJ-45 connector that connects to the Ethernet network using a

standard Ethernet cable. See Figure 14.

For a description on how to install the TX3-IP Module, see LT-1161 MD-921 IP

Module Installation Instructions.

Note:

2.6

Connect the Power and Ground

Attention: Connect all 2012E boards and elevator controller wires to the

Connect the included 16 AWG wire to the earth ground.

Elevator Restriction System Installation and Operation Manual

LT-9940

IP Module Ribbon Cable

RJ-45

Connector

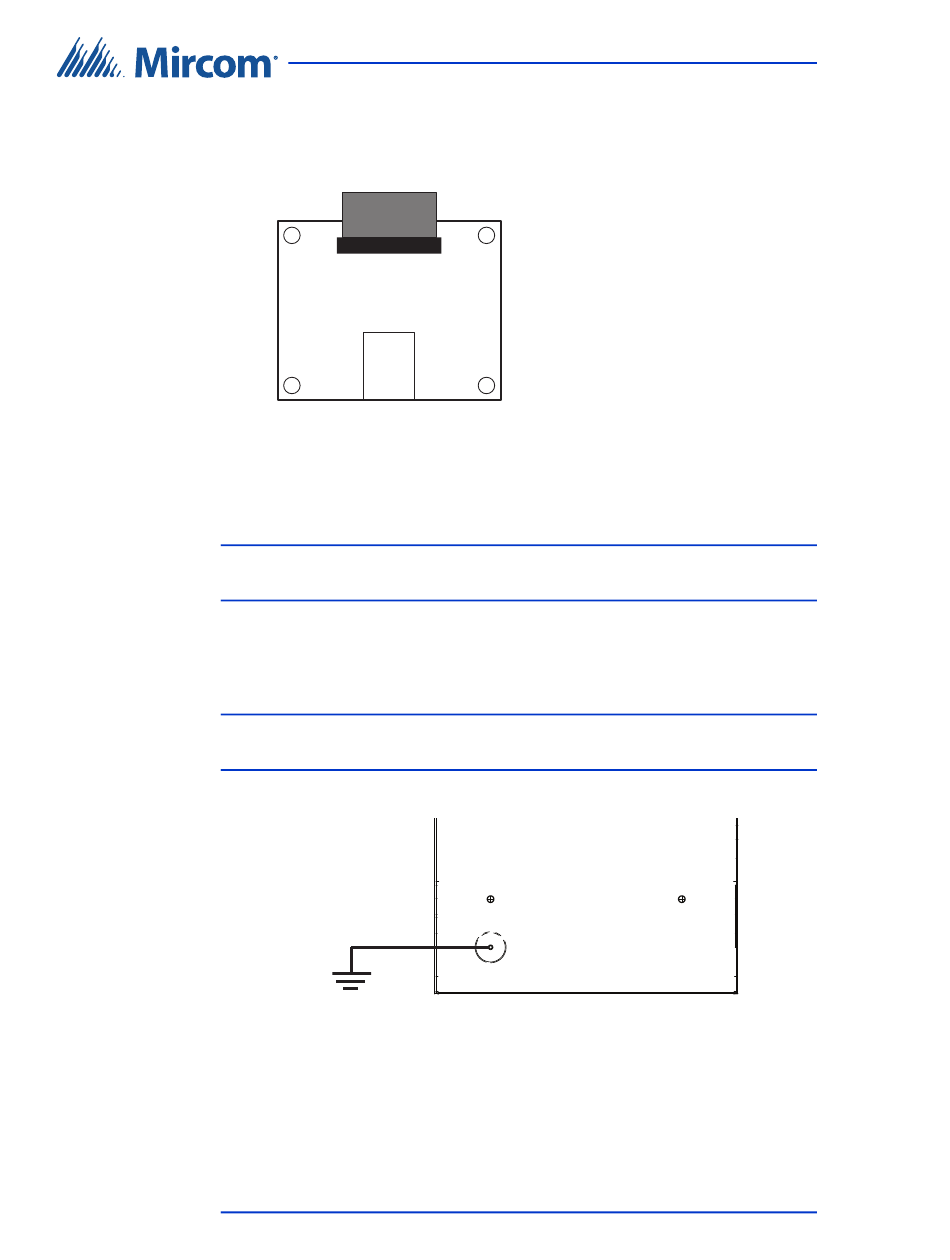

Figure 14.

IP Module Data and Ethernet Connectors

The TX3-IP Module can only be installed on models that end

with "-A" (for example, TX3-ER-8-A).

ERU before connecting the power.

Earth Ground

(16 AWG)

Figure 15.

Earth Ground

Installing the Elevator Restriction Unit

Version 1.2
